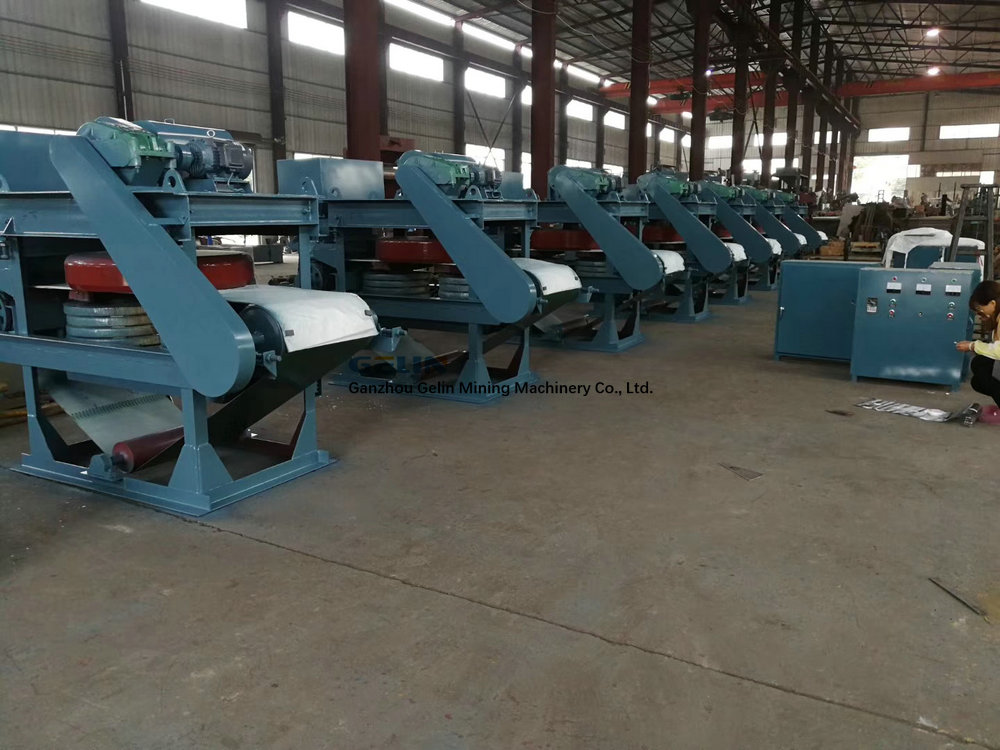

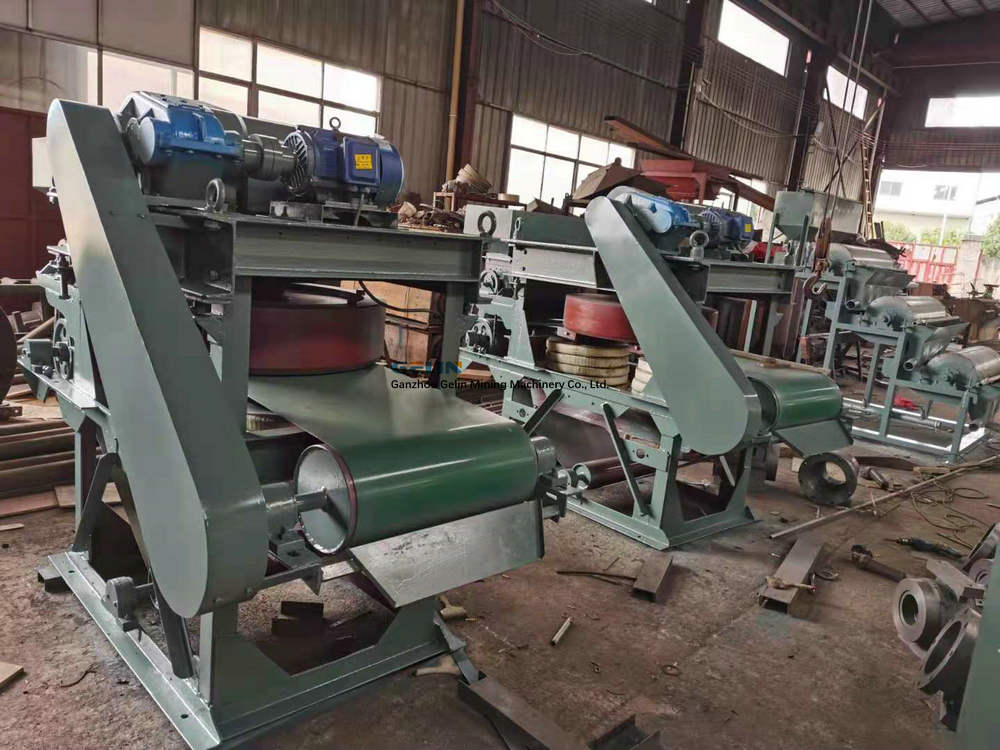

1).Single discs electromagnetic separator( 1 PC disc magnetic separator)
885 type
Capacity:1-1.8t/h
Particle size of processing:<6mm
Complete power consumption:3kw
Overall size:2980x1830x1850mm
Magnetic field intensity: maximum18000GS
( Electromagnetic, intensity can be adjusted).

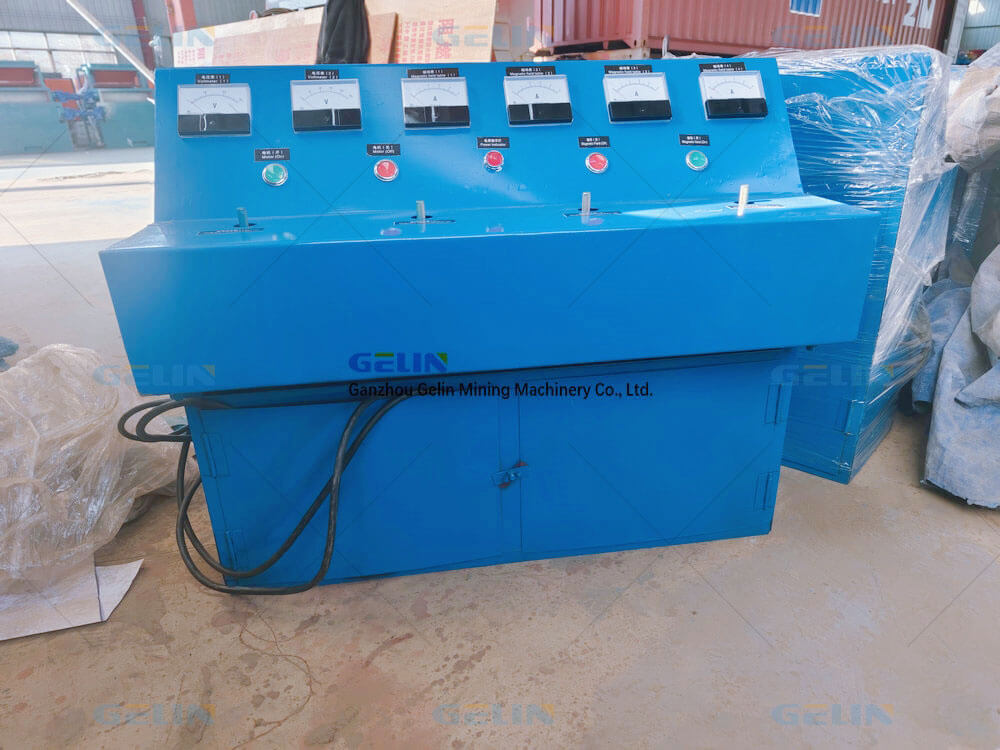

Electric control panel box included.

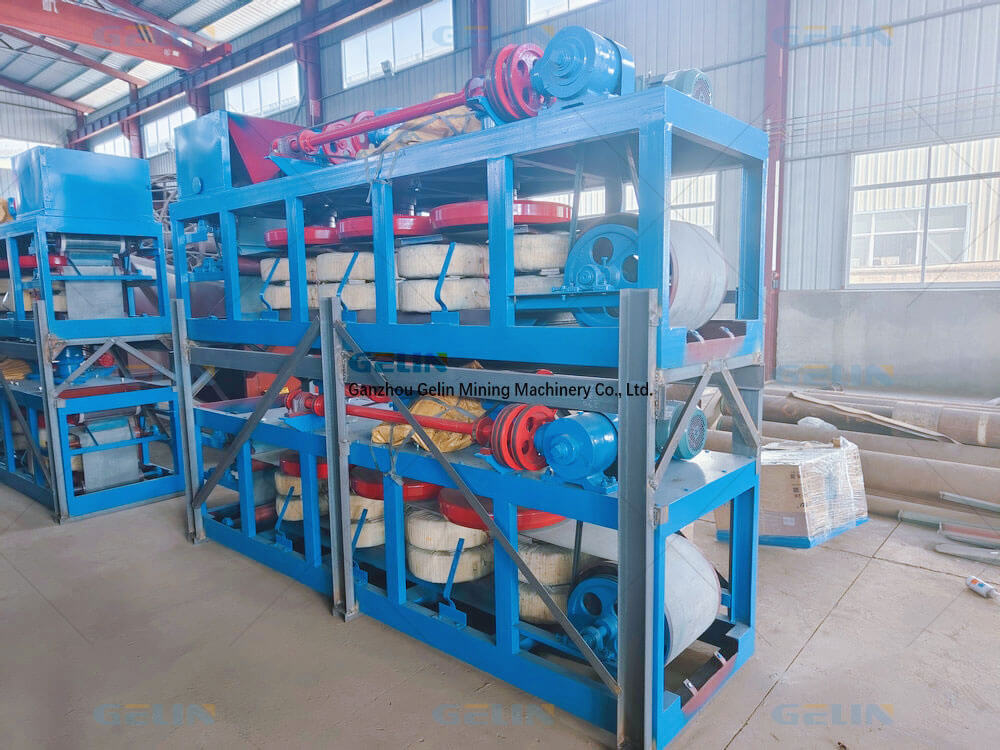

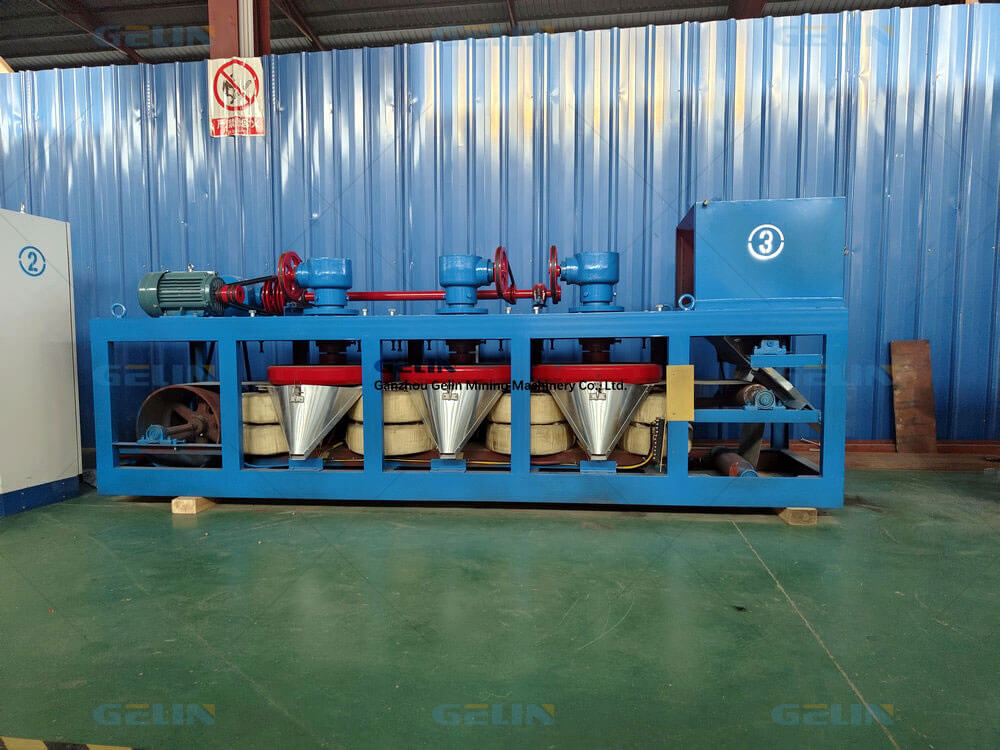

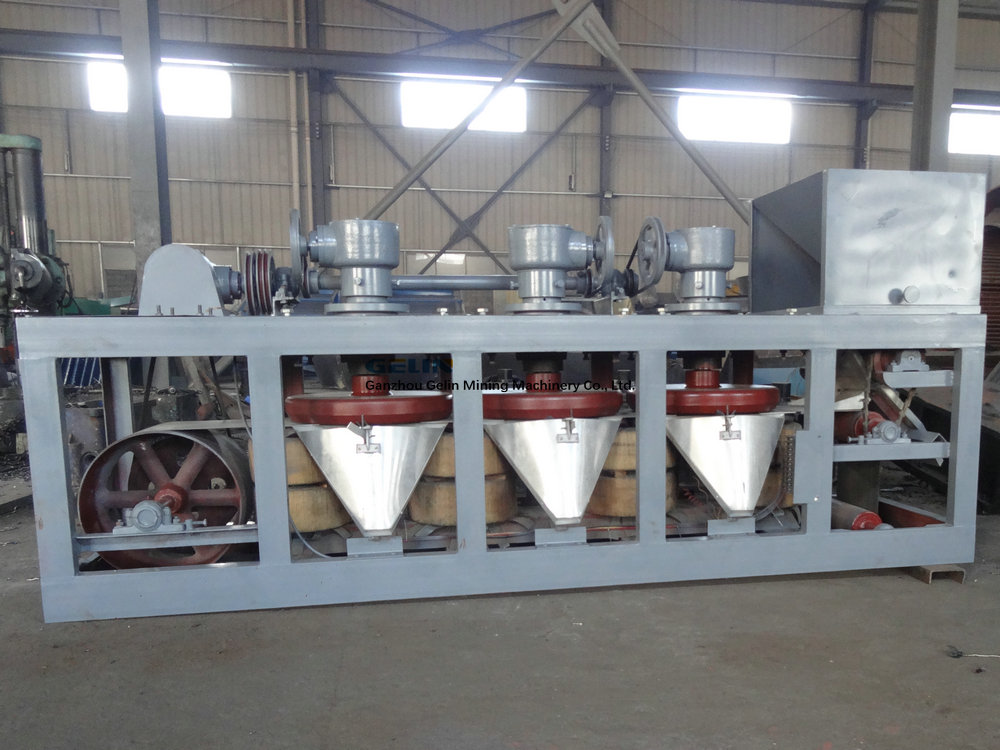

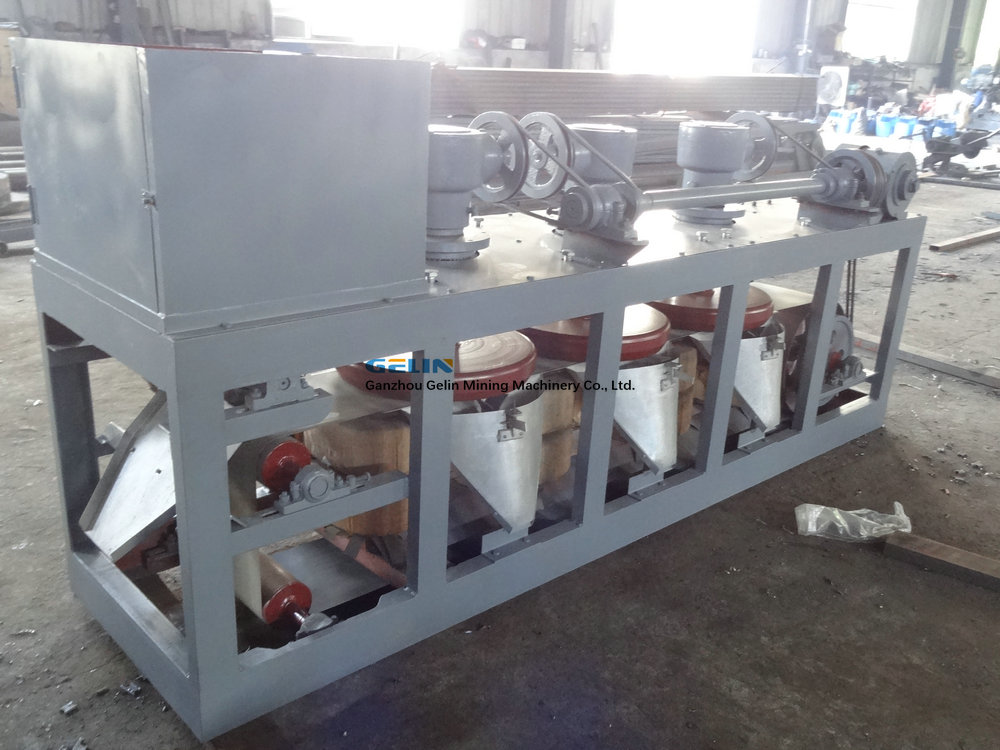

2).Three discs electromagnetic separator( 3 PC disc magnetic separator)

Three-disc electromagnetic separator is sorting mineral size less than 2-3mm of weakly magnetic minerals and rare metal ore selection, it is a very important mineral processing equipment. Three-disc electrmagnetic separator have 3 models.
Three-disc electromagnetic separator is for a variety of strong magnetic minerals mixed ore separation, according to the difference of magnetic minerals, can achieving efficient separation of minerals can form different intensity magnetic disk by adjusting the excitation current levels, can also be adjusted each level disk and sensing distance between dressing grain is to get different magnetic induction intensity, reaching a one-time separation of various minerals. This device is widely used in ilmenite, monazite, tungsten, tin, tantalum, iron ore and other minerals with magnetic and non-magnetic dry sorting.

Get A Quote
Product Details

Features
The equipment have reasonable structure, small footprint, simple operation and maintenance, its one-time separate variety of ferromagnetic minerals, weakly magnetic, non-magnetic and so on. Operations can be adapted to water-lack mines.


Parameter

Model
Unit
3PC-500
3PC-600
3PCX600
Magnetic intensity
Hauteur
Distance to beltsurface 2mm
Disk teeth 1700
Distance to beltSurface 2mm
Disk teeth 1800
Distance to belt 2mm
Disk teeth 2000
Number of
magnetic disk

Piece
3
3
3
Diameter of
magnetic disk
mm
500
600
600
Revolution of magnetic disk
r/min
25-40
22-38
22-32
Power supply
V
380
380
380

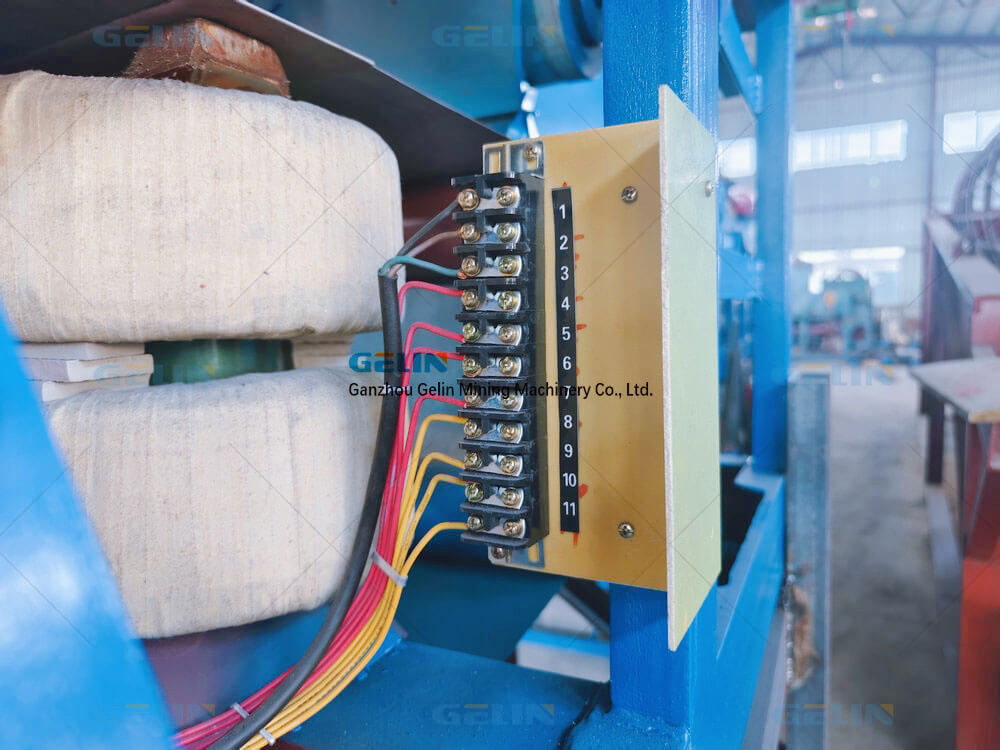

Exciting coil
Unit
4
4
4
Matching motor
kw
0.75
1.5
1.5
Exciting power
kw
1.5
1.6
1.6
Coil temperature
rise
°C
65
65
65
Rated currentof coil
A
1.1-1.8
1.2-1.9
1.2-2.2
Duty rating

Continuous
Continuous
Continuous
Feed width
mm
210
300
300
Feed size
mm
≤2
≤2
≤2
capacity
kg/h
100-500
120-800
80-800
Overall Size
mm
2800×800×1220
3200×870×1160
3150×900×1250
Weight
kg
1900
2200
2300
