Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant
Mobile Diamond Washing Plant

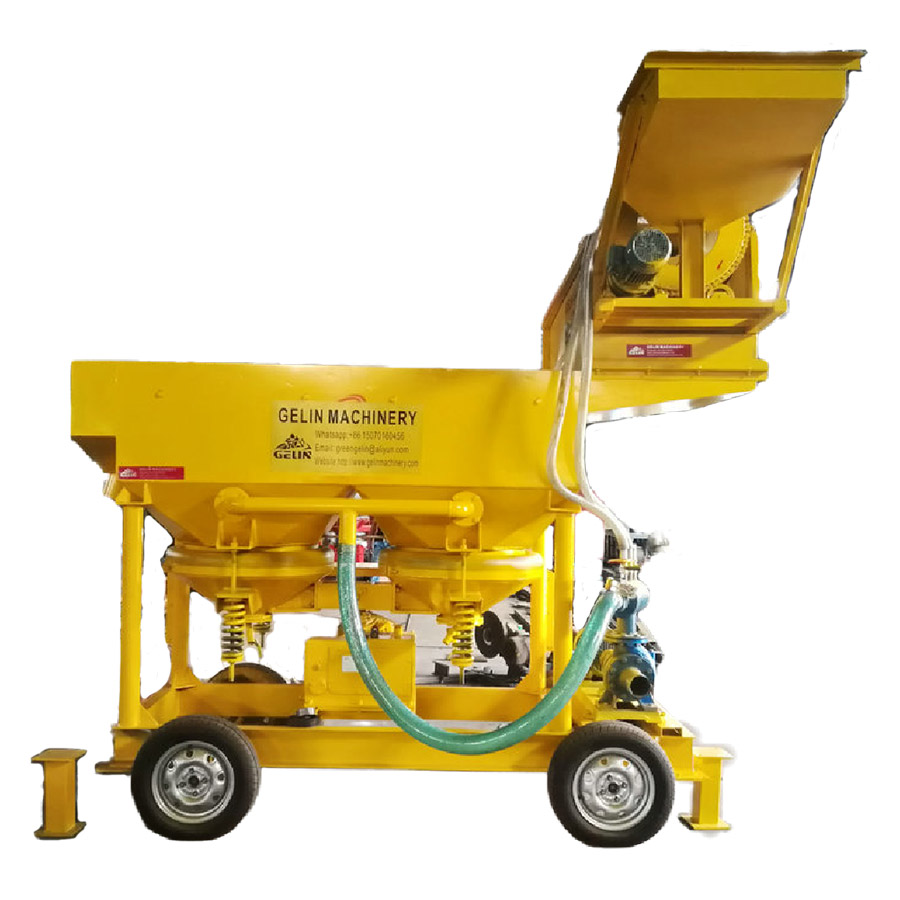

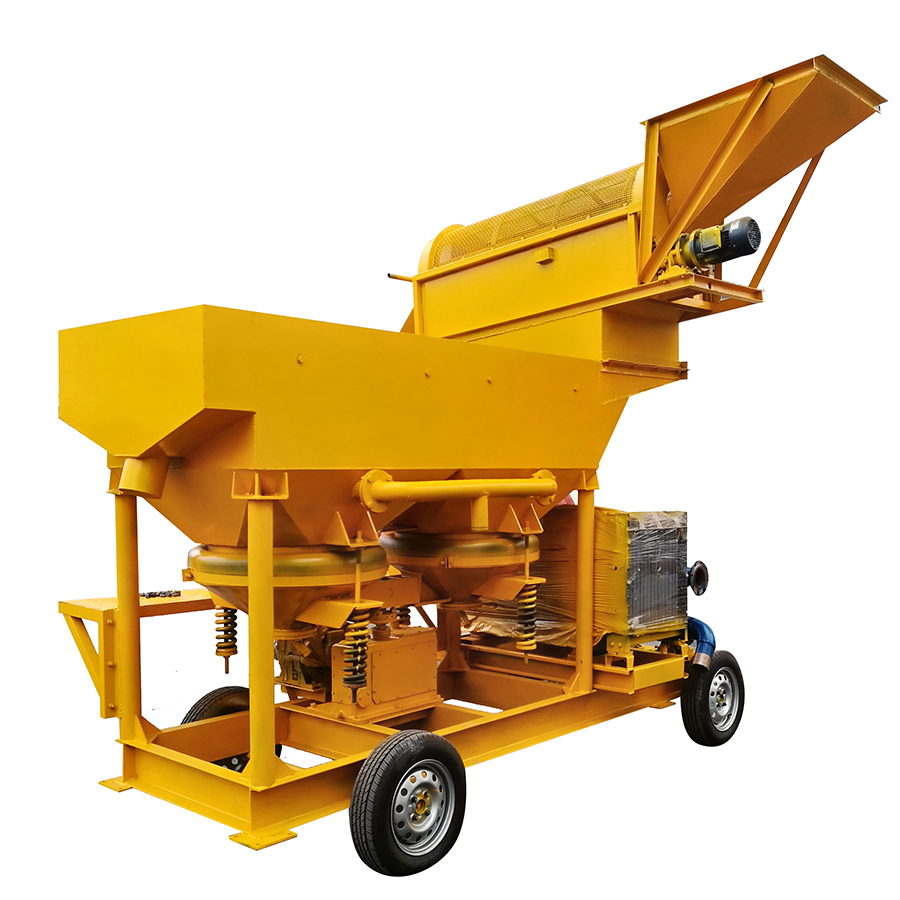

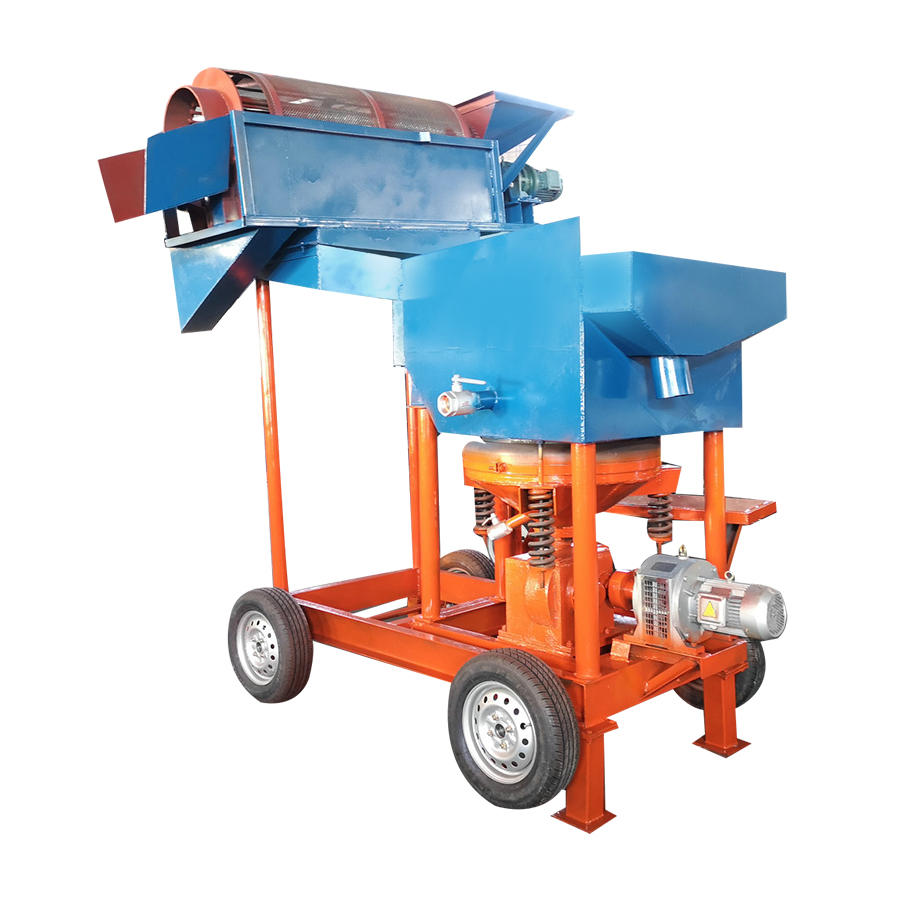

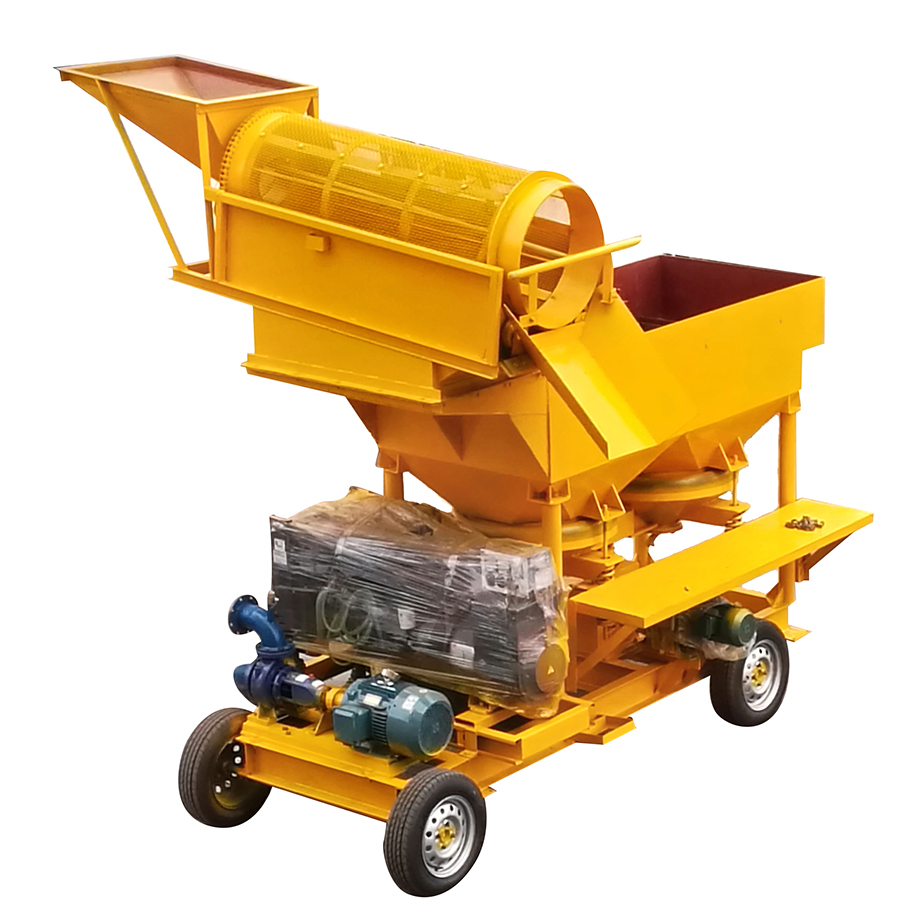

This mobile diamond washing plant is equipped with hopper, trommel screen, jig machine, water pump and sluice box for optional. It widely used for mineral separating, especially in the alluvial, river sand, placer, clay deposit and gravel sand gold & diamond concentration.

Get A Quote
Product Details

Production application:

---diamond, gold mining plant for alluvial gold, placer gold, gold sand

--- gold processing plant for river dirt gold with clay and diamond mine

--- working together with small sluice box or small shaking table for gold recovering.


Advantages:

1. Modular installation and Turn-key operations;

2. Mobile type can easily move to other place;

3. Moter or diesel optional

4. Side of the machine equipped with anti-skidding walkcat for worker stand and easy checking working status;

5. Different capaciy for different customers' request;

6. Sluice boxes available upon request at an additional cost.


Parameter:

Gold & Diamond Wahing Plant
Item nameTechnical dataRemark
Feeding hopperGrizzly bar optional (block out the big size rocks)
TrommelDrum diameterф500/600/800/1000mmAvailable to choose
Length1000/1500/2000mmAvailable to choose
Screen Size2,3,5,6,8,10,20mmAvailable to choose
LayerSingle/Double layerAvailable to choose
Motor1.5-4 KWAvailable to choose
Jig machineCharmber shapeRectangle/Trapezoid available
Charmber area0.57-4.86㎡ available according to different demand
Feeding size<30mm available according to different demand
Power3 KW1.5-7.5kw available to choose
Dimension3225mmx1550mmx2050mmother sizes available to choose
Water Pump5-18.5 KWAvailable to choose
Sluice box (Optional)Width1000mm
Length5000/6000mmAvailable to choose
Capacity5-60 TPHAvailable to choose
