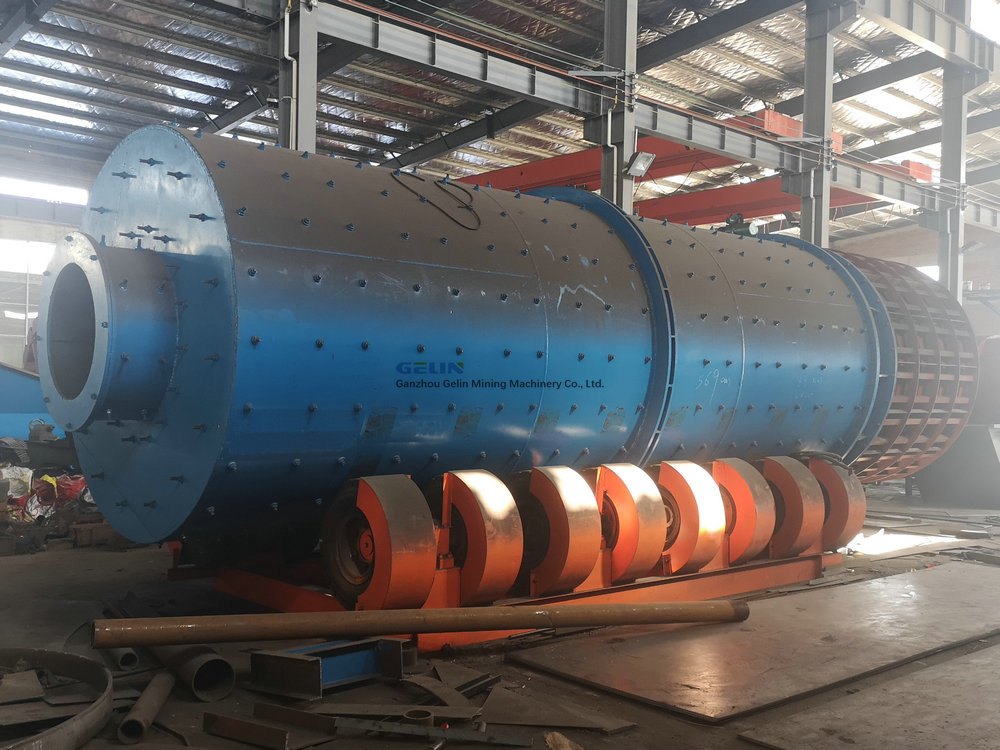

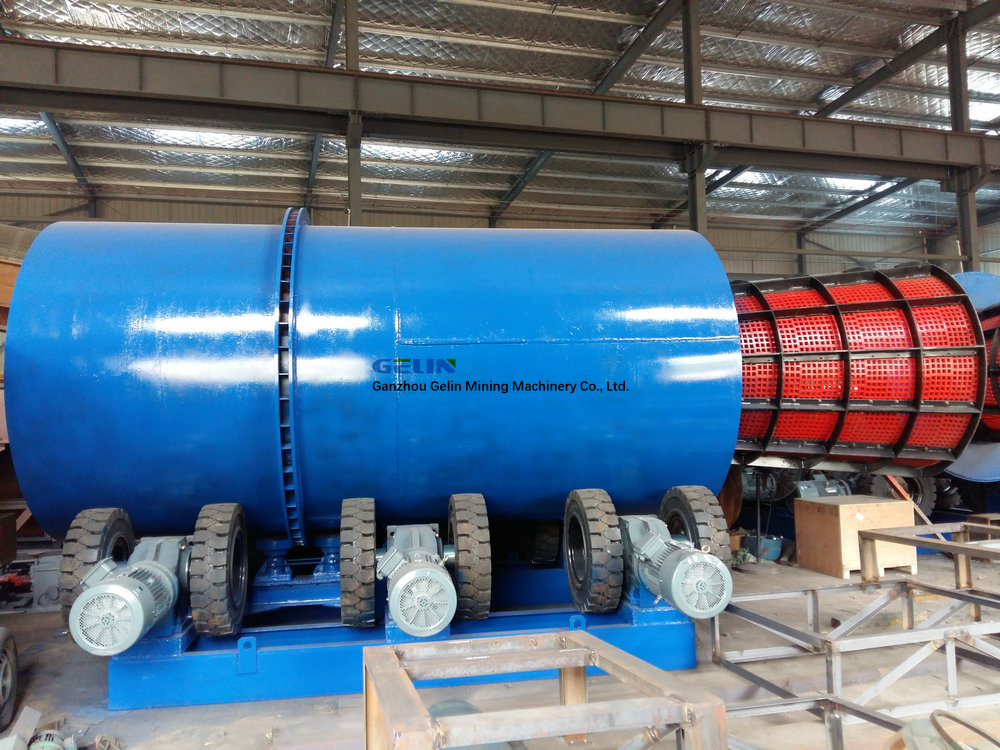

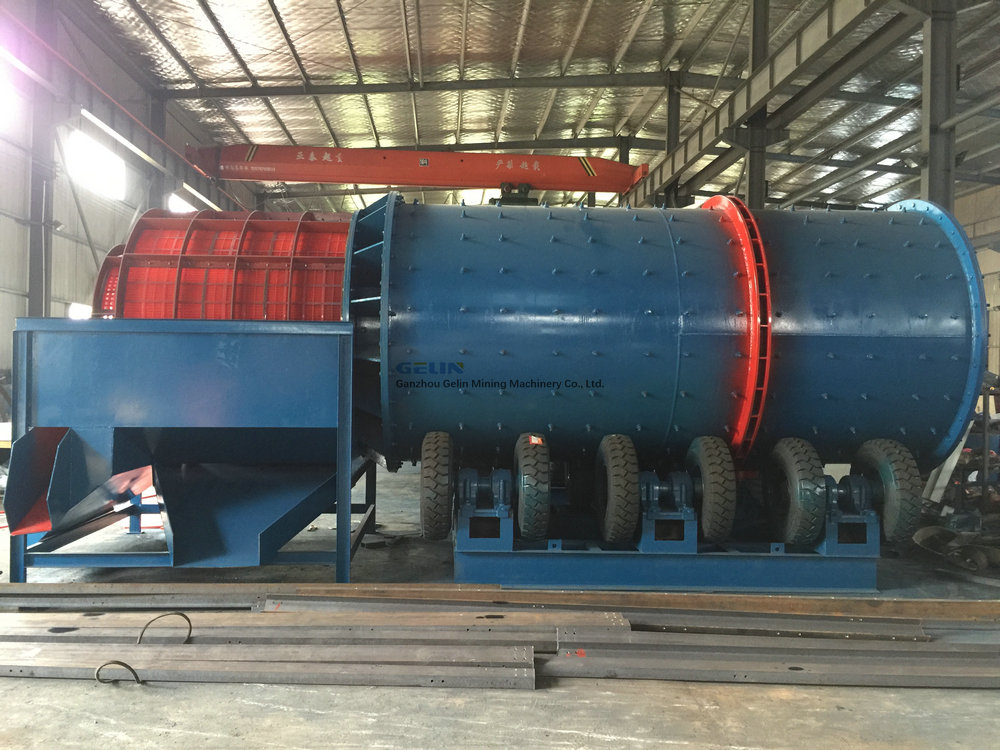

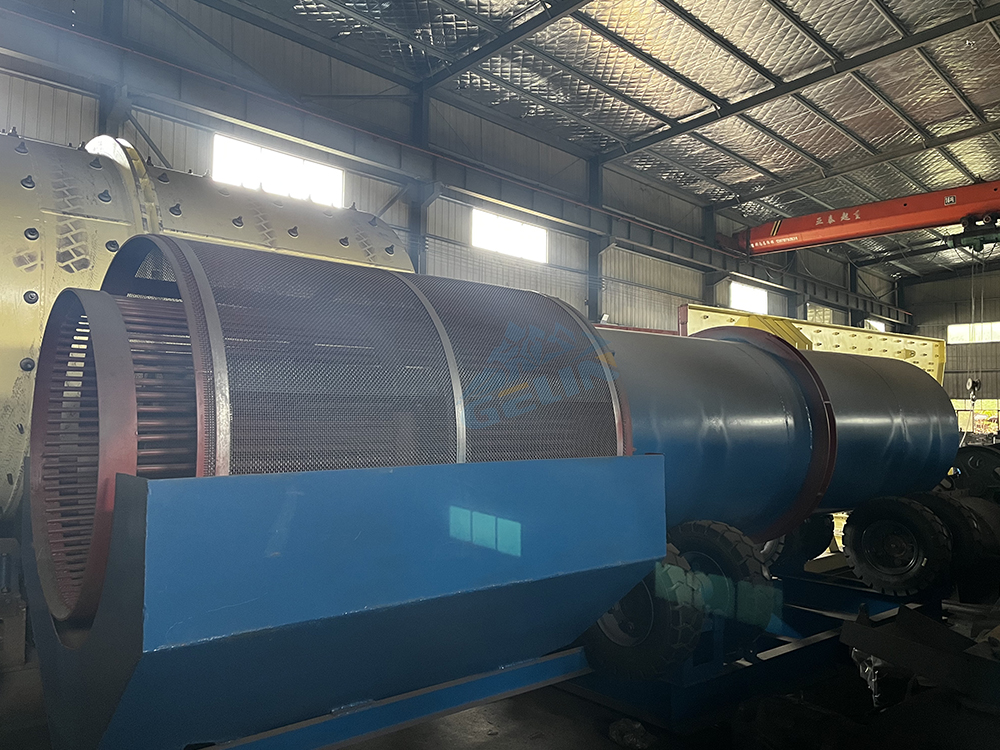

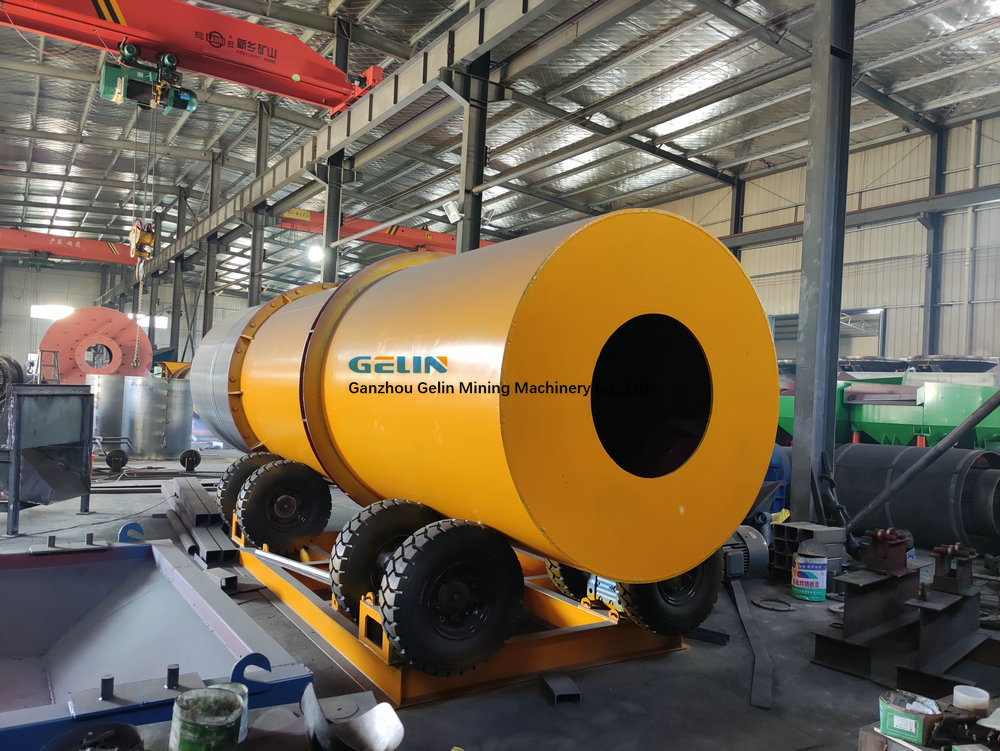

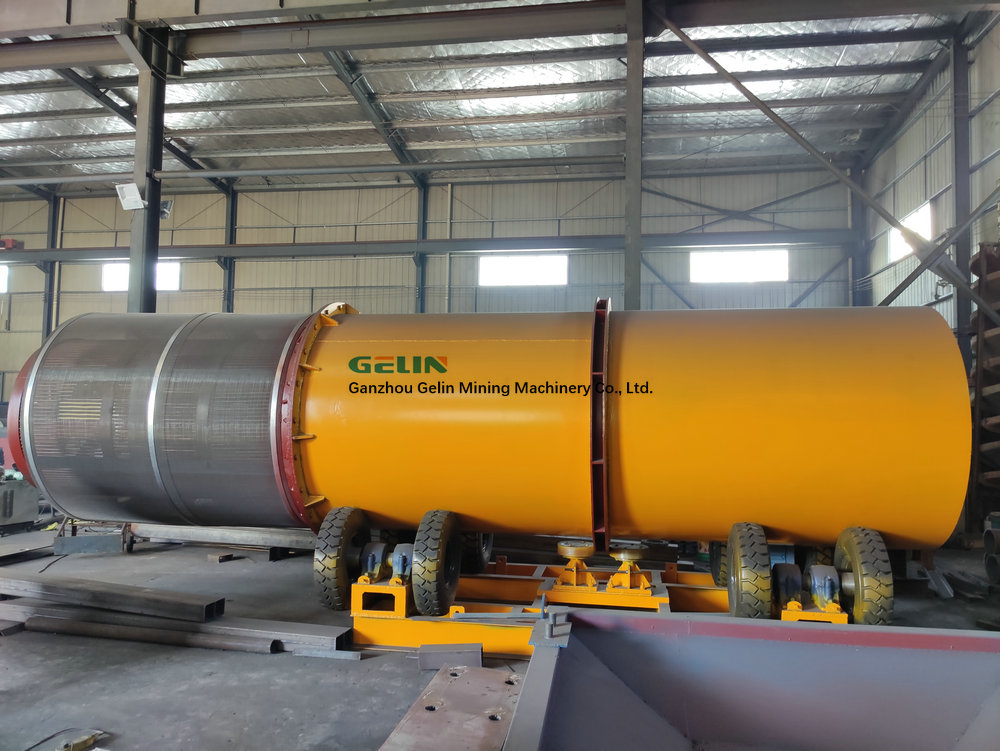

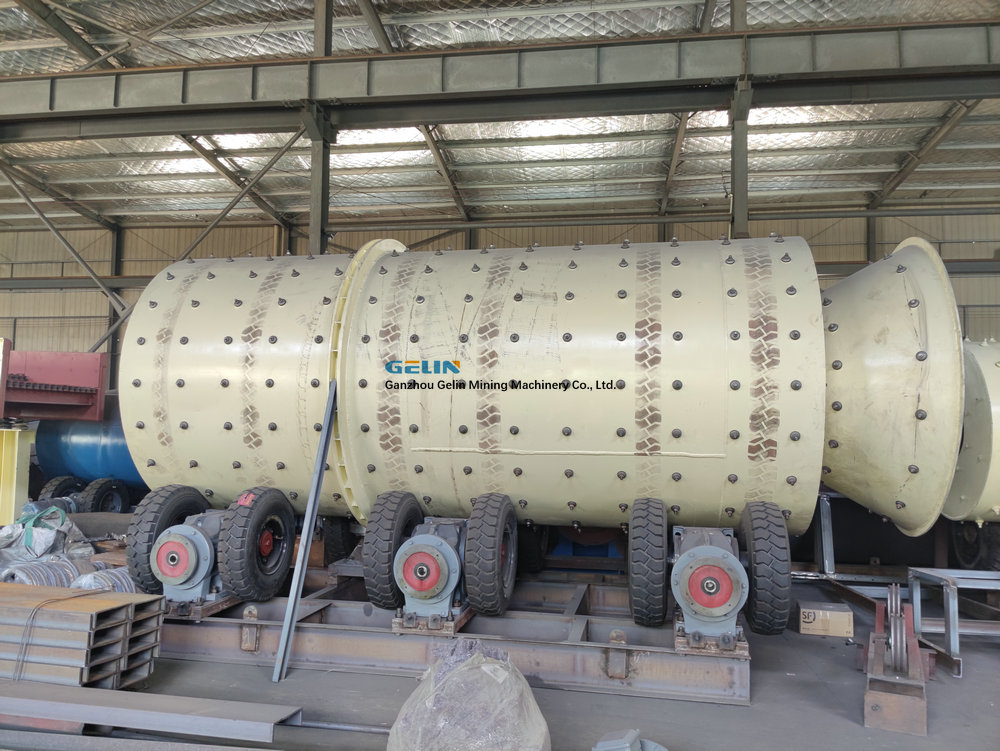

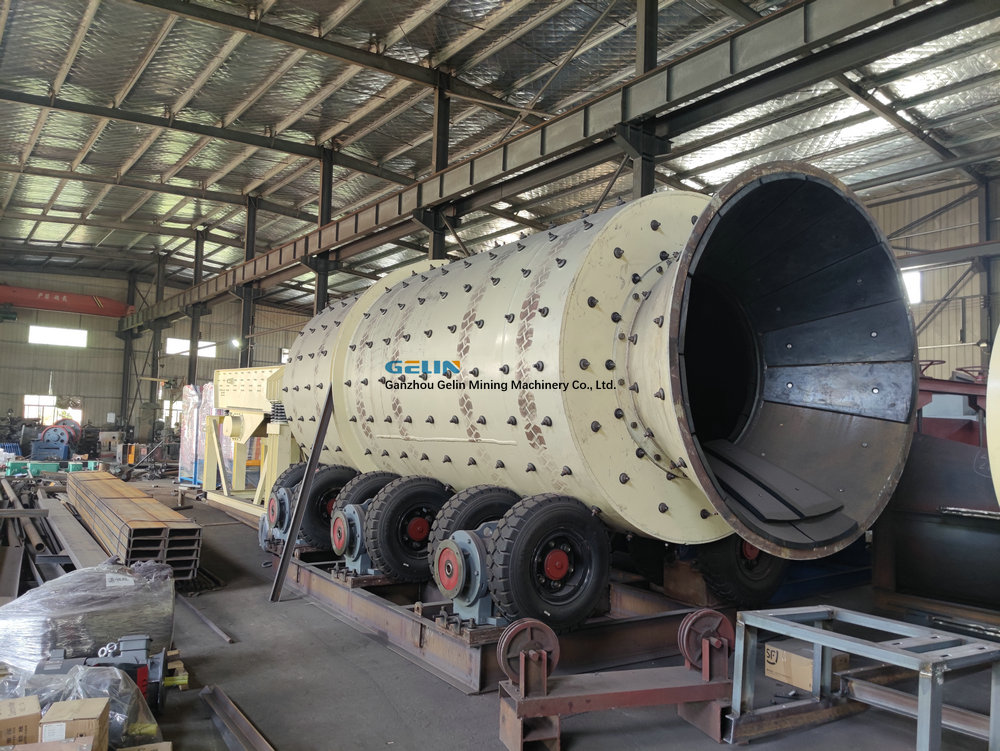

The Rotary Scrubber is a mineral washing machine, designed to break up alluvial, gravels, clays and sand.It is able to de-slime of the sand and stone, the drum inside is equipped with single or doublelayer round screen can get 2 to 3 different size of sand stone products, To which is applied pre-concentration of the materials contain mud, to promote the beneficiation index in the later steps and it is widely used to the washing of manganese, iron, limestone, tungstenore, silica and so on.

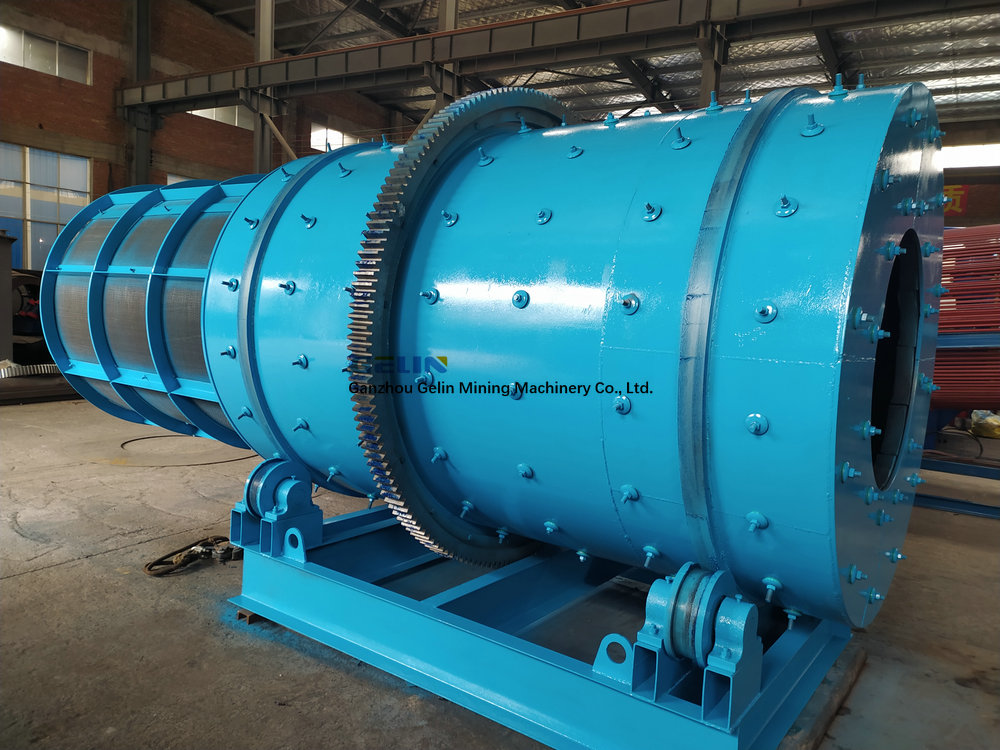

It is consisted of two parts: One is for washing the clay, another is for sieving different sizes ores. There are 4 carrier rollers to support the drum. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it's a closed space, there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to next machine, such as sluice box, centrifugal concentrator, shaking table ect.
