Ganzhou Gelin Mining Machinery Co., Ltd.

Features:

1.Stroke and jig frequency are easy to adjust,The advanced frequency conversion speed control technology is convenient to operate and manage.

2.Small cover area, high processing capacity per unit area.

3.Suitable for a wide range of particle size because of large processing capacity.

4.More saving water (around 30%-40%)than other normal jigger.

5.High recovery rate and easy to change spare parts and maintain.

Structure&Working Principle:

Saw-tooth wave jigger is revised and manufactured based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve produced by sawtooth wave jig is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.

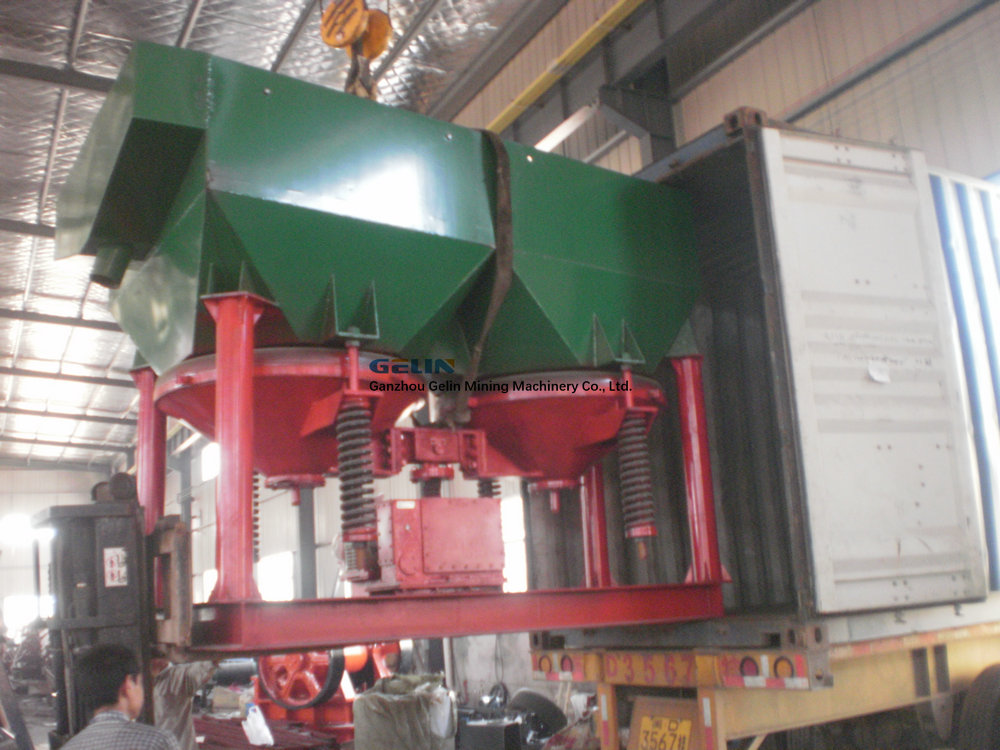

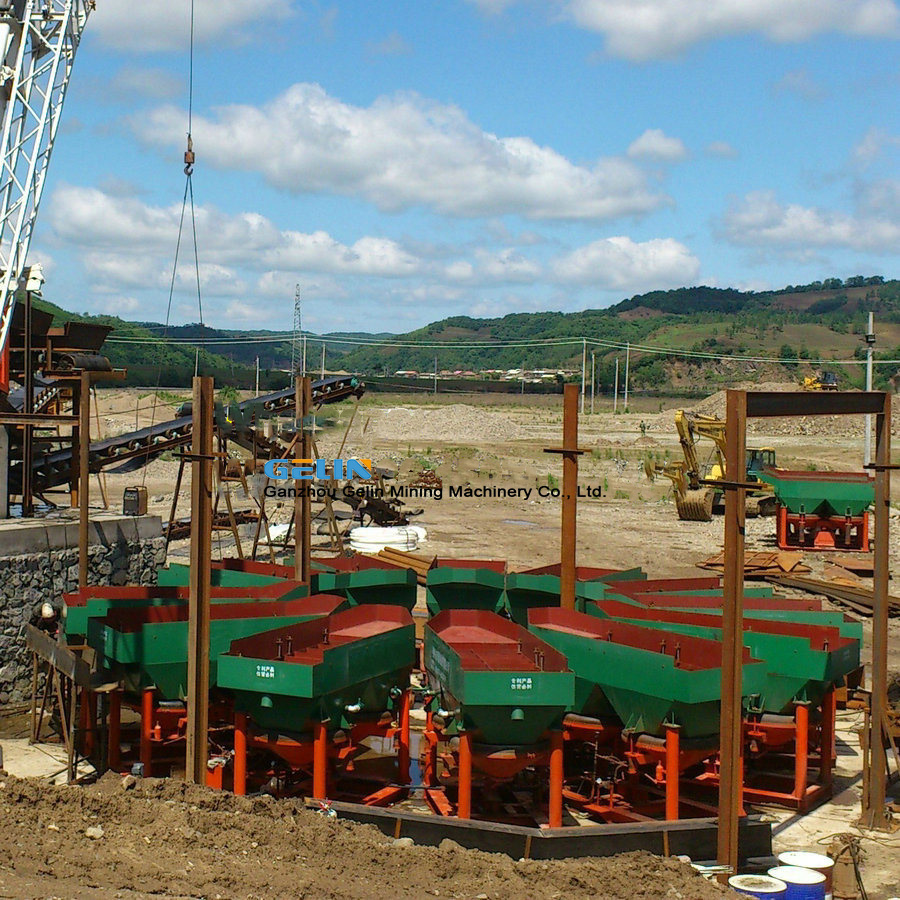

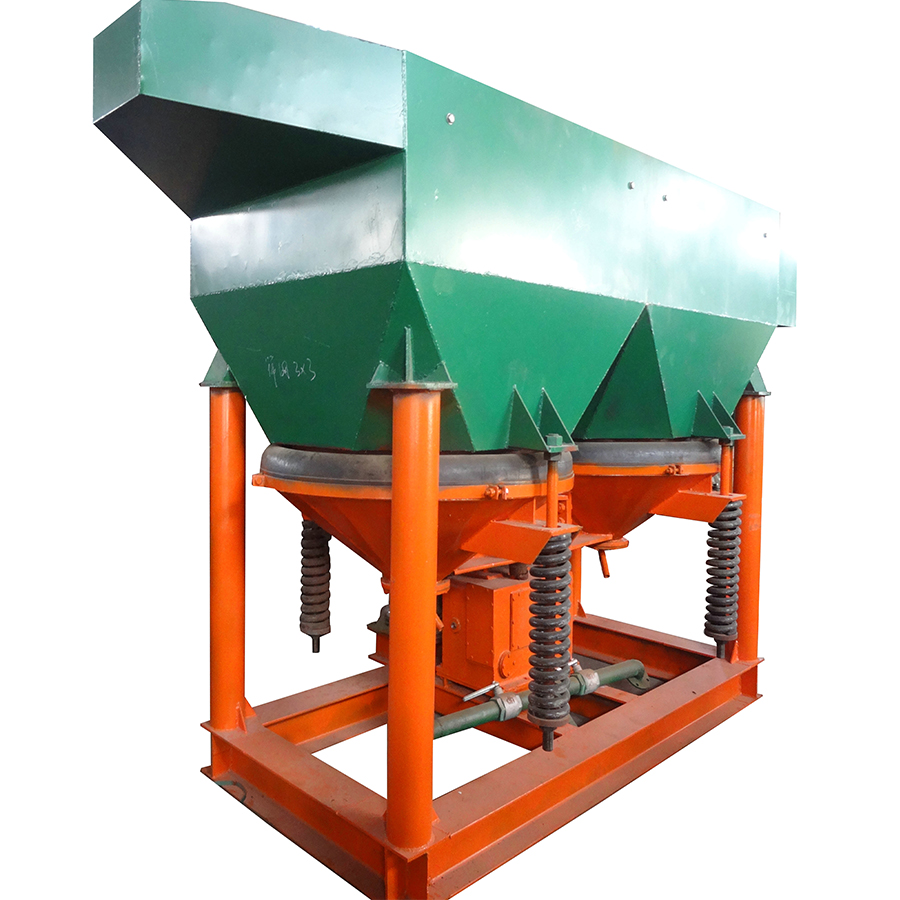

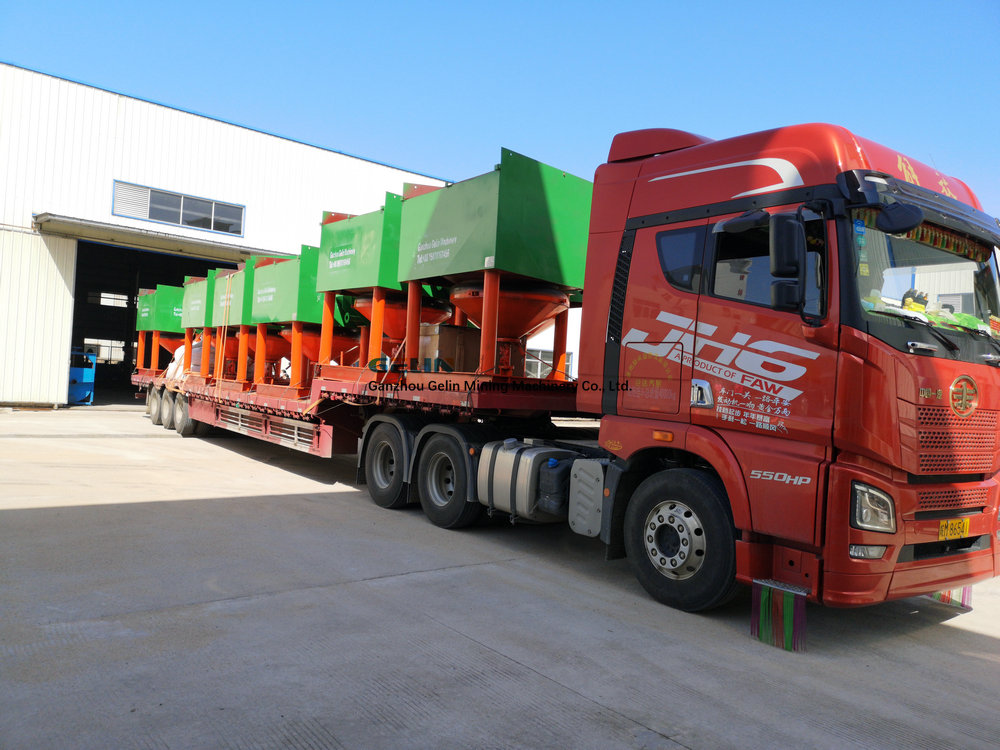

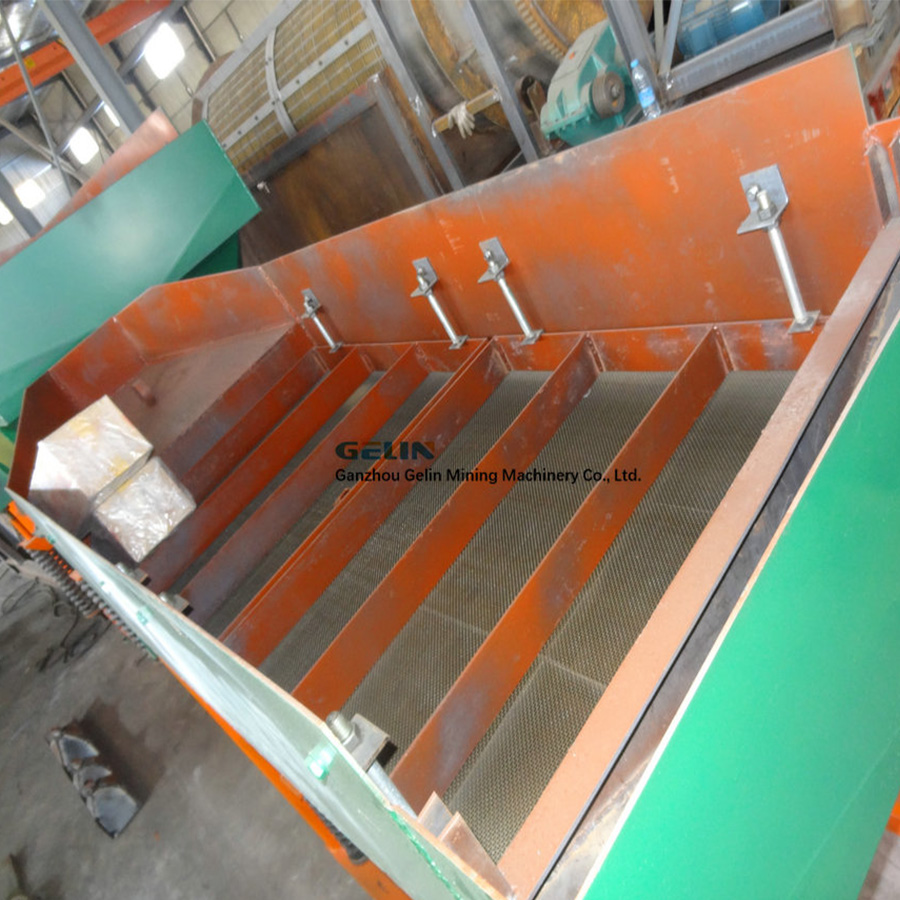

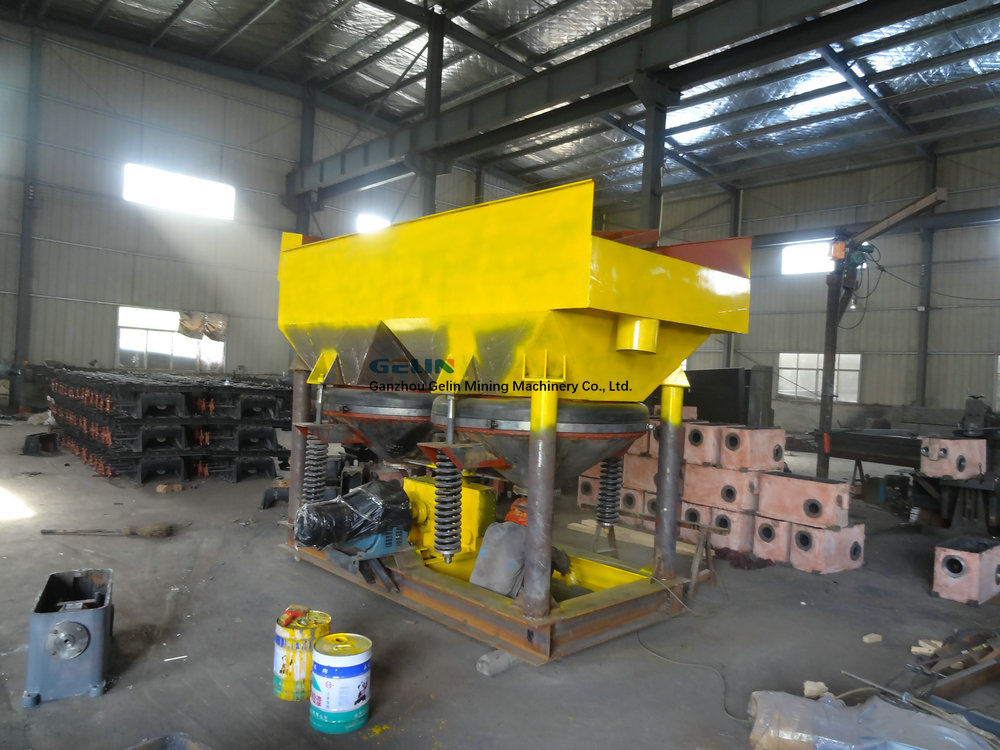

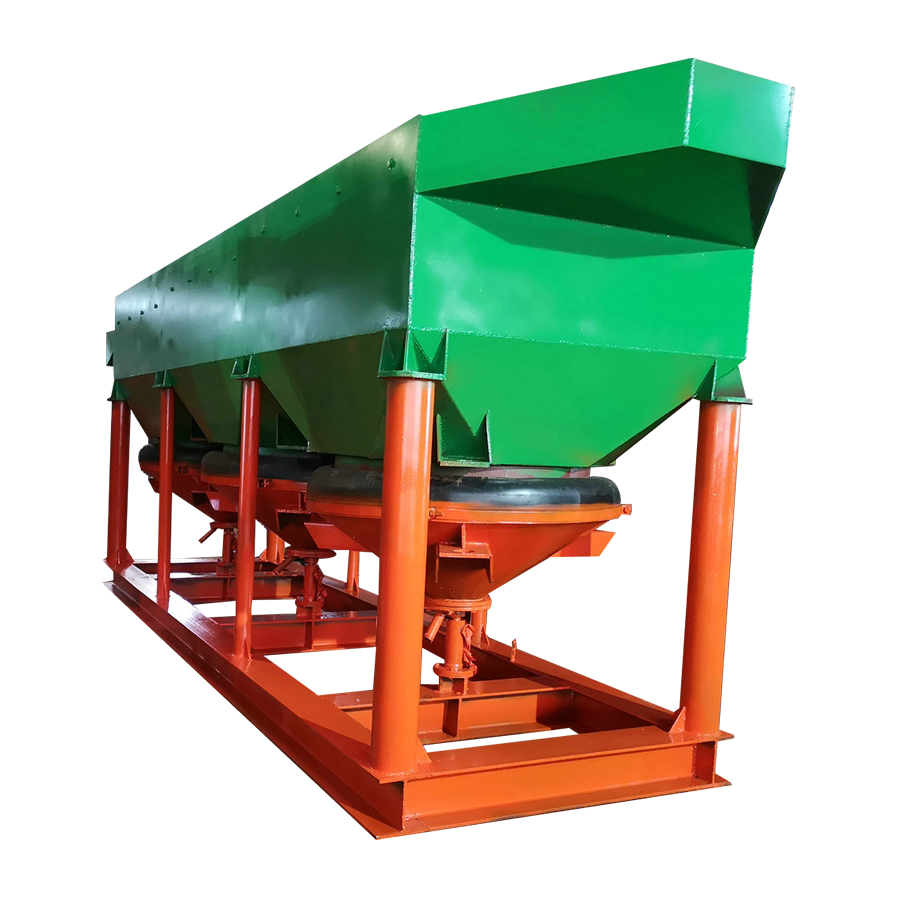

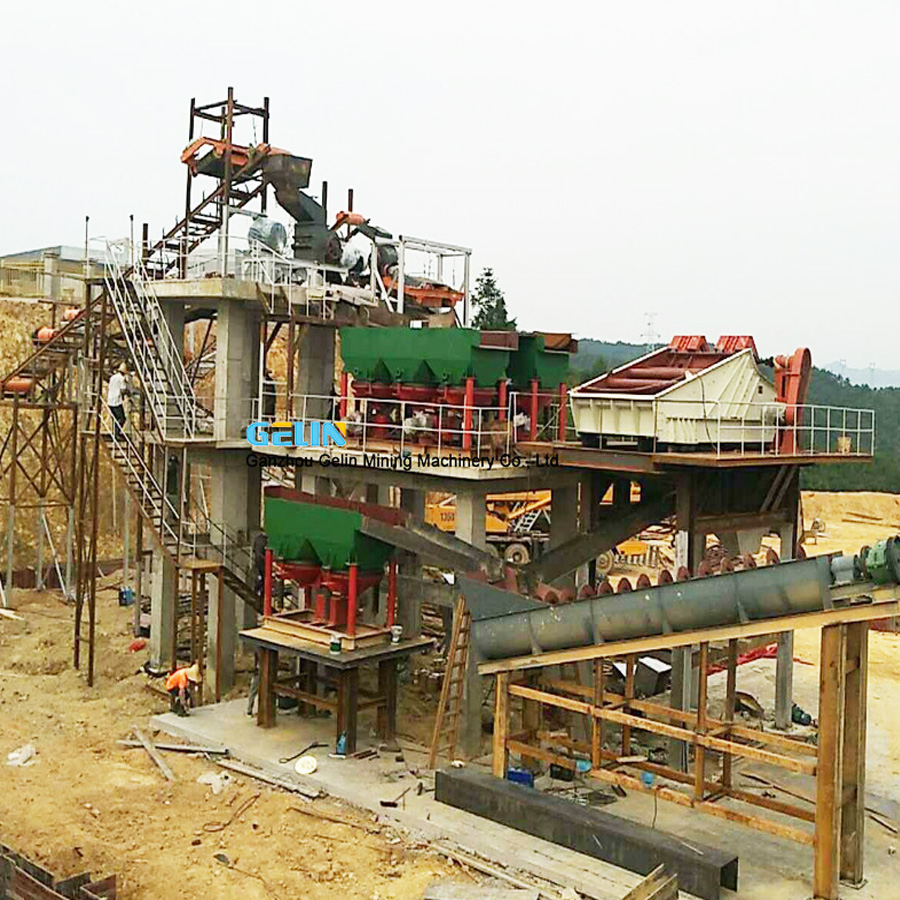

Pictures:
