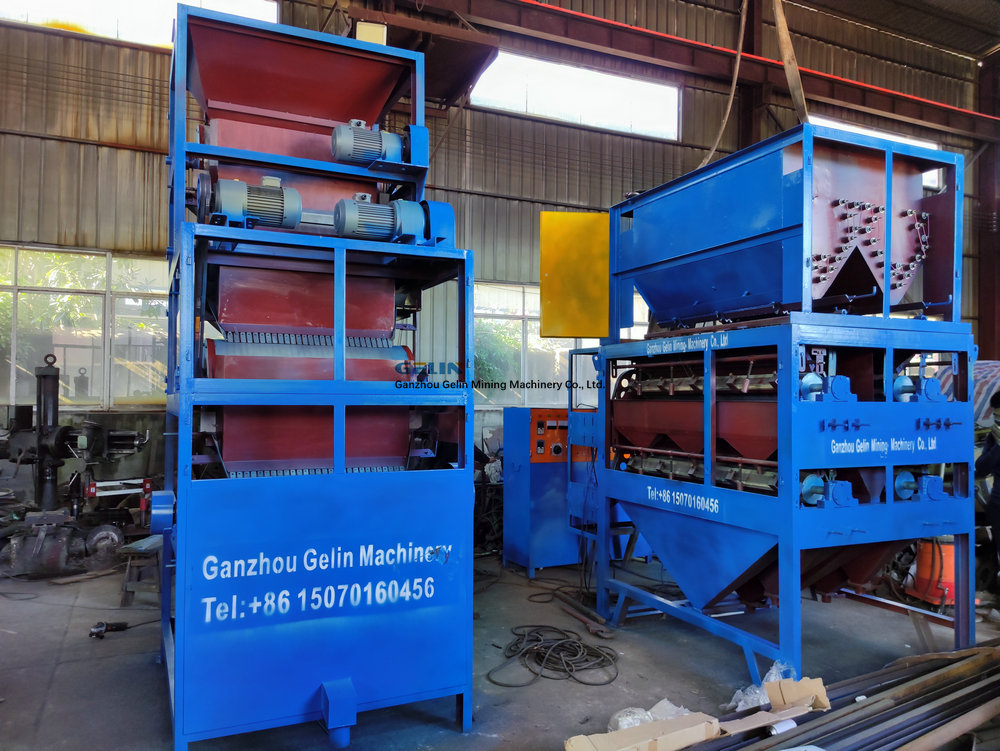

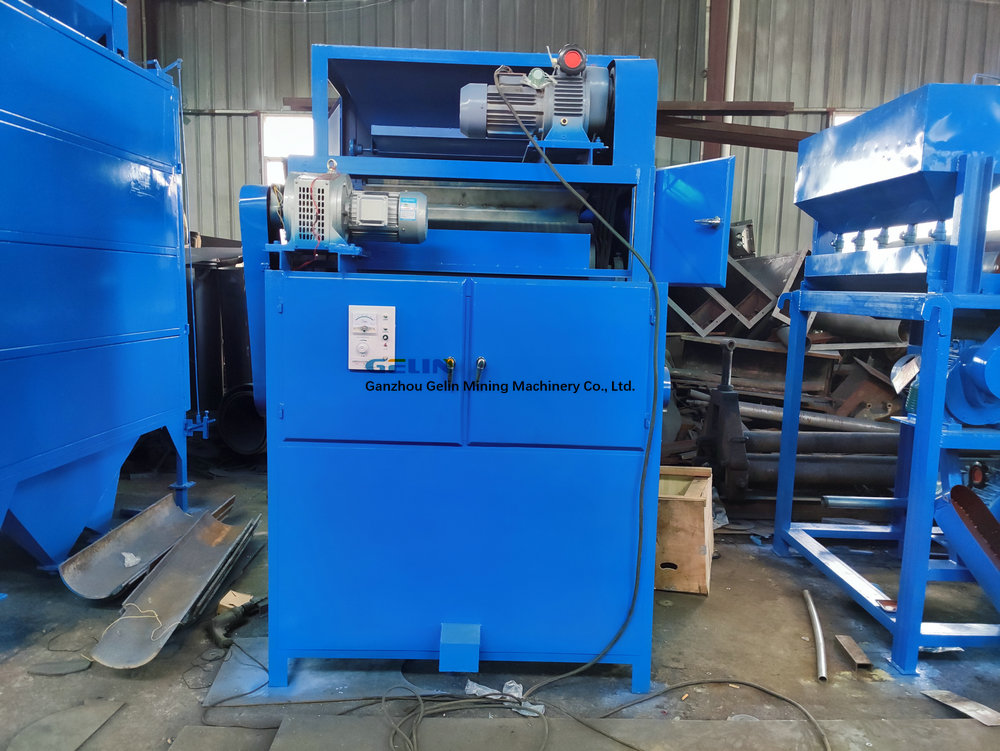

Dry Type Magnetic Separator-MAGNETIC SEPARATOR-Ganzhou Gelin Mining Machinery Co., Ltd.-Over 40 Years Experience in Mining Field

Specification:

Capacity:2-5 tons per hour;
Dry type;

Feeder hopper on the top of the machine;

Four drums/rollers;

First drum size: diameter 440mm* length 1100mm, magnetic field intensity:1000 gauss-1500 gauss;

Second drum size:diameter 440mm* length 1100mm, magnetic field intensity:5000gauss-7000 gauss;

Third drum size:diameter 440mm* length 1100mm, magnetic field intensity:8000 gauss-10000 gauss;

Fourth roller size:diameter 220mm* length 1100mm, magnetic field intensity:15000 gauss;

Material: steel for the whole machine frame;

Frequency conversion motors;

AC Inverter Controller to adjust the speed variation of EACH rollers/drums;

Electrc control pannel box to control the machine working;

Usage: it is used for separate Tin ore(cassiterite), Zircon ore, Magnetic iron ore, Ilmenite ore, Monazite ore, Rutile ore, silica sand, ther weak magnetic ore and so on.

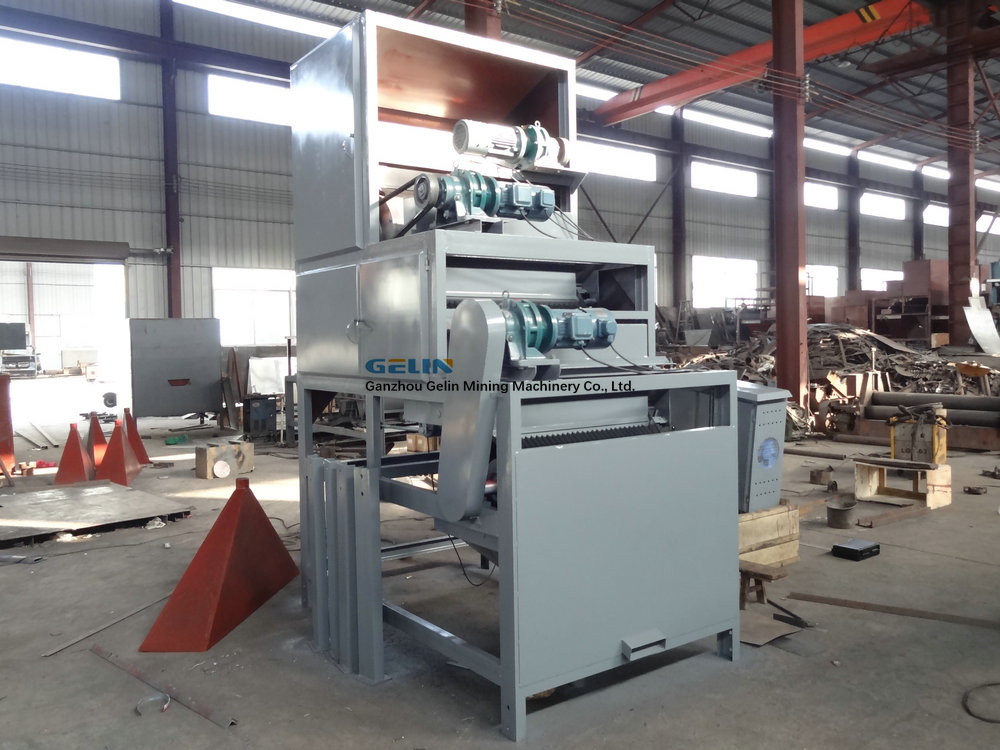

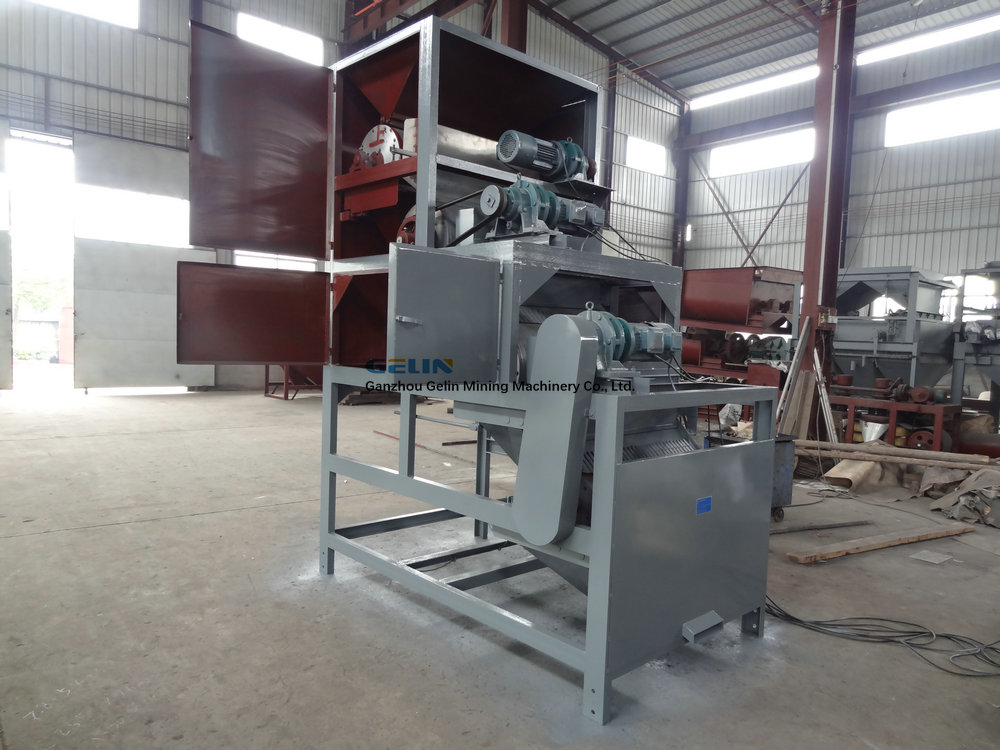

2). Three rollers high intensity magnetic separator

Specification:

Capacity:1-2 tons per hour;
Dry type;

Feeder hopper on the top of the machine;

Three rollers;

First roller size: diameter 160mm* length 1200mm, magnetic field intensity:1200 gauss;

Second roller/drum size:diameter 390mm* length 1200mm, magnetic field intensity:8000 gauss;

Third roller size:diameter 160mm* length 1200mm, magnetic field intensity:13000 gauss-15000 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;

Dimension:1700*1500*2280mm;

Usage: it is used for separate Tin ore(cassiterite), Zircon ore, Magnetic iron ore, Ilmenite ore, Monazite ore, Rutile ore, silica sand, ther weak magnetic ore and so on.

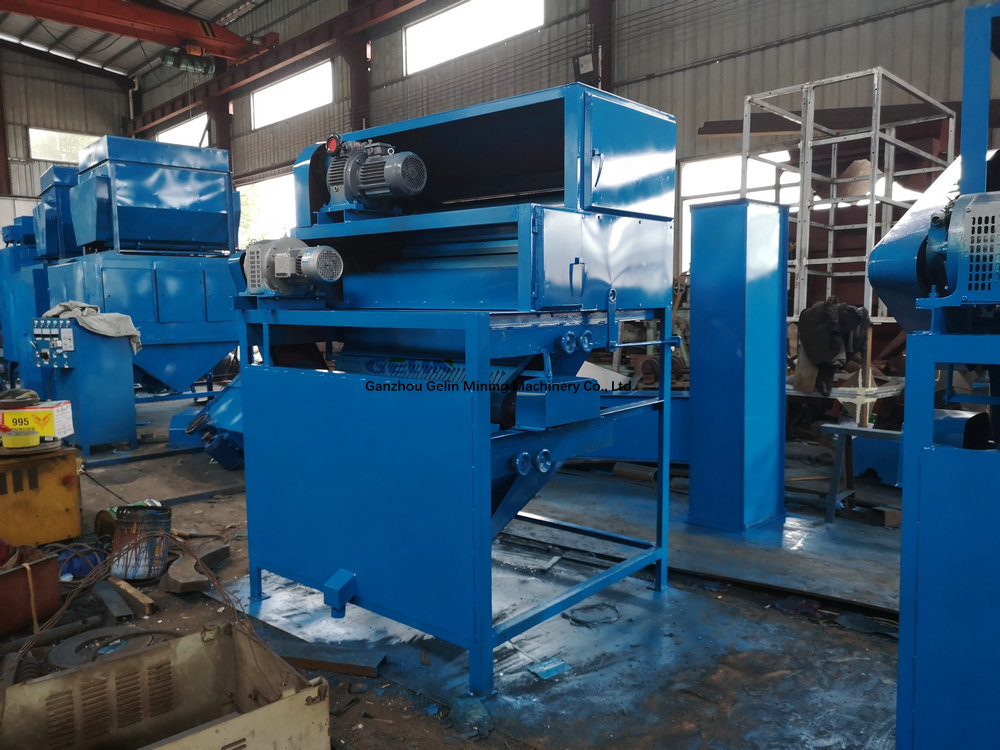

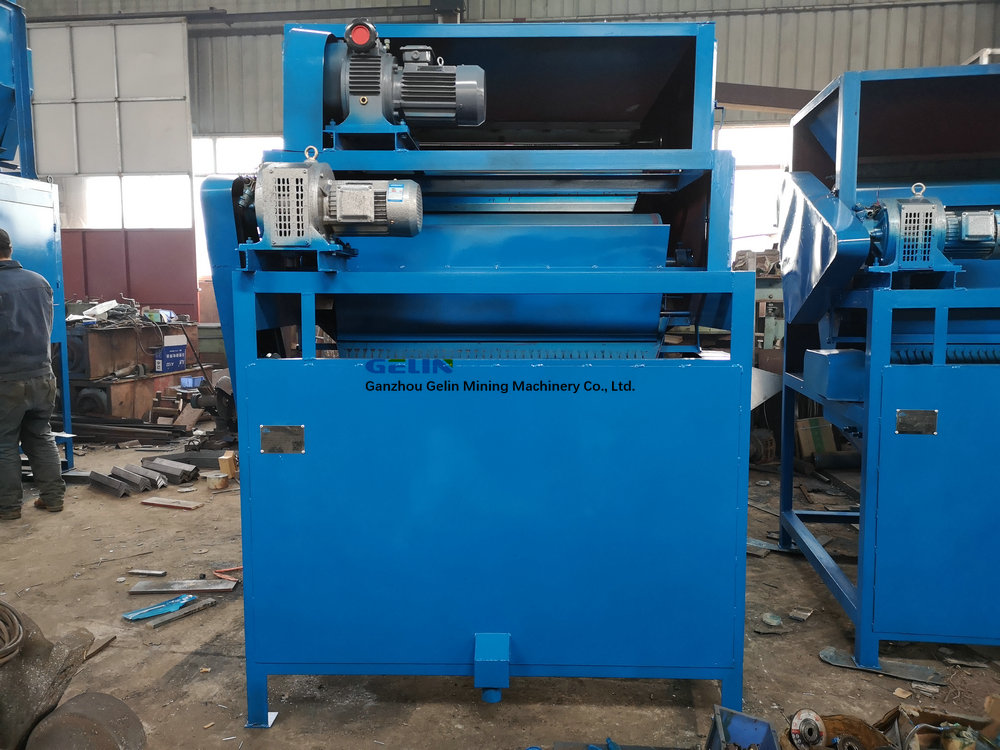

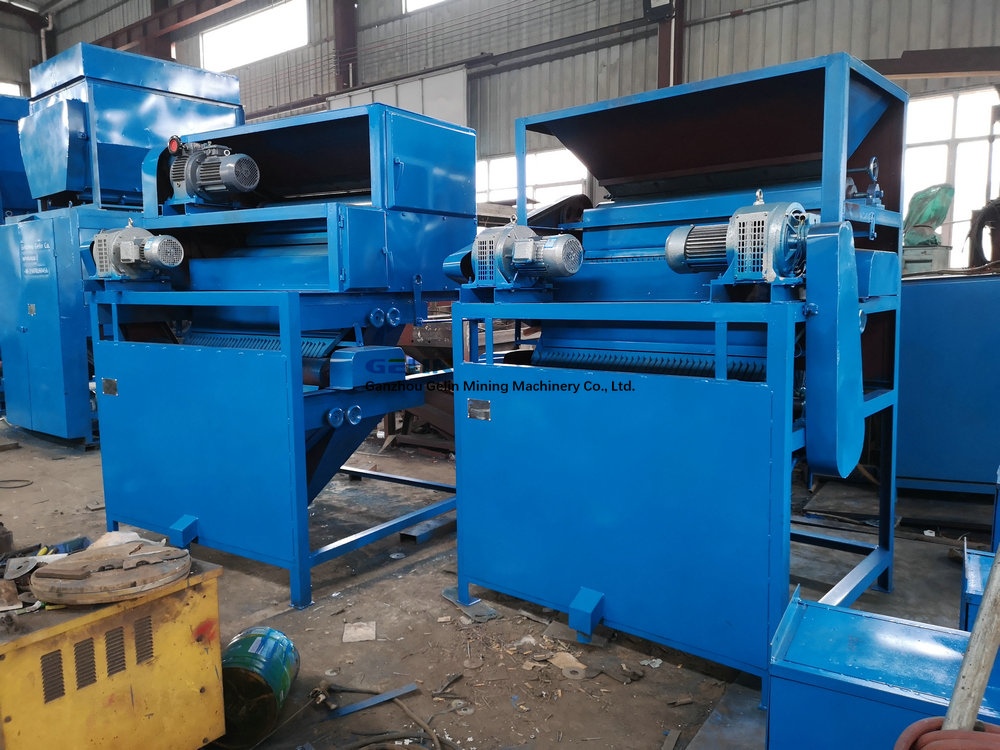

3).Two rollers high intensity magnetic separator

Specification:

Capacity:1-2 tons per hour;
Dry type;

Feeder hopper on the top of the machine;

Two rollers;

First roller size: diameter 160mm* length 1200mm, magnetic field intensity:13000 gauss;

Second roller size:diameter 160mm* length 1200mm, magnetic field intensity:13000 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;

Dimension:1700*1400*2250mm;

Usage: it is used for separate Tin ore(cassiterite), Zircon ore, Magnetic iron ore, Monazite ore, Rutile ore, silica sand, ther weak magnetic ore and so on.

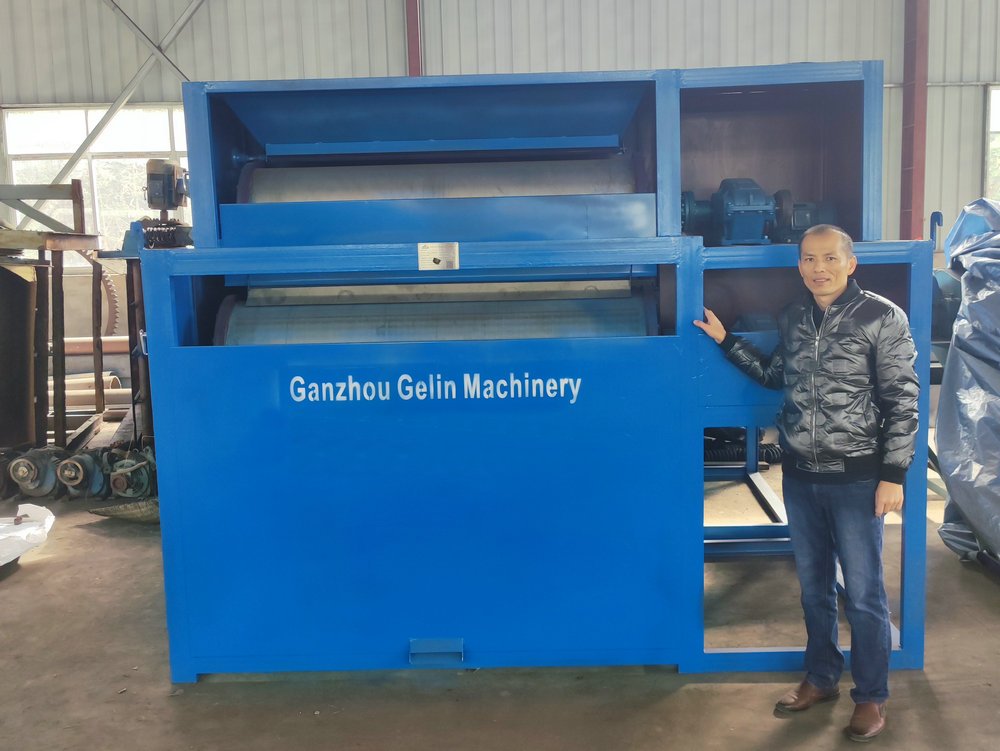

4).One roller low intensity magnetic separator / One roller high intensity magnetic separator

Specification:

Capacity:10-20 tons per hour;
Dry type;

Feeder hopper on the top of the machine;

One roller;

Roller size: diameter 400mm* length 1800mm, magnetic field intensity:1200 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;

Usage: it is used for separate Magnetic iron ore, strong magnetic ore.
