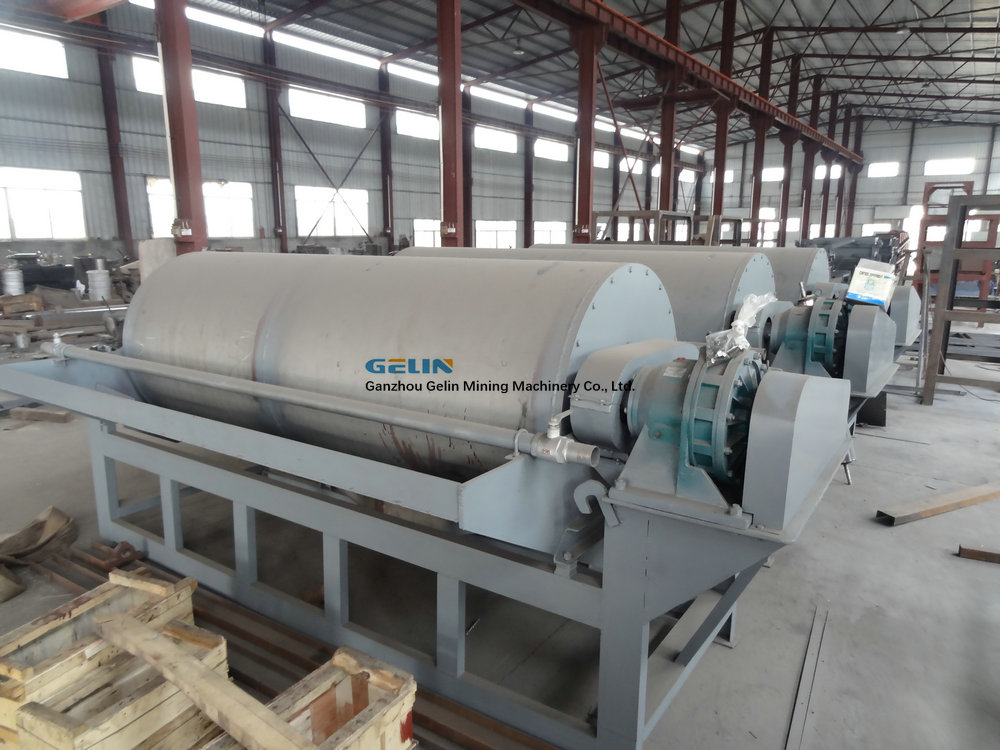

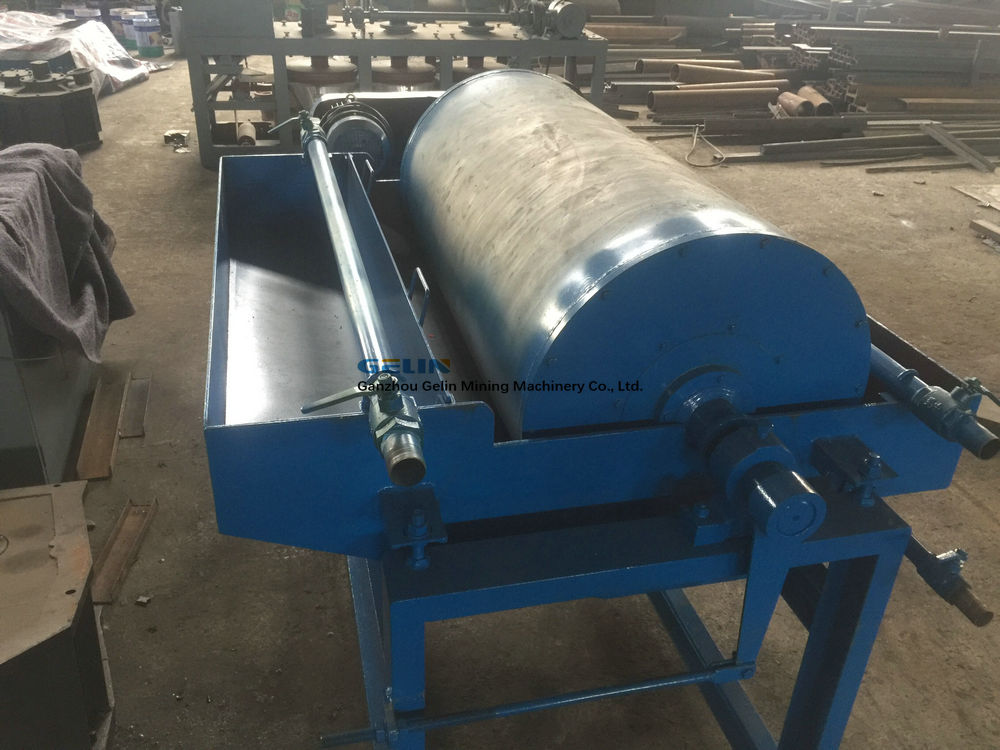

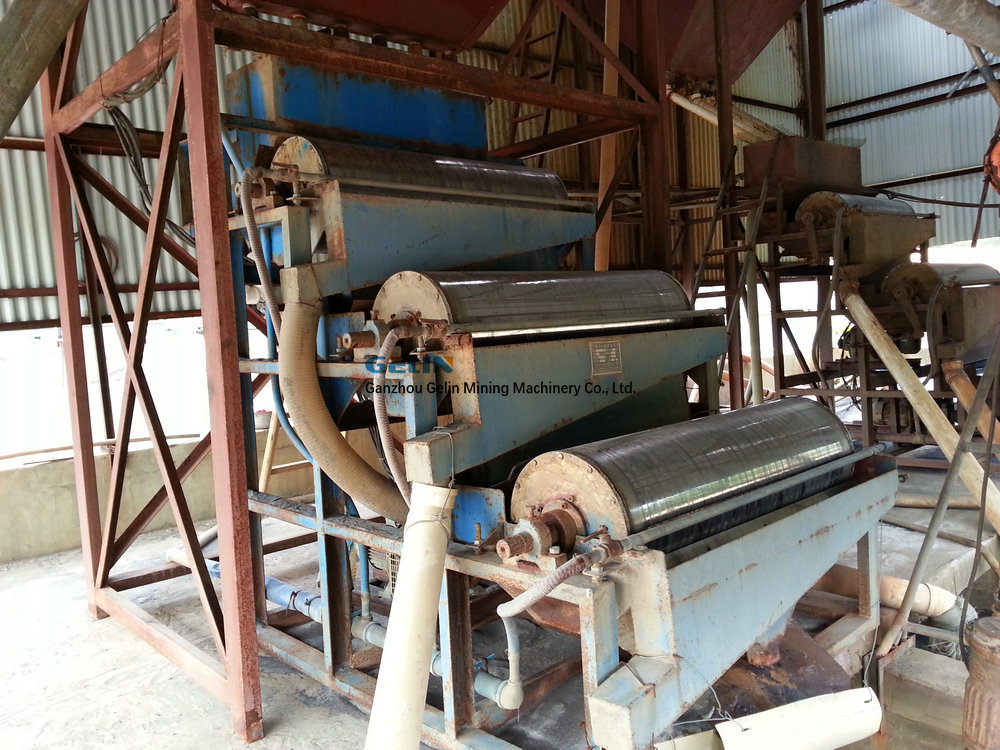

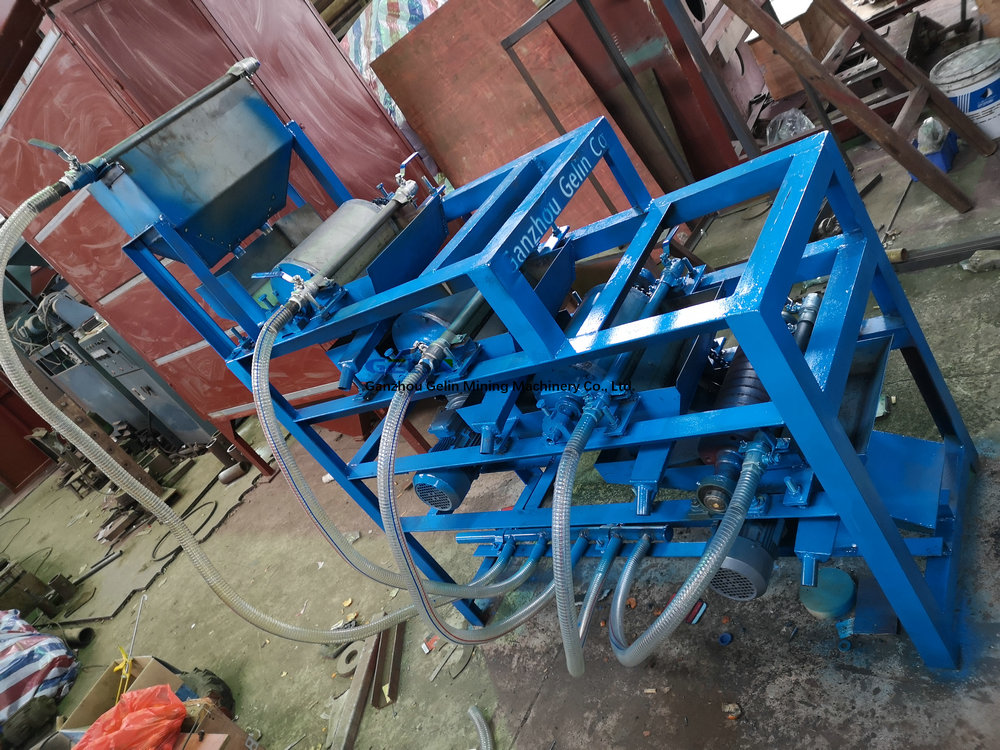

Wet Type Magnetic Separator

Wet Drum Permanent Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals. The magnetic field of CTS(N,B) wet drum permanent magnetic separators divide into rotary and fixed. The fixed one is mainly use in weak magnetic field to separate the fine particle strong magnetic materials, or eliminating the strong magnetic materials in the nonmagnetic ores.

Get A Quote

Product Details

Working Principle
When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 6-0mm size.

Parameter

Model	Shell szie (Shell diameter×Shell length) mm	Magnetic induction on shell surface mT			Capacity		Power Kw	Shell rotation speed r/min	Weight Kg
Model	Shell szie (Shell diameter×Shell length) mm	Magnetic pole geometric centre	Average	Max. magnetic strength	T/h	m ³/h	Power Kw	Shell rotation speed r/min	Weight Kg
CTS(N.B)-46	400×600		130	160	1~3	5	1.1	45	600
CTS(N.B)-66	600×600		145	170	5~10	16	1.1	40	705
CTS(N.B)-69	600×900		145	170	8~15	24	1.1	40	830
CTS(N.B)-612	600×1200		145	170	10~20	32	2.2	40	990
CTS(N.B)-618	600×1800		145	170	15~30	48	2.2	40	1330
CTS(N.B)-712	750×1200	120	155	180	15~30	48	3	35	1500
CTS(N.B)-718	750×1800	120	155	180	20~45	72	3	35	2100
CTS(N.B)-918	900×1800	148	165	190	25~55	90	4	28	2900
CTS(N.B)-924	900×2400	148	165	190	35~70	110	4	28	3500
CTS(N.B)-1018	1050×1800	148	165	190	40~75	120	5.5	22	4000
CTS(N.B)-1021	1050×2100	160	240	280	45~88	140	5.5	22	4500
CTS(N.B)-1024	1050×2400	160	240	280	52~100	160	5.5	22	5000
CTS(N.B)-1030	1050×3000	160	240	280	65~125	200	7.5	22	6200
CTS(N.B)-1218	1200×1800	160	240	280	47~90	140	5.5	19	5800
CTS(N.B)-1224	1200×2400	160	240	300	82~120	192	7.5	19	6200
CTS(N.B)-1230	1200×3000	160	240	280	80~150	240	7.5	19	7200
CTS(N.B)-1530	1500×3000	180	240	300	90~170	270	11	14	8100
CTS(N.B)-1540	1500×4000	180	240	300	115~220	350	11	14	9300

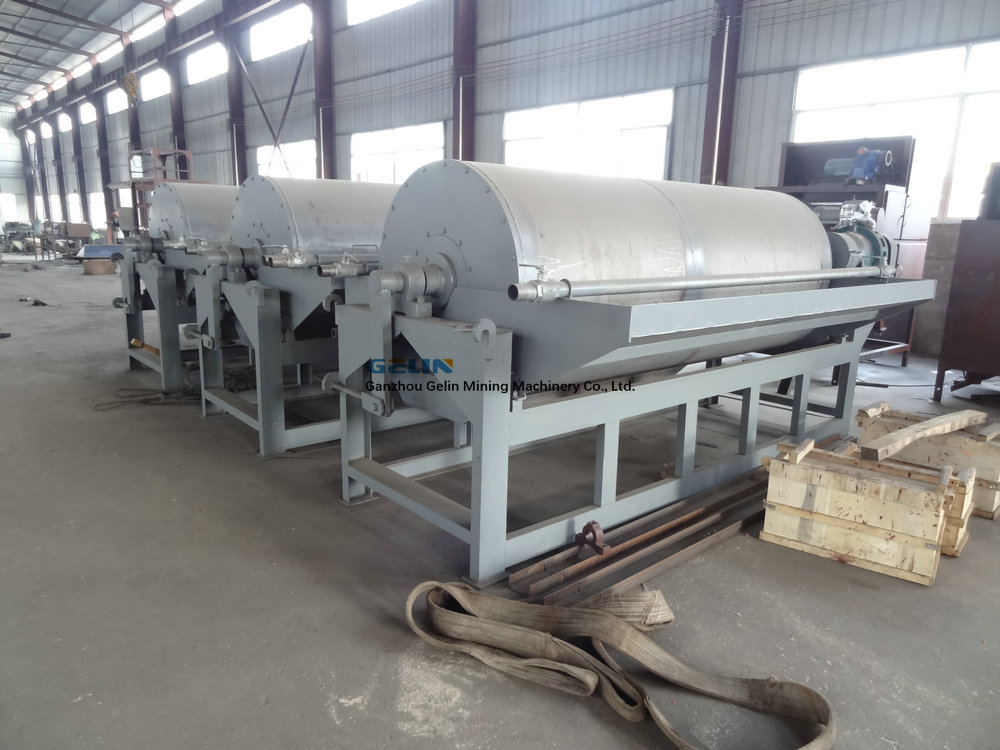

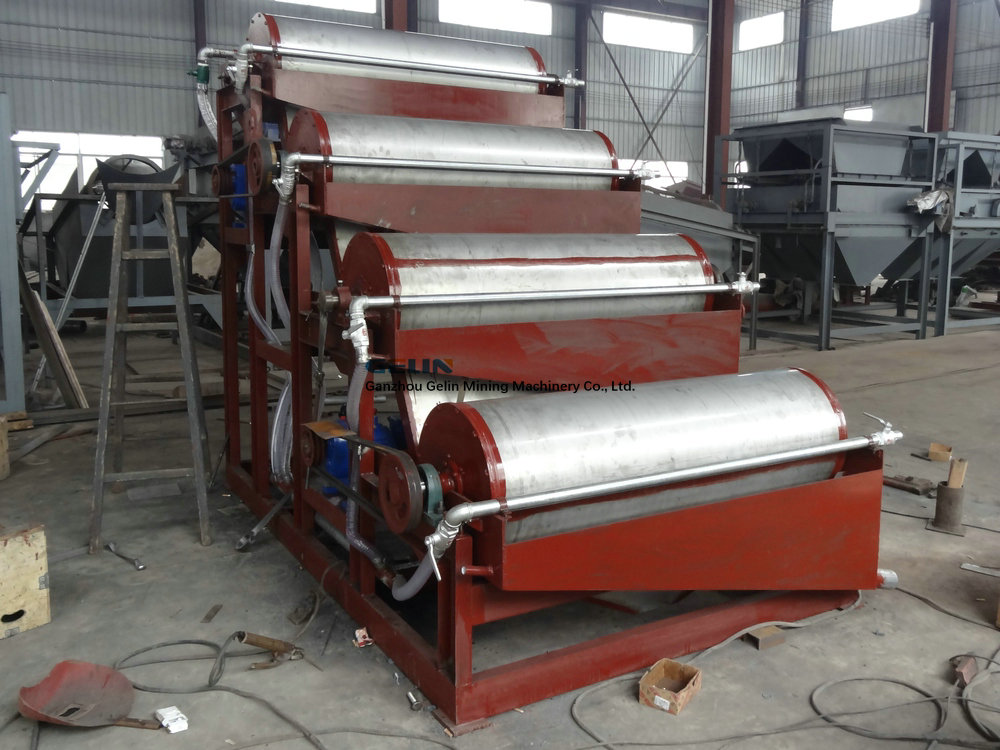

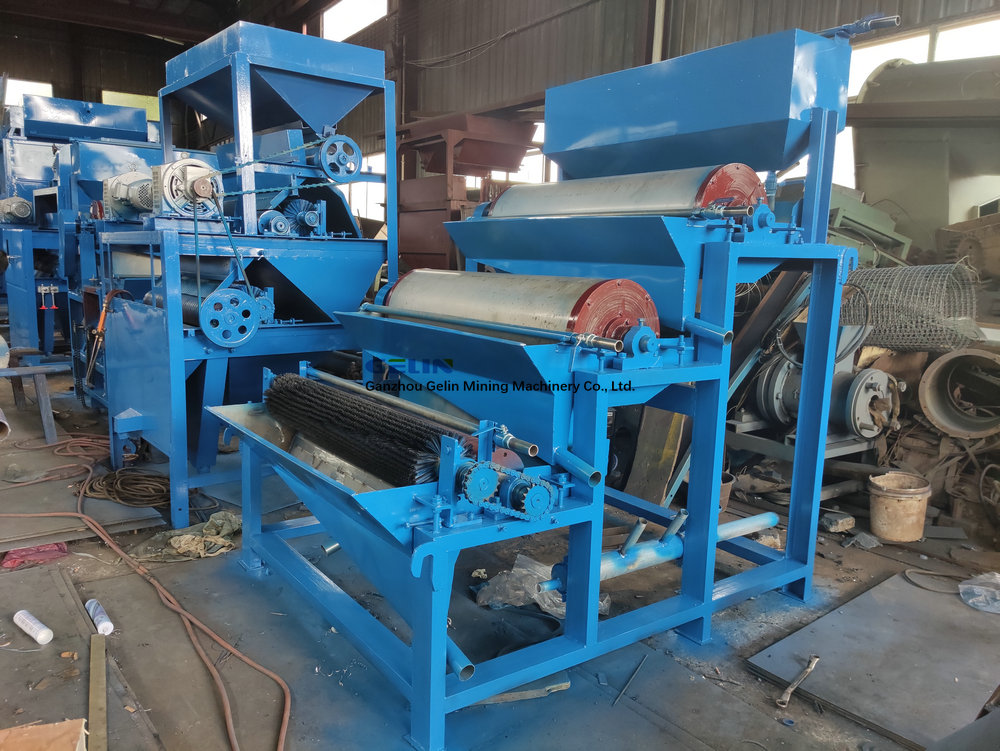

Pictures
