Ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overflow type due to different ways of discharging material.
Wet grate bearing energy ball mills are ones of technical transformation type. Compared with traditional ball mill, they reduce 50% of working current and 50% of starting current. They can avoid babbit metal burning, machine shutdown and production stoppage, and improve the inadequacy of ball mills’ concentricity, unstable operation, unstable current, and serious abrasion of hollow shafts. After rolling bearings are adopted, the hollow shaft can continue to be used. They can save 90% of lubricating thin oil, raise 20% of loading capacity, increase 15% of output, and accelerate 10% of speed. Every machine saves 20% to 30% of electricity.
Features:
♦ Energy-saving.
♦ Simple structure and split installation
♦ Easy to installing and maintaining
♦ 2 types feeders: combined feeder and cylinder feeder
♦ Dry ball mills & wet ball mills for option according to different materials & discharging methods
High capacity & continuous grinding
Quick installation. easy operation, and maintenance
Quality design. long service life
Application:
Mining Industry : Used to grind various kinds of ores.
Ceramic Industry : Used to finish and grind various kinds of raw materials and cement.
Smelting Industry : Used to grind various kinds of slag.
Power generation : Used to grind coal for combustion use.
Chemical Industry : Used to grind coke, ilmenite, and others.
Working Principle:
It consists of a large cylinder which slowly rotates around a horizontal axis. The cylinder is partially filled with the material to be grind, plus the grinding media (steel grinding balls). Inside the cylinder, the media will be lifted to a certain height under the action of centrifugal force and then drop or fall, grinding the ore in between the balls as they interact. Feed material to be ground enters the cylinder via a hopper on one end and after being crushed by the grinding medium is discharged at the other end.
Parameter:
| Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) |
| Ø600*1200 | 20-36 | 0.5 | ≤20 | 0.074-0.4 | 0.2-1 | 7.5 | 1.6 |
| Ø900*1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| Ø900*3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| Ø1200*2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø1200*3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200*4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500*3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| Ø1500*4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500*5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ø1830*3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| Ø1830*4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| Ø1830*6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ø1830*7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Ø2100*3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| Ø2100*4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| Ø2100*7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| Ø2200*4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| Ø2200*6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200*7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| Ø2200*7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| Ø2400*3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ø2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø2700*4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Ø2700*4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ø3200*4500 | 18 | 65 | ≤25 | 0.074-0.4 | ----- | 800 | 137 |
| Note: 1. Above weights for the machines exclude motor 2. Capacity is for reference. | |||||||

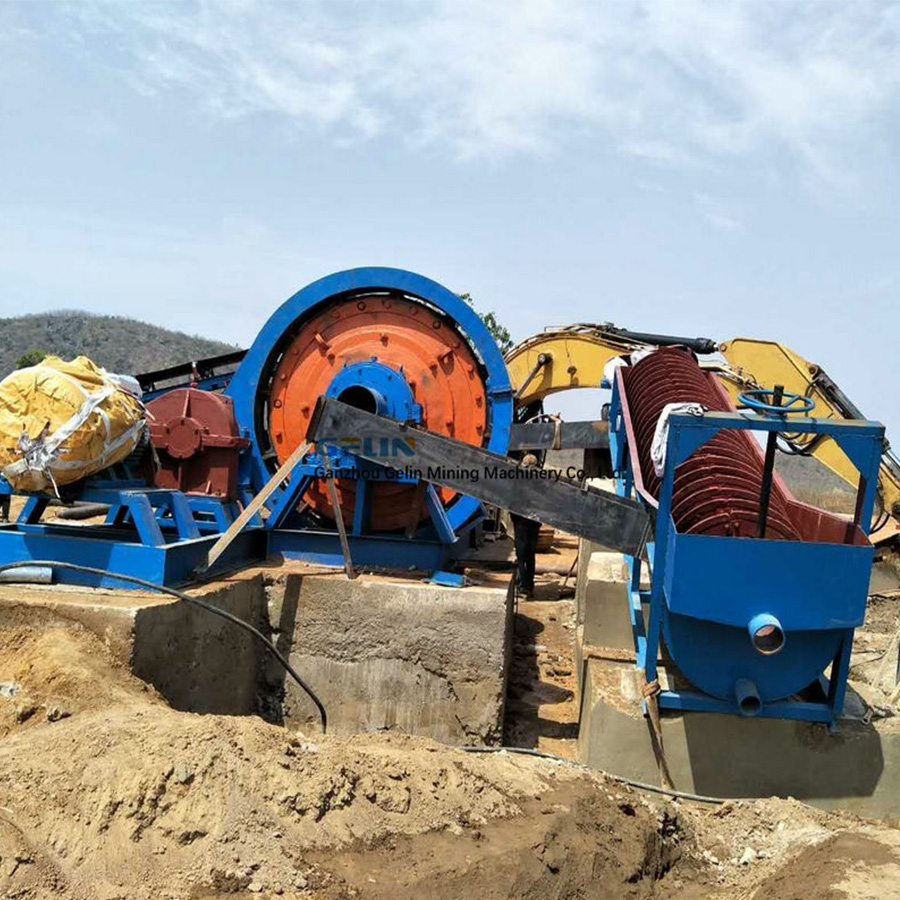

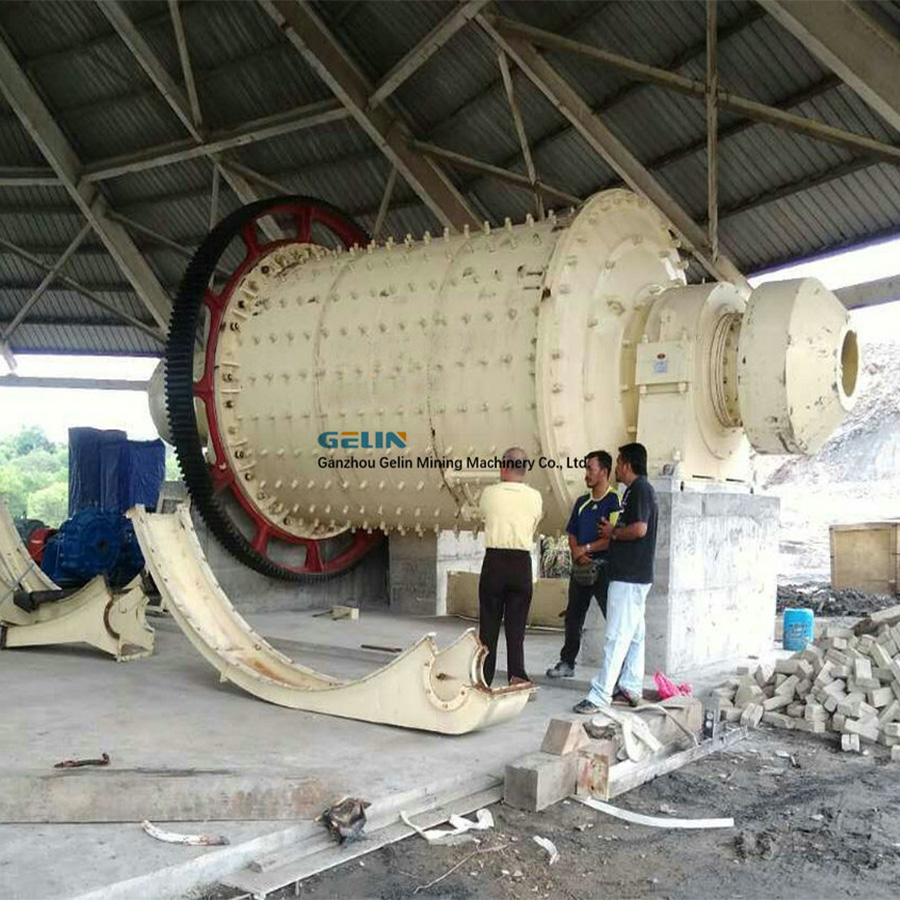

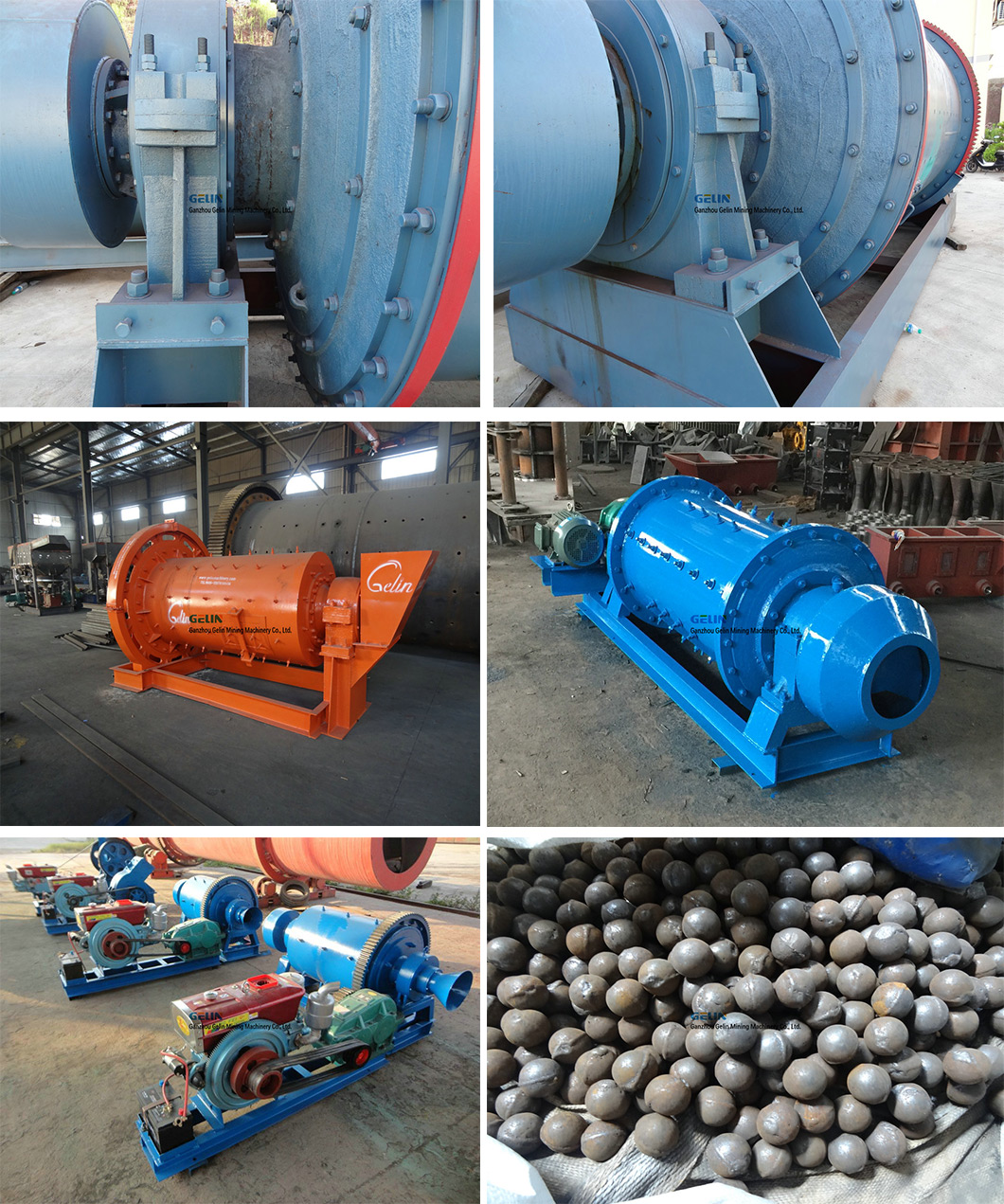

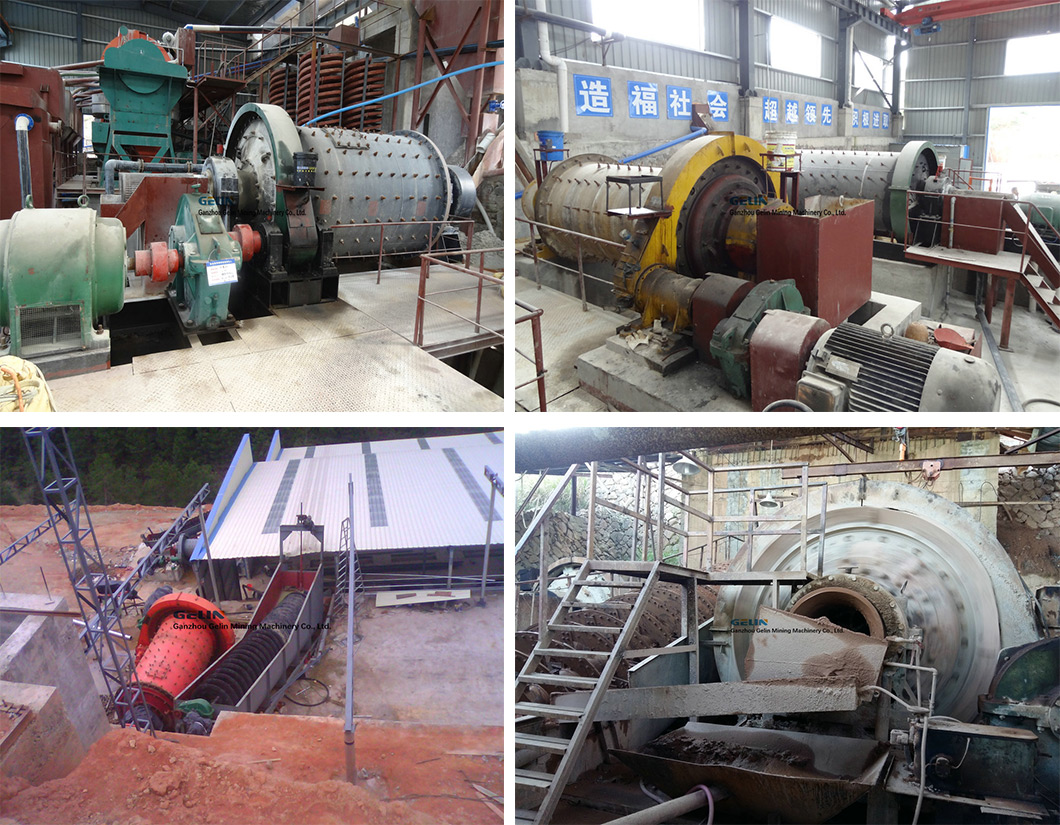

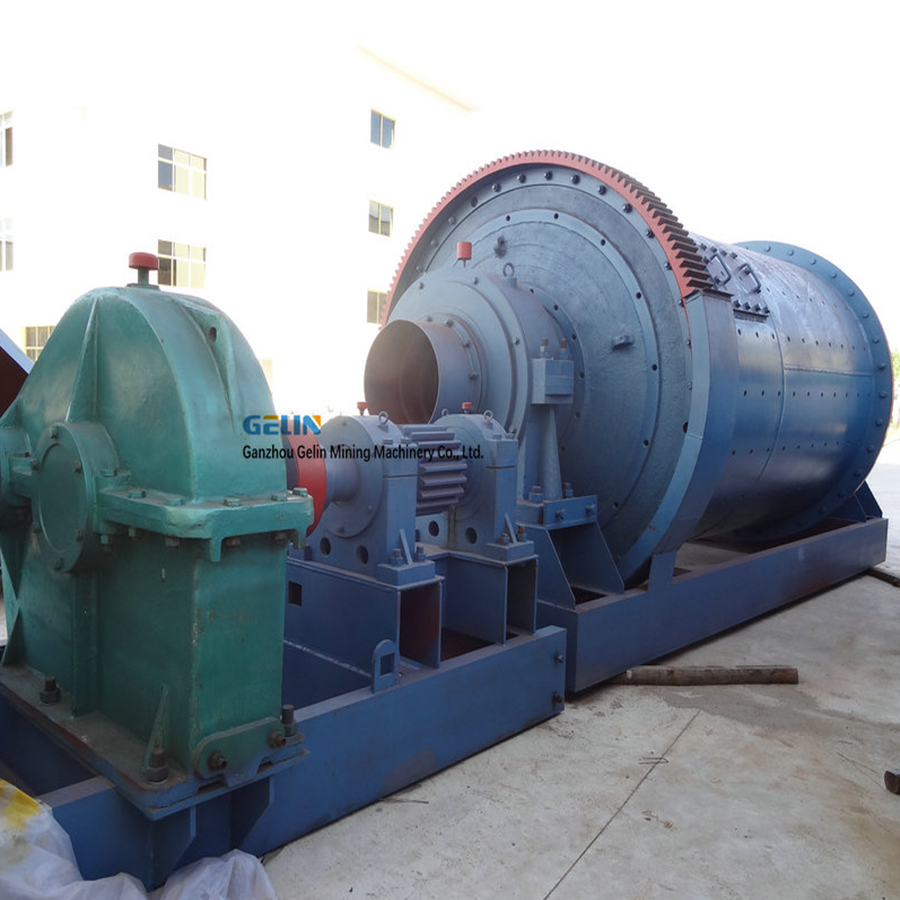

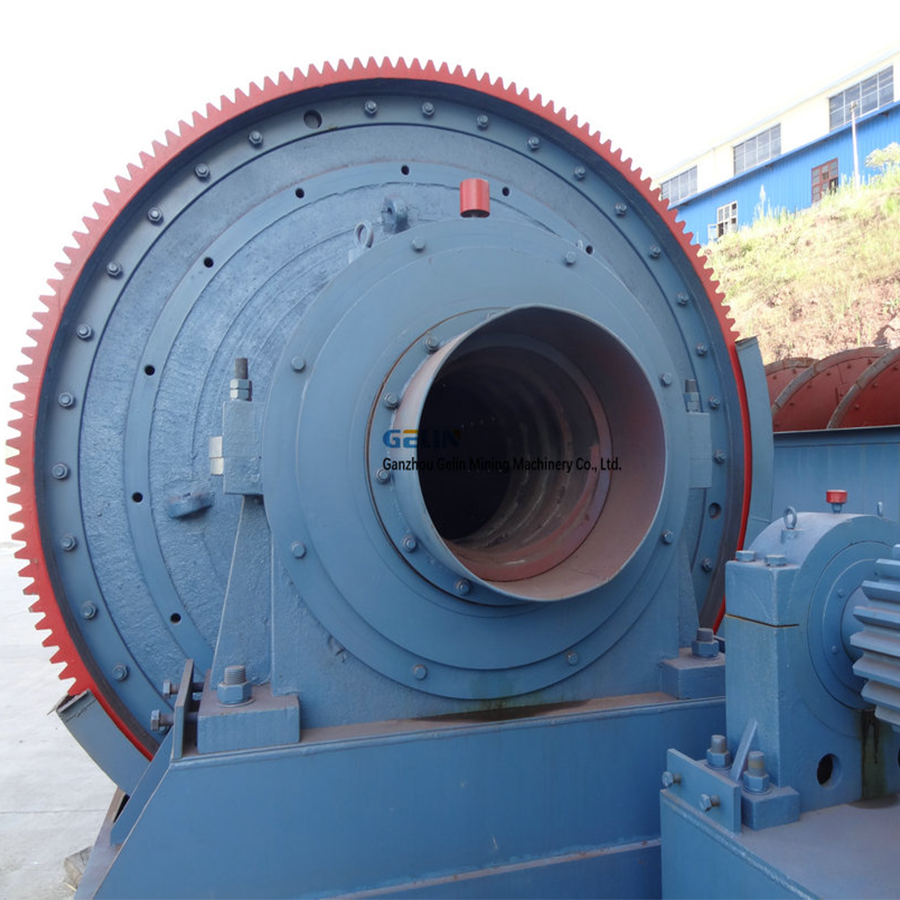

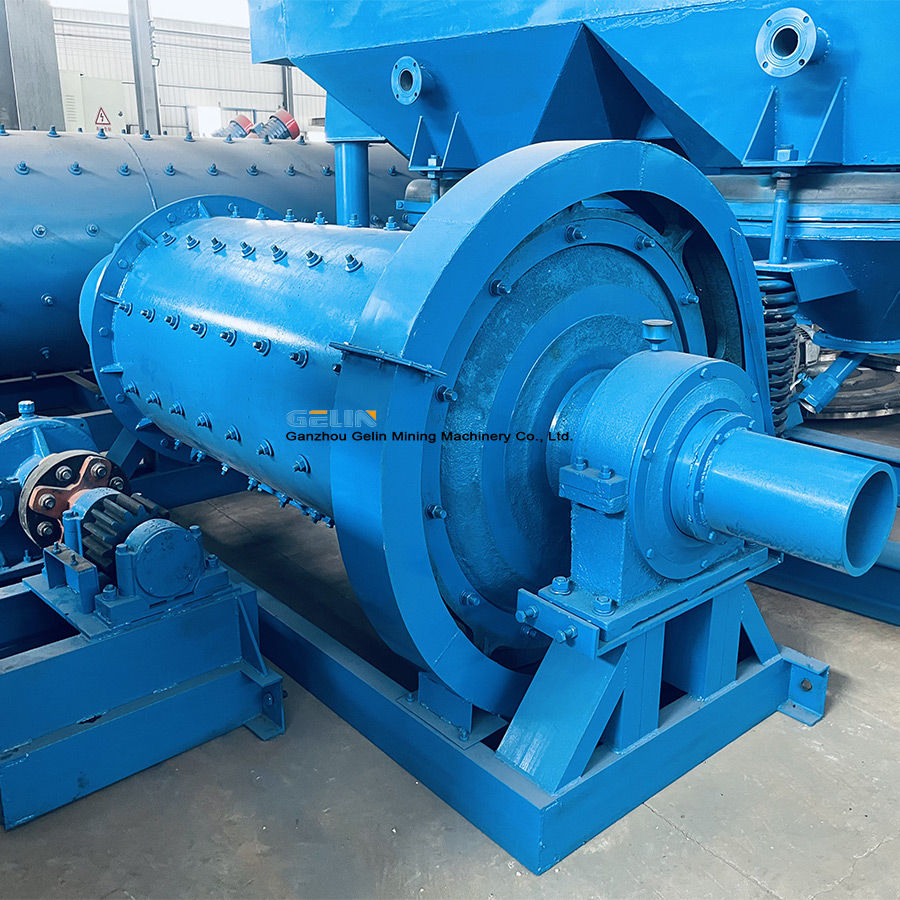

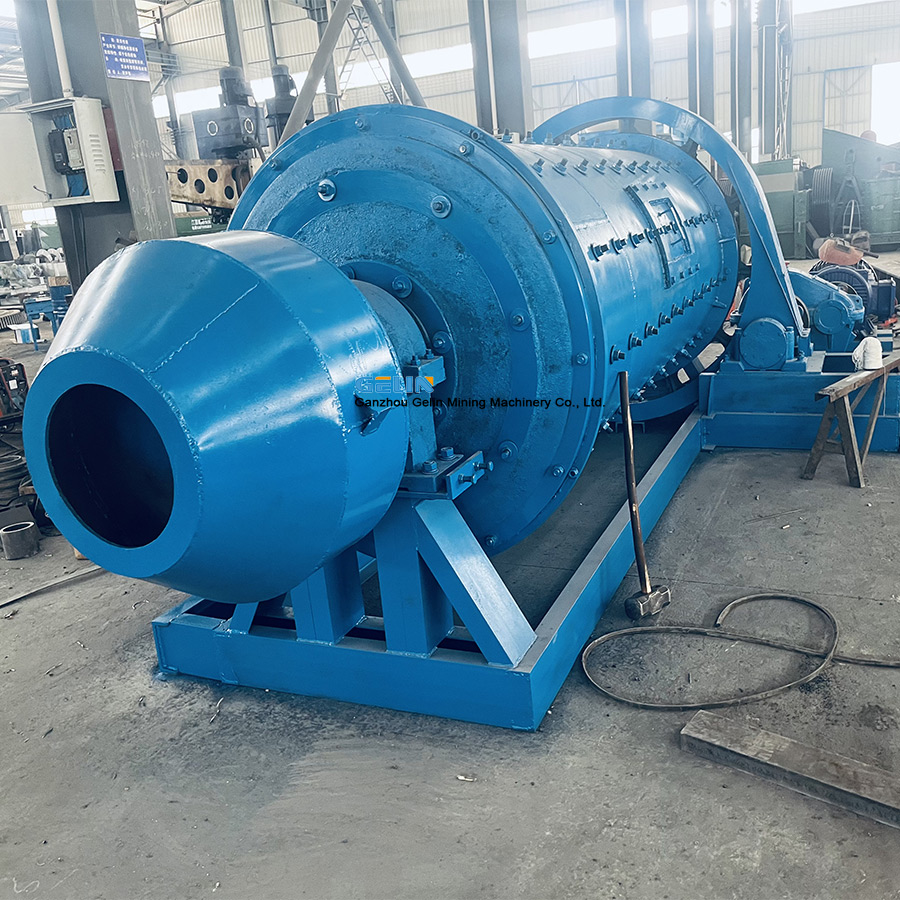

Pictures：
