Ganzhou Gelin Mining Machinery Co., Ltd.

Features

1. The enhancement rotor is designed with finite element analysis technology.
2. High crushing ratio. The crushing ratio ranges from 10 to 25 or even higher to 50.
3. The AMC alloy hammerhead enjoys a service life increased by 50~150%.
4. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.
5. The high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.

Working Principle

When the materials get into the crushers, they crumble after impacted by the rapidly rotating hammer; the crumbled materials then gain kinetic energy from the hammer and run towards the baffle and grate bar at a high speed; at the same time, the materials crash into each other and are crumbled for many times; materials which are narrower than the gap between grate bars get out from the gap while larger materials crumble after impacted, grinded, and extruded once again on the grate bar before they are squeezed out from the gap by the hammer, so as to get products of needed particle size.

Parameter

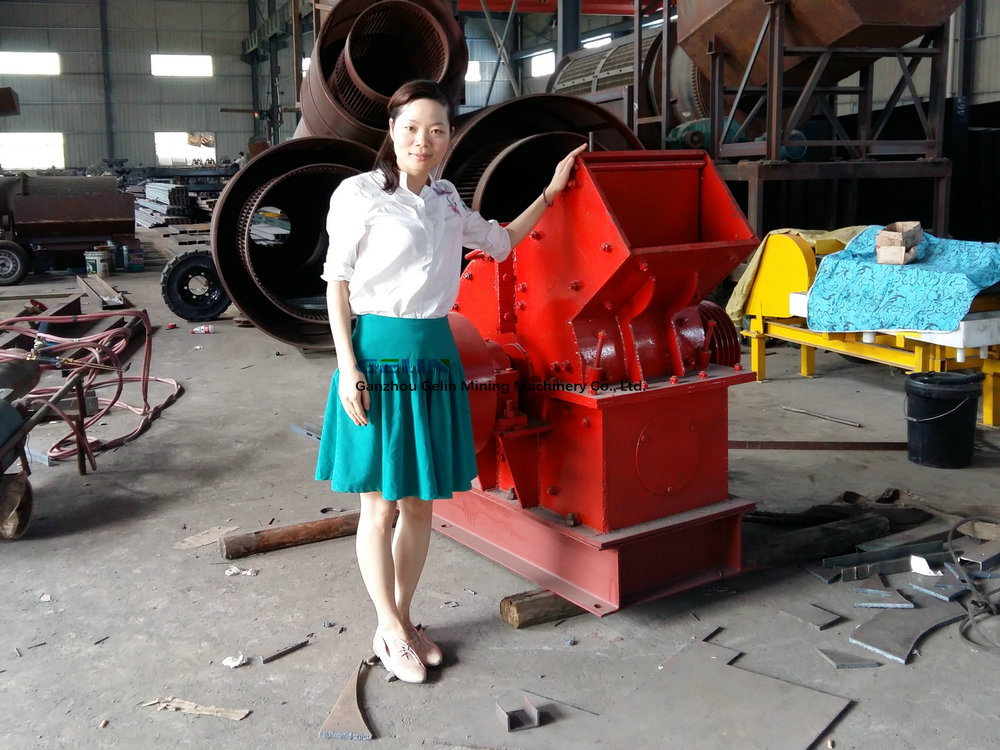

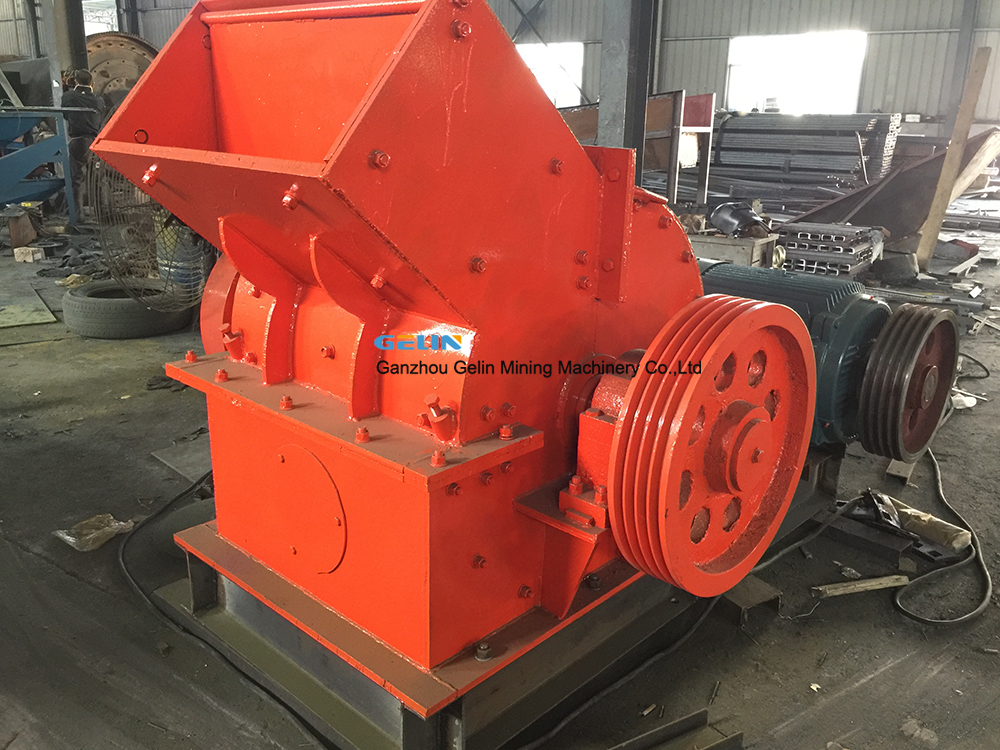

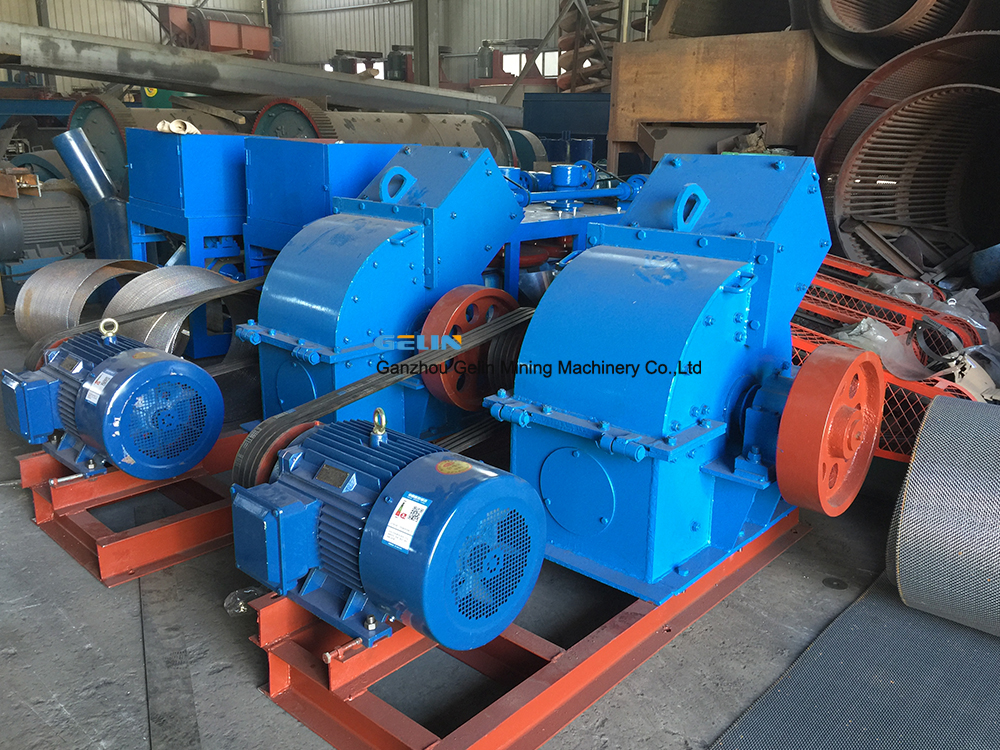

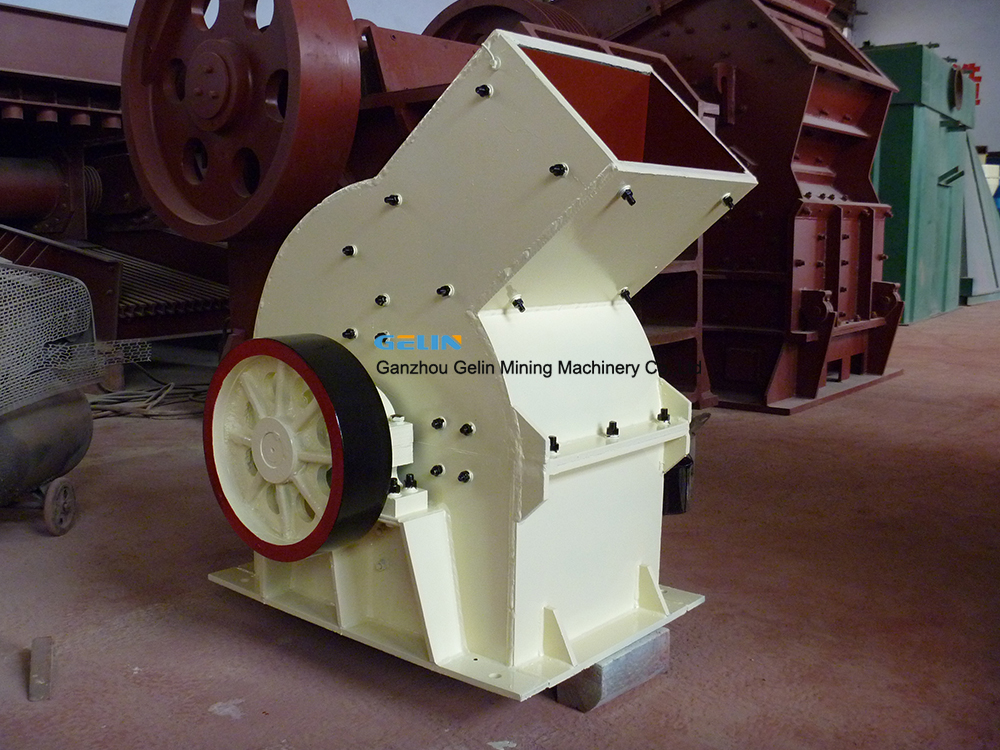

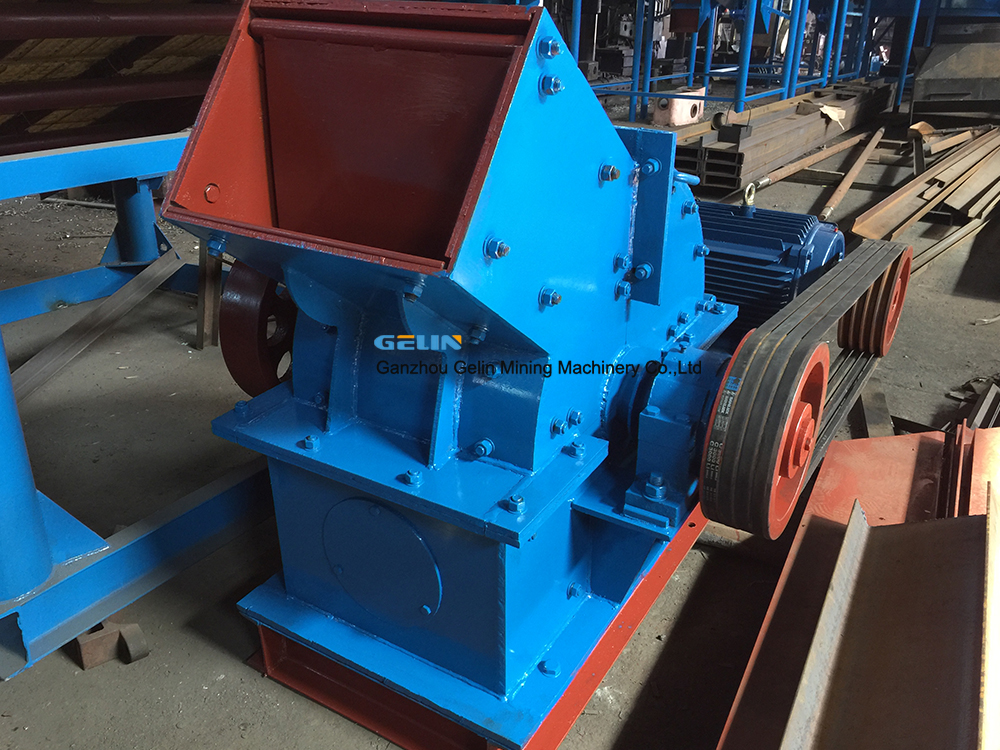

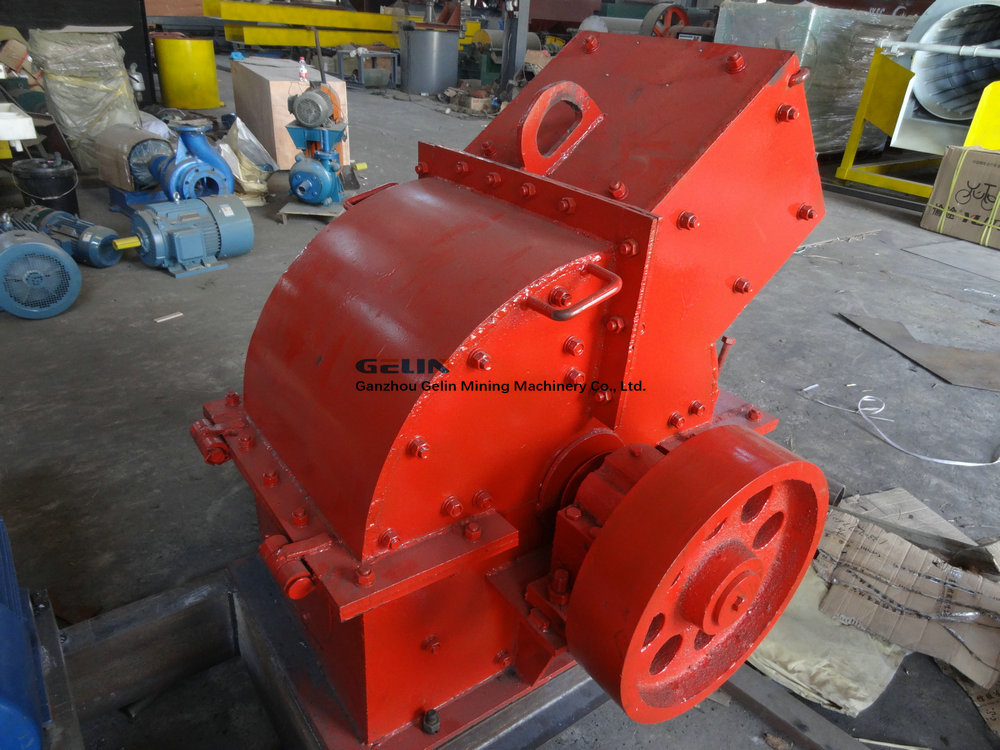

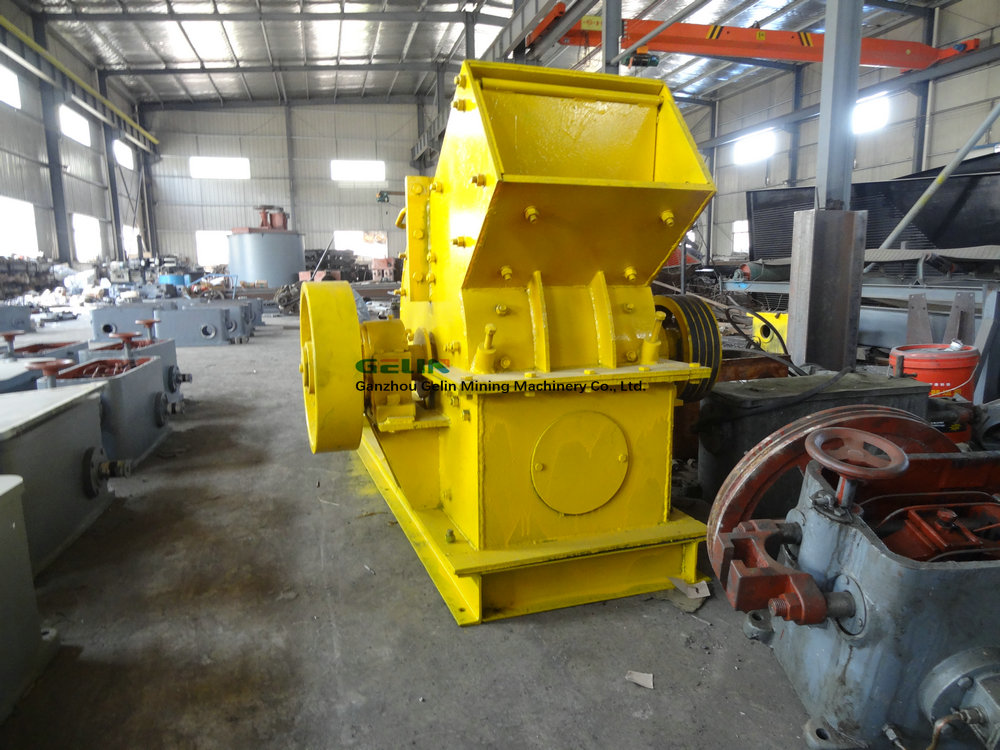

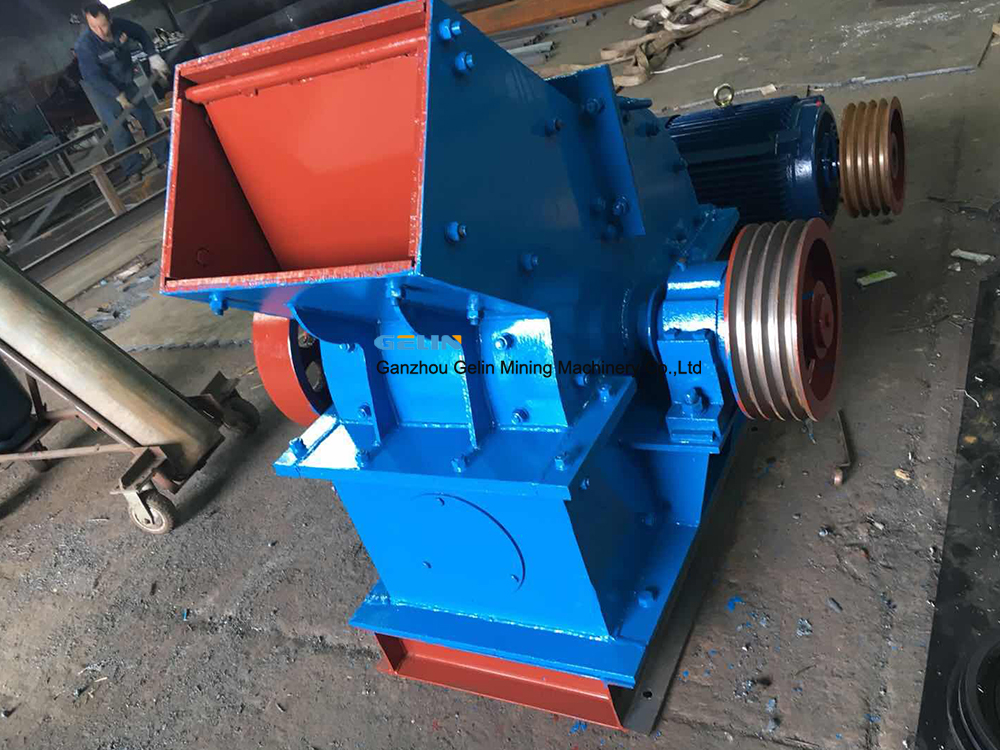

Pictures
