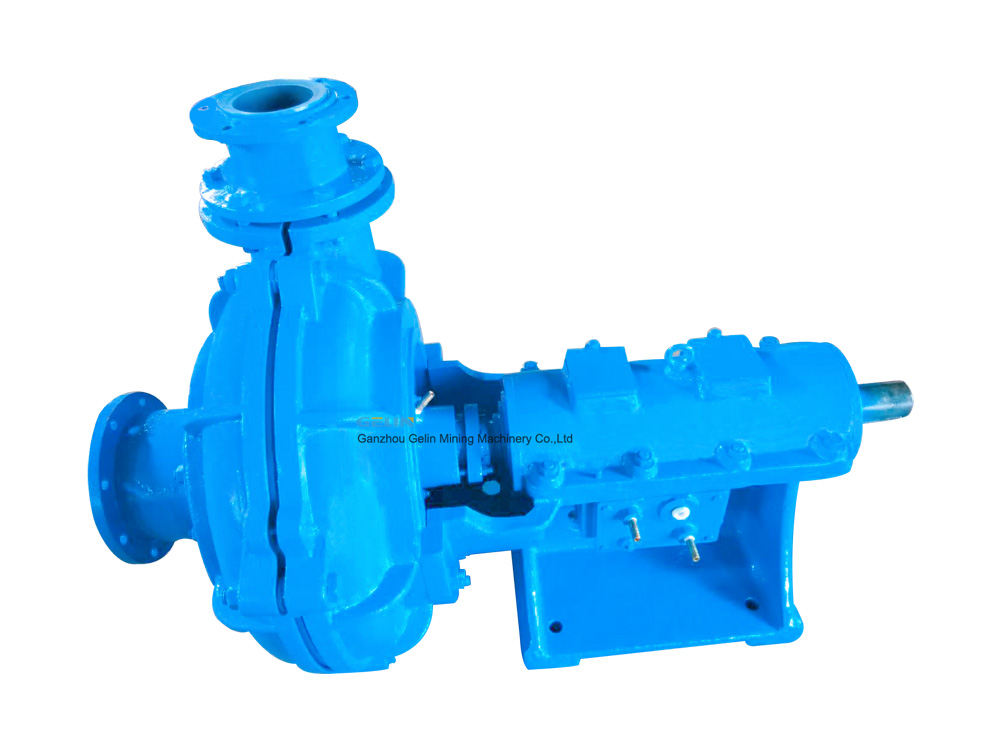

Slurry Pump

M、AH and HH pumps are cantilever and horizontal centrifugal slurry pumps, which are suitable for conveying strong abrasion and high concentration slurry in metallurgical, mining, coal, electric power, building materials and other industrial departments. This type of pump can also be used in series at multiple levels. The pump body of M and AH pumps is provided with replaceable wear-resistant metal lining or rubber lining, and the impeller is made of wear-resistant metal or rubber material. The inner lining and impeller of HH pump are only made of wear-resistant metal.

The shaft seal of M,AH and HH pumps can adopt packing seal or centrifugal seal. The outlet of the pump shall be installed at 45 ° intervals and rotated at eight different angles as required.

Get A Quote

Product Details

Model Meaning

For example : 10/8ST 一 AH(or M、HD)

10---Pump suction inlet diameter (inch)

8---Pump outlet diameter (inch)

HH---High lift slurry pump

M,AH---Slurry pump

ST--- Bracket type

Slurry Pump Selection

Referring to the pump performance curve, the selected flow range shall be:

1. M、AHpump

For high concentration and strong abrasive slag slurry, the flow range is 40-80%

For medium concentration, the flow range of medium abrasive slag slurry is 40 ~ 80%

For low concentration and low abrasive slag slurry, the flow range is 40 ~ 100%

2. HHpump

For medium concentration, the flow range of medium abrasive slag slurry is 40 ~ 100%

For low concentration and low abrasive slag slurry, the flow range is 40-120%

(the flow corresponding to the highest efficiency point at a certain speed is 100%)

Performance Parameters

Model	Power	Material		Water Performance						Impeller
		Protective Sleeve	Impeller	Flow		Head	Speed (r/min)	Efficiency (%)	NPSH (m)	qtl	Diameter (mm)
		Protective Sleeve	Impeller	m3/h	l/s	Head	Speed (r/min)	Efficiency (%)	NPSH (m)	qtl	Diameter (mm)
6/4E-AH	120	M	M	126-288	35-80	10-55	800-1600	58	2-2.5	2	365
6/4S-HH	560	M	M	324-720	90-200	30-118	600-1000	64	3-8	5	711
6S-H	560	M	M	468-1008	130-280	20-94	500-1000	65	4-12	5	711
8/6E-AH	120	M	M	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6R-AH	300	M	M	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6E-AH	120	M	M	324-720	90-200	7-49	400-1000	65	5-10	5	510
8/6R-AH	300	M	M	324-720	90-200	7-49	400-1000	65	5-10	5	510
8/6E-AH	120	M	M	360-828	100-230	7-70	400-1140	70	3-6	8	536
8/6R-AH	300	M	M	360-828	100-230	7-70	400-1140	70	3-6	8	536
8/6E-AH	120	RU	RU	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
8/6R-AH	300	RU	RU	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
8/6E-AH	120	M	M	288-648	80-180	5-47	400-1100	60	3-6	2	510
8/6R-AH	300	M	M	288-648	80-180	5-47	400-1100	60	3-6	2	510
8/6T-HH	1200	M	M	576-1152	160-320	32-95	450-723	65	6-10	5	965
10/8E-M	120	M	M	540-1228	150-340	15-61	600-1100	70	4.5-8	4	549
10/8R-M	300	M	M	540-1228	150-340	15-61	600-1100	70	4.5-8	4	549
10/8E-M	120	M	M	504-1080	140-300	18-66	700-1100	62	4.5-7.5	4	549
10/8R-M	300	M	M	504-1080	140-300	18-66	700-1100	62	4.5-7.5	4	549
10/8E-M	120	M	M	666-1440	185-400	14-60	600-1100	73	4-10	5	549
10/8R-M	300	M	M	666-1440	185-400	14-60	600-1100	73	4-10	5	549
10/8E-M	120	RU	RU	540-1188	150-330	10-42	500-900	79	5-9	5	549
10/8R-M	300	RU	RU	540-1188	150-330	10-42	500-900	79	5-9	5	549
10/8ST-AH	560	M	M	612-1368	170-380	11-61	400-850	71	4-10	5	686
10/8ST-AH	560	RU	RU	540-1188	150-330	12-50	400-750	75	4-12	5	686
12/10ST-AH	560	M	M	936-1980	260-550	7-68	300-800	82	6	5	762
12/10ST-AH	560	M	M	720-1620	200-450	7-45	300-650	80	2.5-7.5	5	762
14/12ST-AH	560	M	M	1260-2772	350-770	13-63	300-600	77	3-10	5	965
14/12ST-AH	560	RU	RU	1152-2520	320-700	13-44	300-500	79	3-8	5	965
16/14ST-AH	560	M	M	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
16/14TU-AH	1200	M	M	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
16/14ST-AH	560	M	M	1699-3798	472-1055	14-75	250-550	75	4.5-6	8	1067
16/14TU-AH	1200	M	M	1699-3798	472-1055	14-75	250-550	75	4.5-6	8	1067
18/16ST-AH	560	M	M	2160-5040	600-1400	8-66	200-500	80	4.5-9	5	1245
18/16TU-AH	1200	M	M	2160-5040	600-1400	8-66	200-500	80	4.5-9	5	1245
20/18TU-AH	1200	M	M	2520-5400	700-1500	13-57	200-400	85	5-10	5	1370

Note:

1. "RU" represents rubber material and "M" represents alloy wear-resistant material.

2. The recommended flow range is 50% Q' ≤ Q ≤ 110% Q' (Q' ≈ corresponding to the flow at the highest efficiency point)

3. "NPSH" refers to the NPSH value corresponding to the recommended Q point at the maximum speed.

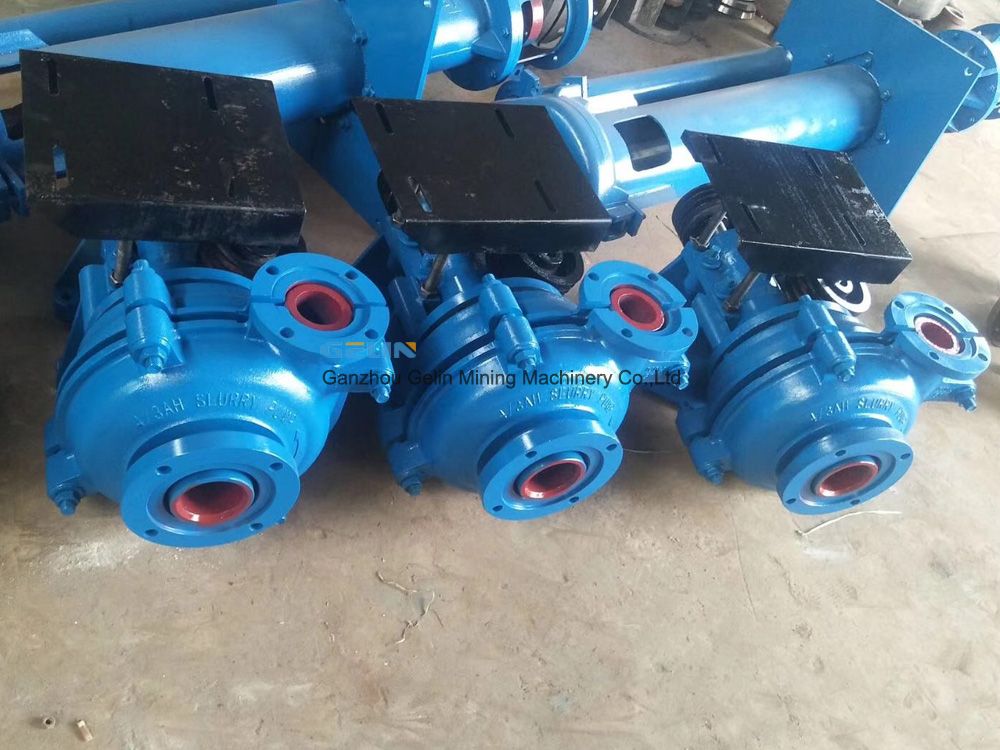

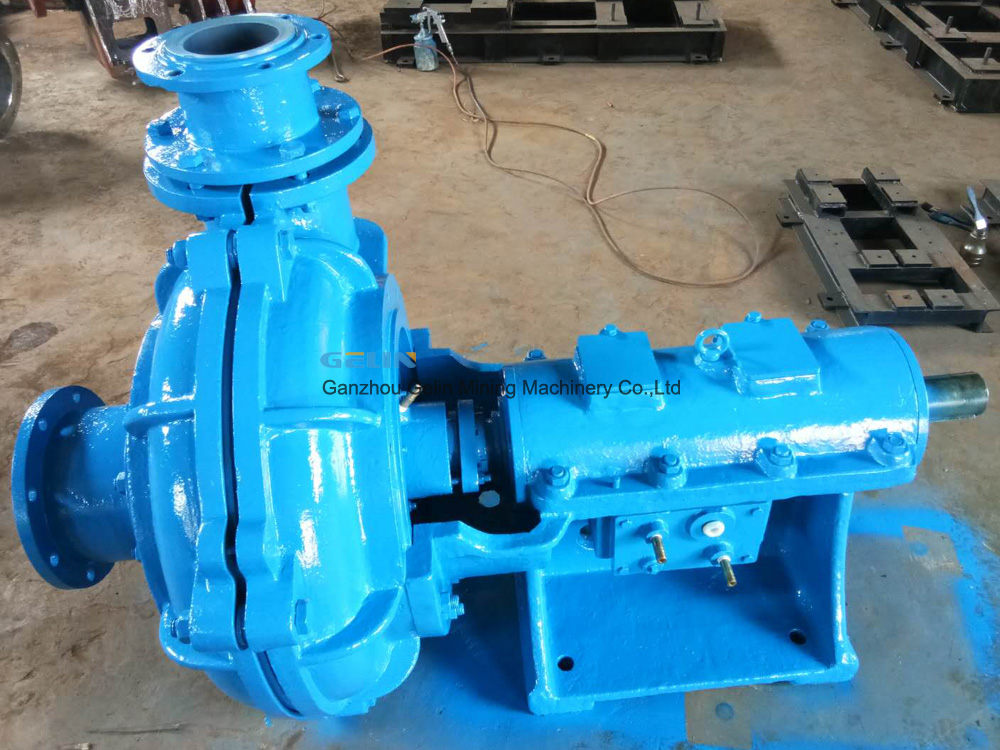

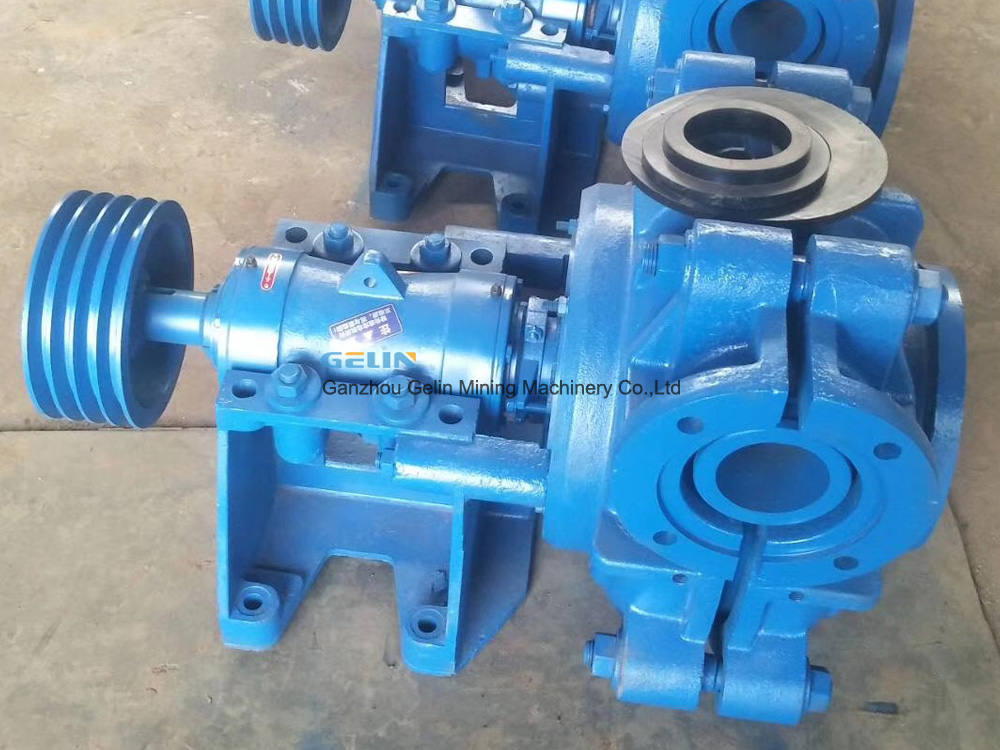

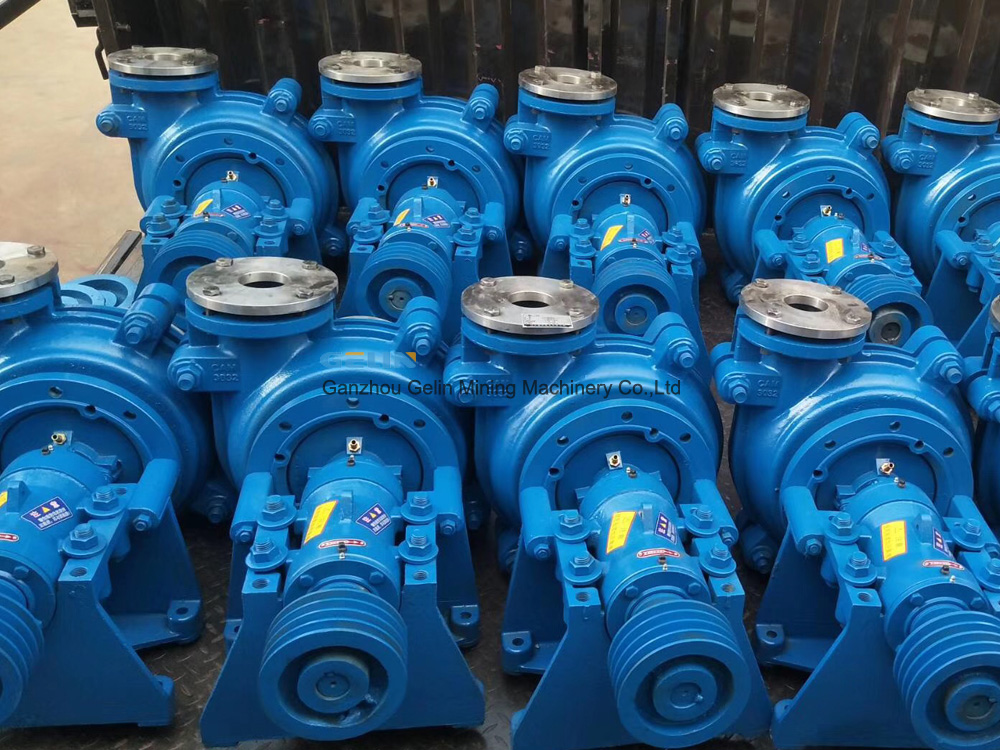

Detailed Photos
