Agitating Tank

Mineral Agitation Barrels/Agitation Tank of is used to mix the pulp with chemicals, preparing for flotation separation.The agitation tank is mainly applied in slurry stirring before flotation, chemical and construction industry, cyanide chemical plant,sewage treatment plant,and coal plant, etc.. It used the density of less than 30% and frozen composition of less than 1mm.

Get A Quote

Product Details

Features

1.Advanced structure of impeller, strong stirring ability;

2.The cylinder is lined with wear-resistant rubber with strong resistance to wear and corrosion;

3.Stable operation, convenient maintenance;

4.Less power consumption.

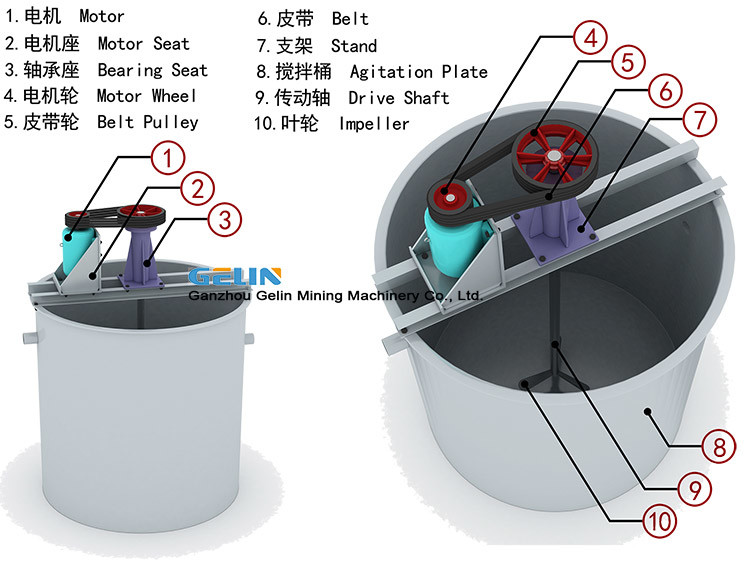

Structure

Working Principle

When the machine works,under the rotation of the impeller,the ore pulp and the reagents will have big and small circulation which will be evenly mixed,and the mixed suspension liquid will be discharged from the overflow port.

Parameter

Product Name	Specification Model	Effective Volume m³	Tank size (mm)		Impeller (mm)		Motor Power (Kw)	Weight
Product Name	Specification Model	Effective Volume m³	ID	Height	Diameter	Rpm	Motor Power (Kw)	Kg
Mine with Stir Mix Slot	XB-500	0.124	500	500	150	100	1.5	468
	XB-1000	0.58	1000	1000	250	530	1.5	531
	XB-1500	2.2	1500	1500	400	340	3	816
	XB-1600	2.8	1600	1600	400	320	5.5	1100
	XB-2000	5.6	2000	2000	550	290	11	1500
	XB-2500	11.2	2500	2500	650	275	15	3400
	XB-3000	19	3000	3000	750	250	22	5190
	XB-3550	31.5	3550	3550	850	230	30	7280
	XB-4000	45	4000	4000	1000	210	37	12510
New Type Stir Mix Slot	RJ-1000 / RJW-1000	0.7	1000	1000	250	610	1.5	532
	RJ-1250 / RJW-1250	1.4	1250	1250	310	492	2.2	685
	RJ-1600 / RJW-1600	2.8	1600	1600	400	305	4	1168
	RJ-2000 / RJW-2000	5.6	2000	2000	500	282	7.5	2205
	RJ-2500 / RJW-2500	11.2	2500	2500	625	244	11	3497
	RJ-3150 / RJW-3150	22	3150	3150	788	194	15	4648
	RJ-3550 / RJW-3550	31.5	3550	3550	888	172	18.5	7074
	RJ-4000 / RJW-4000	45	4000	4000	1000	153	1.1	8918

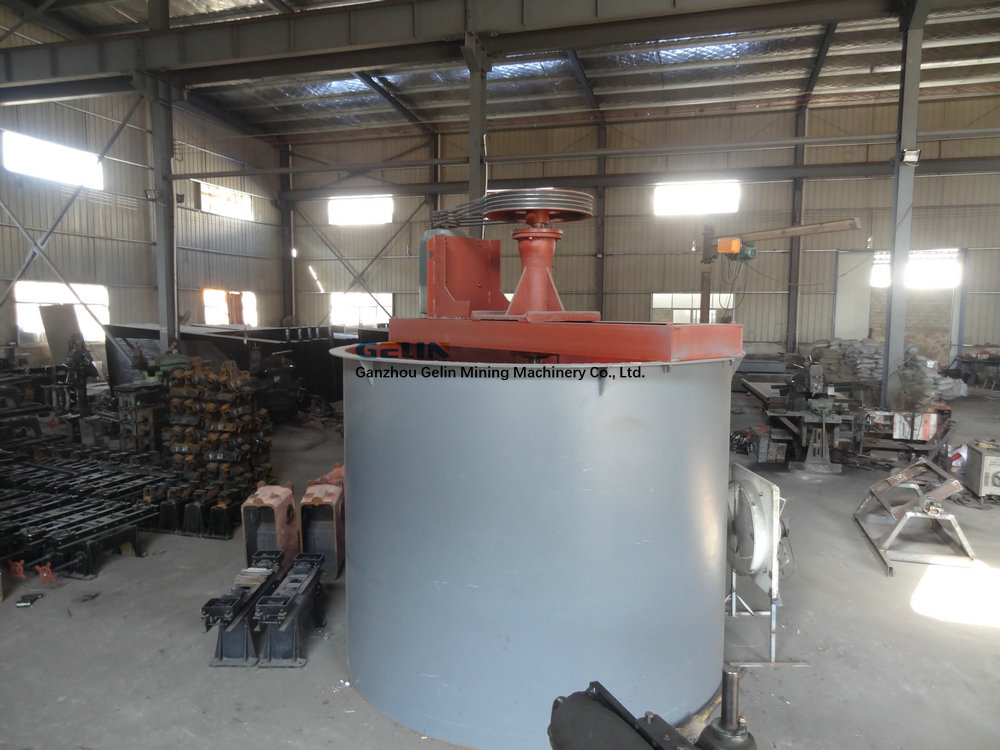

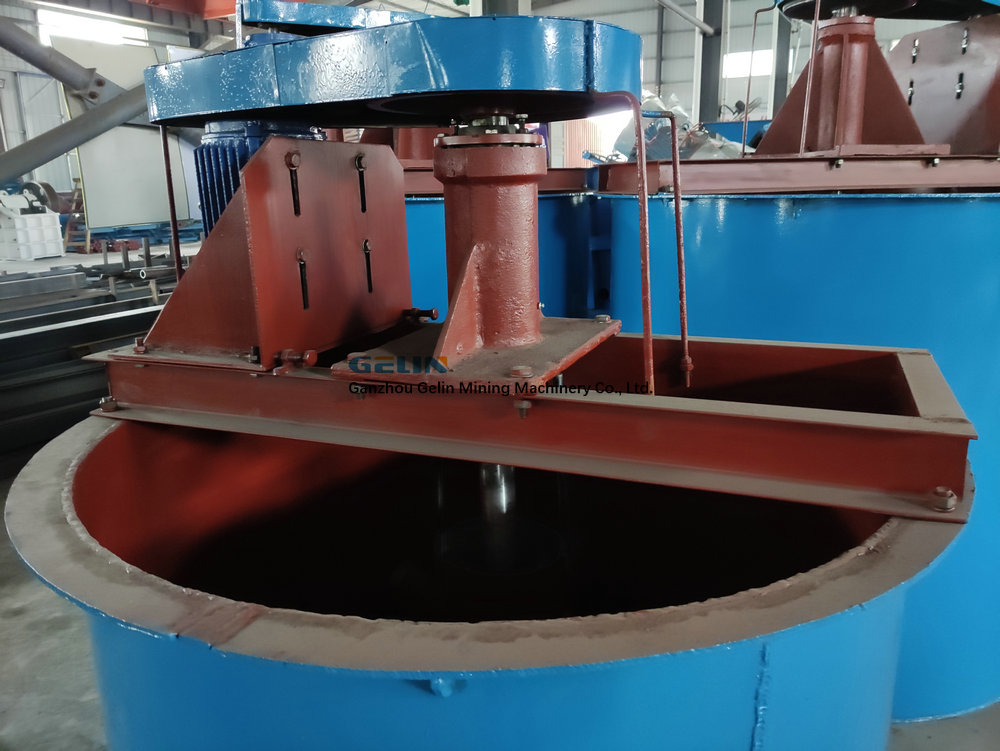

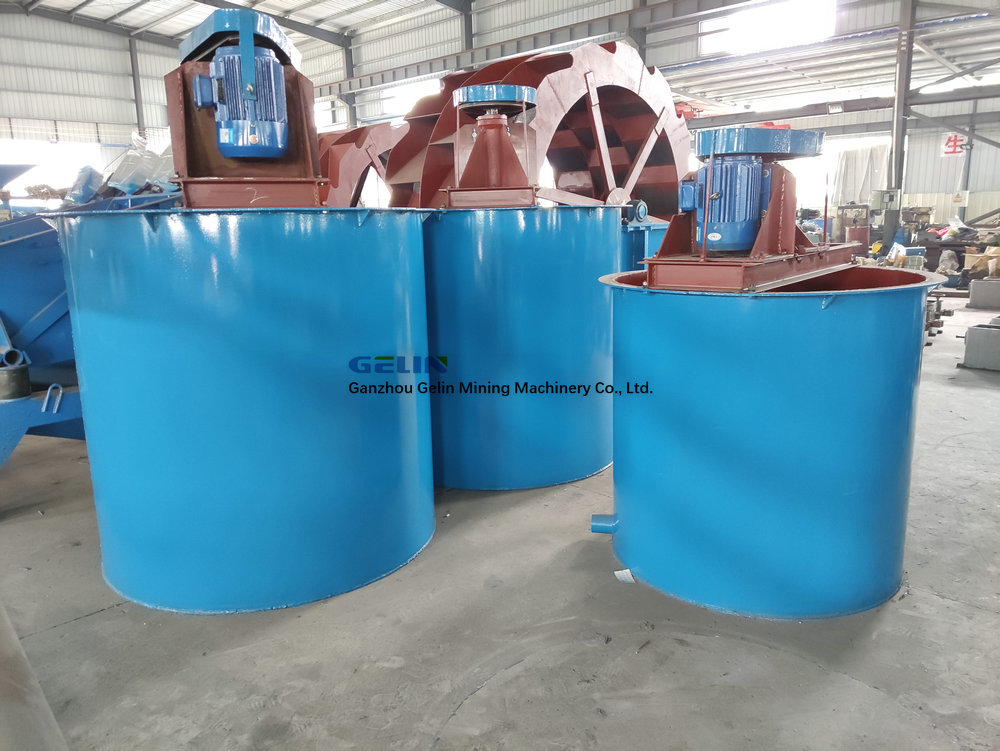

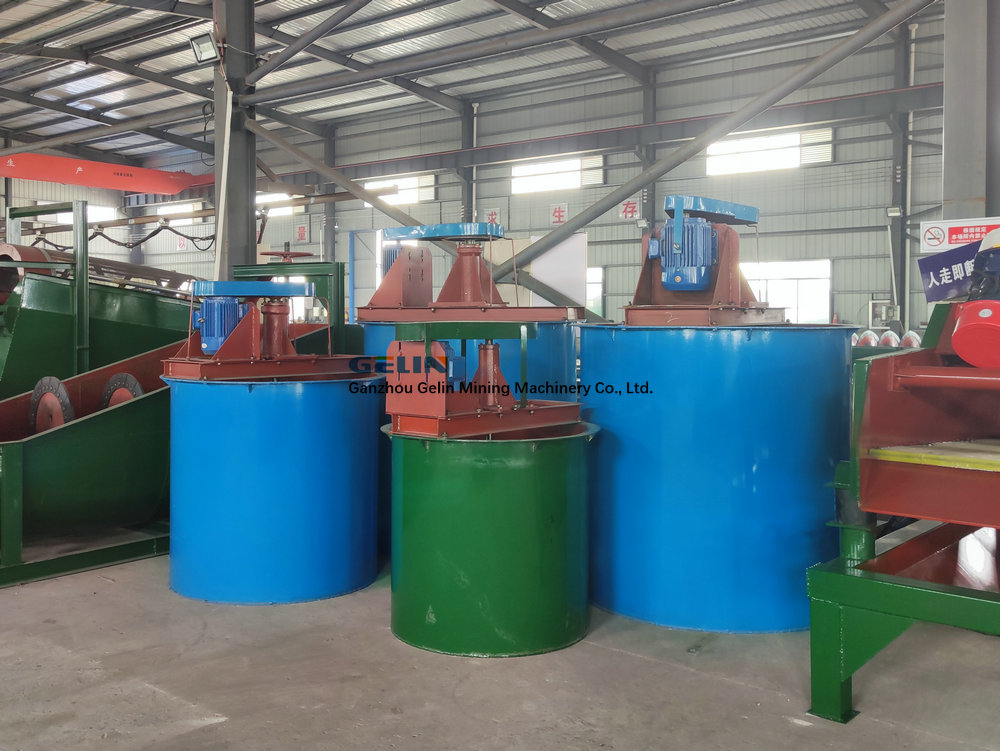

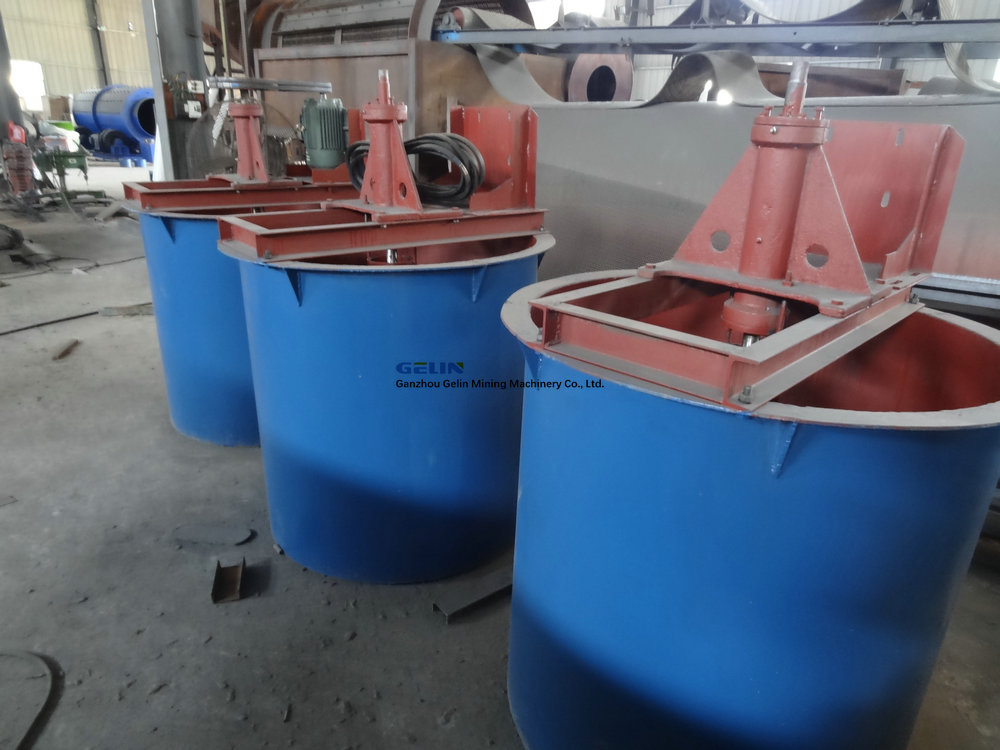

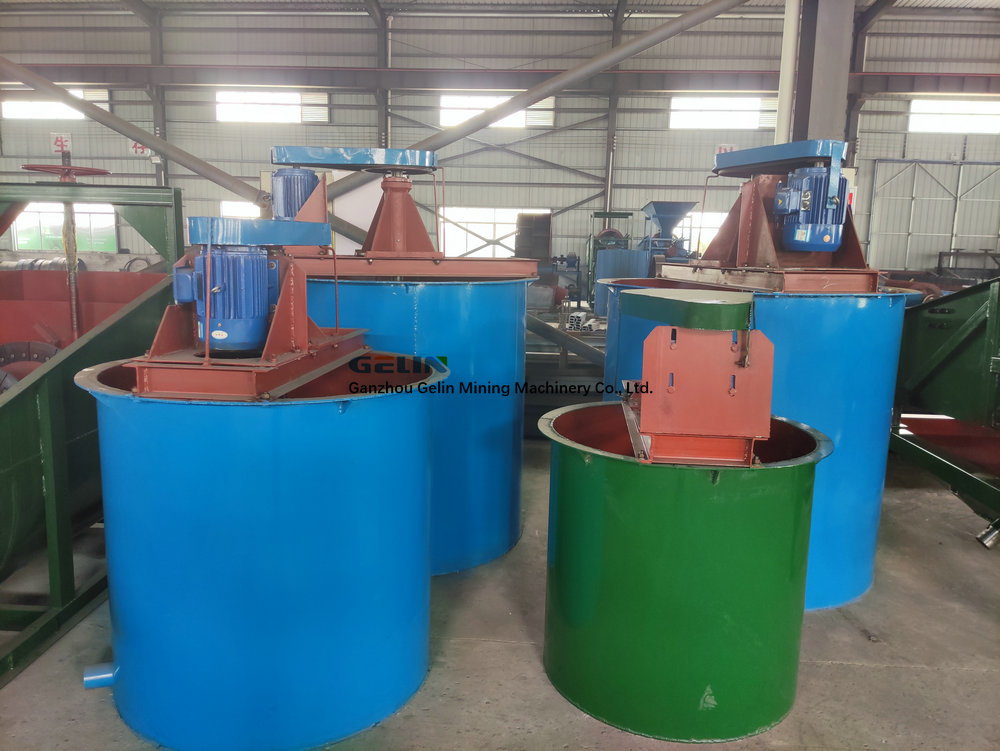

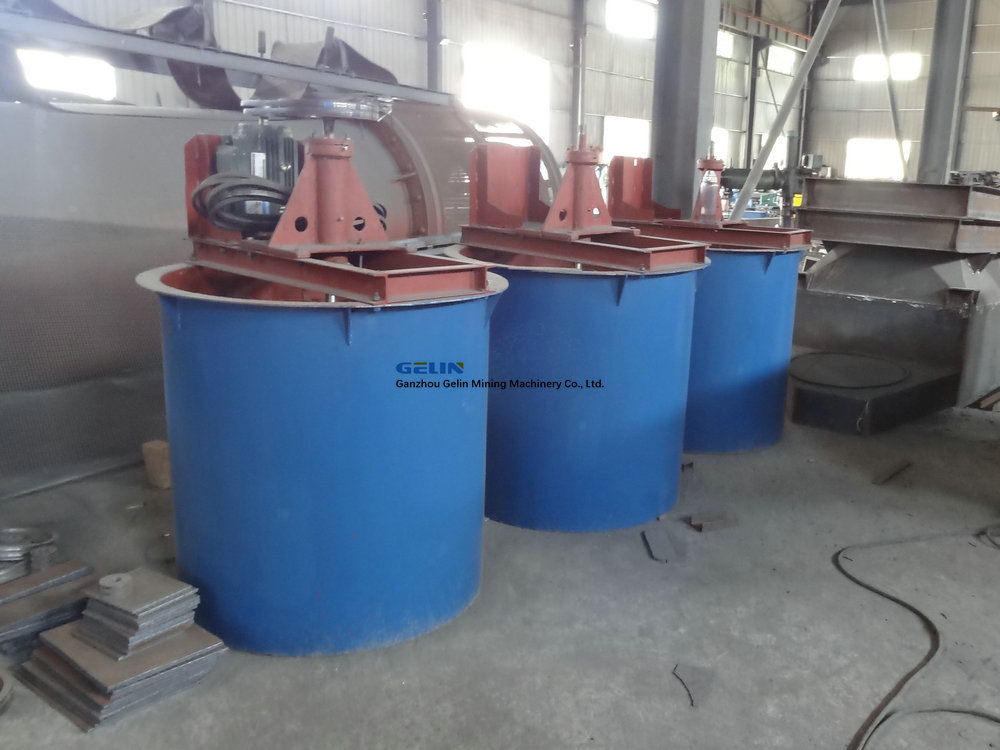

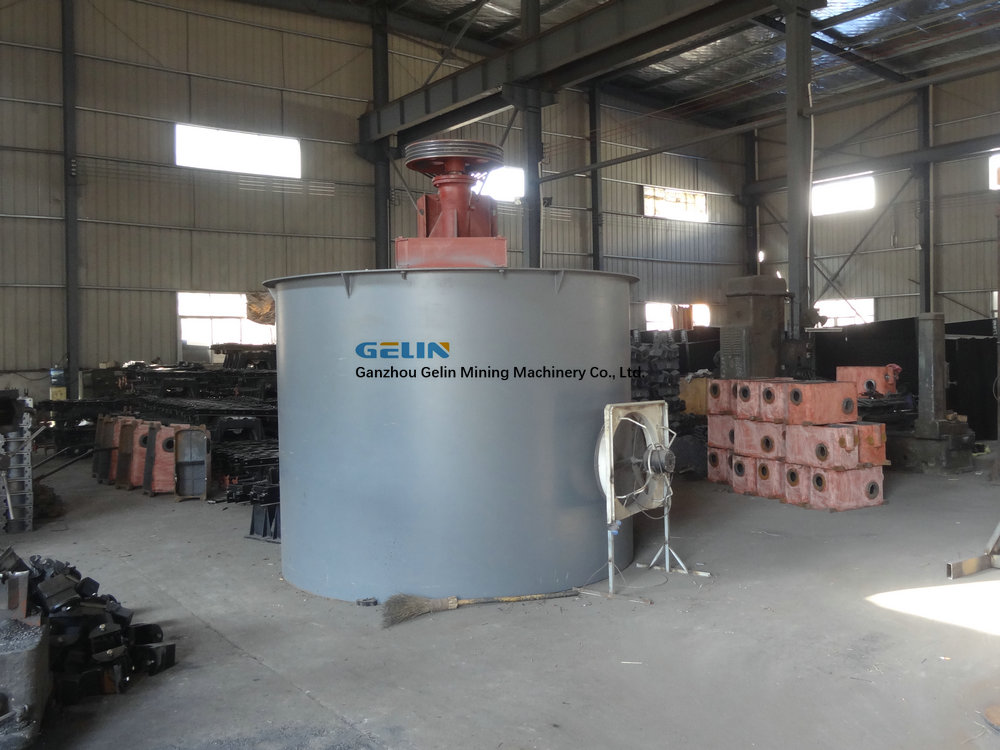

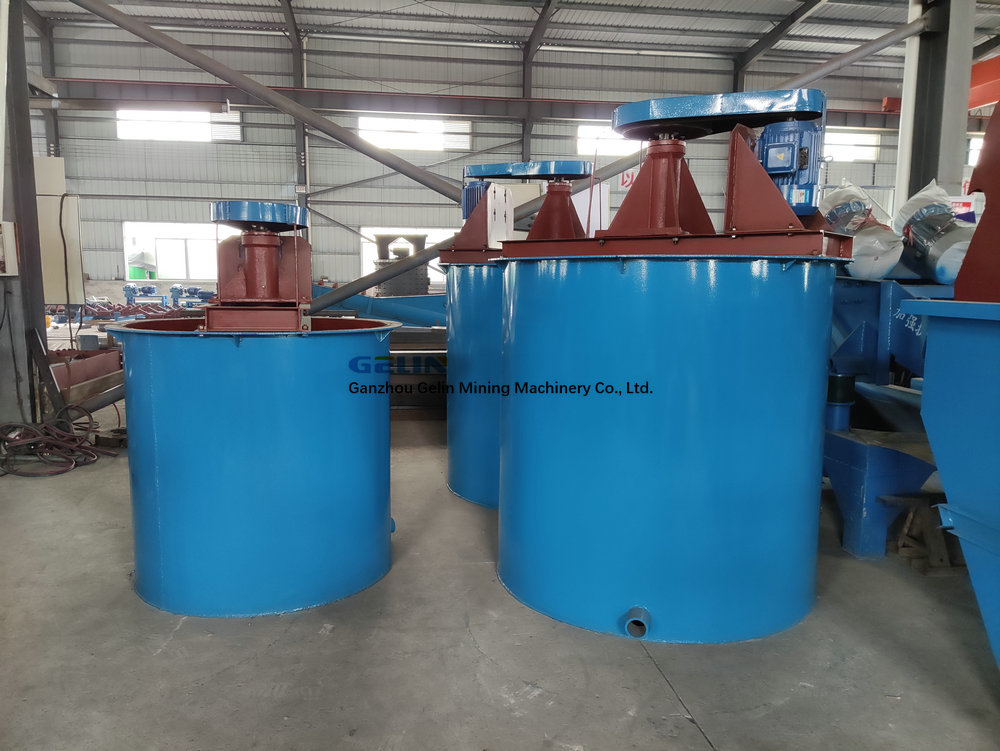

Pictures
