Ganzhou Gelin Mining Machinery Co., Ltd.

Features

1. Large air suction volume, low power consumption;
2. Long service life of wear parts;
3.Each cell with air suction, slurry suction, flotation separation and flotation separation is easy to form flotation circle without any other accessory equipment, which is flexible to change process flow;
4. The rational slurry circulation minimizes coarse sand sediments which is conducive to flotation of coarse particle;
5. Auto-control device of slurry volume contributes to flexible operating;
6. Backward type Impeller with upper and lower leaves, the upper blade generates upper circulation the lower blade generates lower circulation;
7. Mechanical stirring, self- air suction, self-slurry suction.

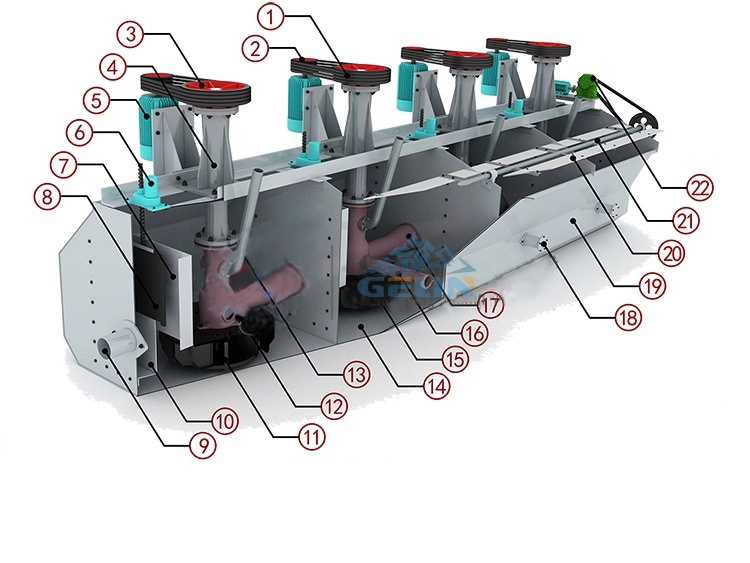

Structure

1. Belt	12.Flotation Column
2. Motor Wheel	13.Air Inlet Pipe
3. Pulley	14. Flotation Cel
4. Bearing Seat	15.Guide Impe
5. Motor	16.Feeding Branch Pipe
6. Screw Lifter	17.Feeding Pipe
7. Partition Plate	18.Branch Inlet
8. Flashboard	19.Flotation Machine
9. outlet	20. Scraper Blade
10. Discharge Hopper	21.Scraper Device
11. Rotor	22.Scraper Drive

Working principle

When flotation machine is working, the pulp in the cell is breathed from the surrounding in the between of impellers. At the same time, the low pressure air blew by air blower enters in though air distributor too. Pulp and air mixture totally, and then enter into the cell from the impeller. When bubbles rises foam stability region, they are collected together and flow out into bubble cell. Some other pulp flows towards the bottom of impeller, and is mixed by impeller with air again to form mineral laden bubbles. The rest will flow towards next cell until leaving tailings.

Parameter

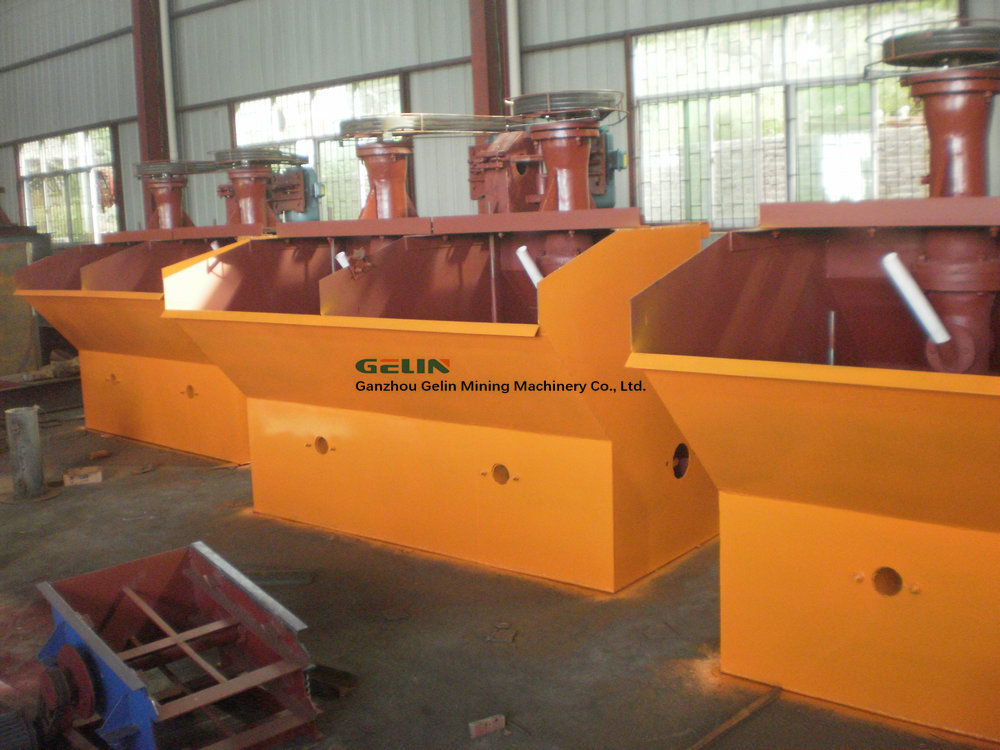

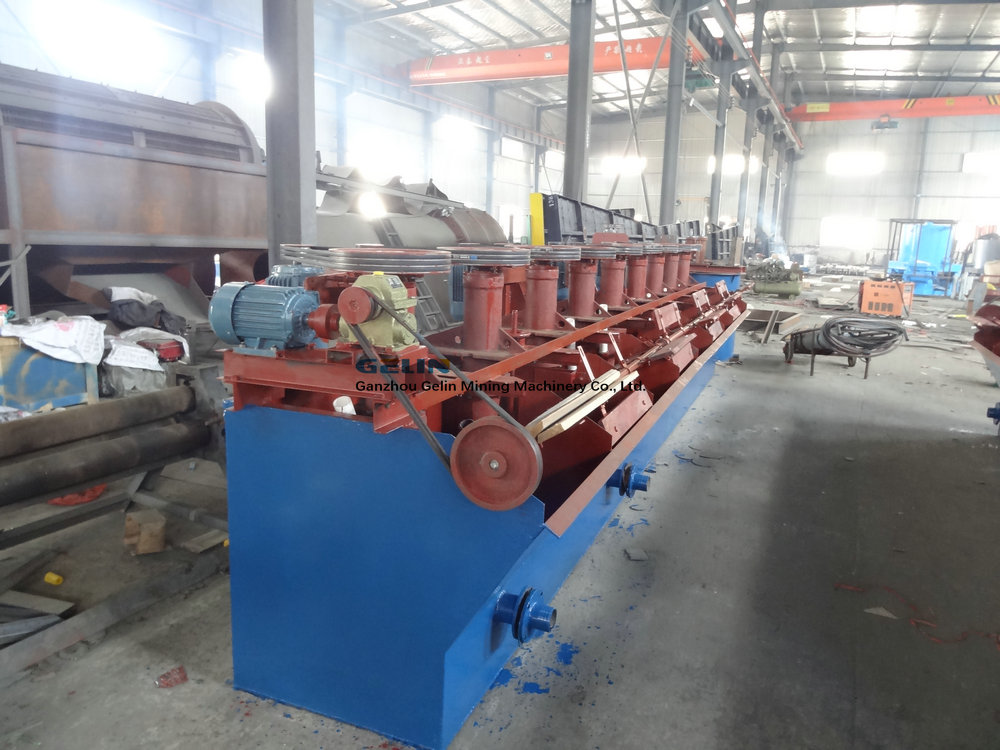

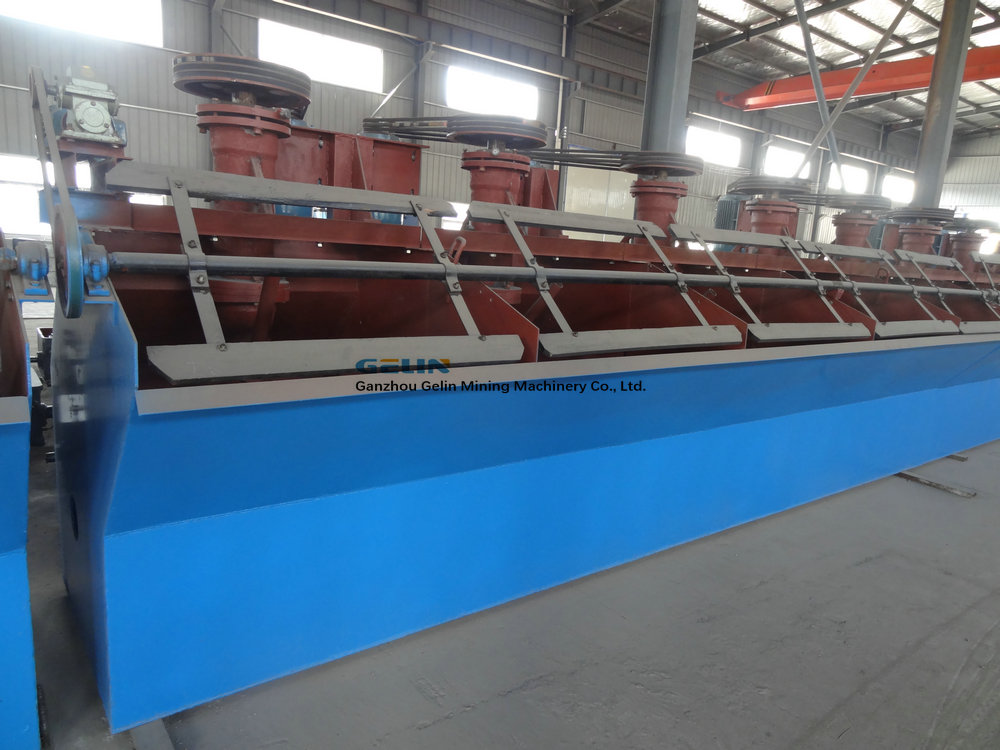

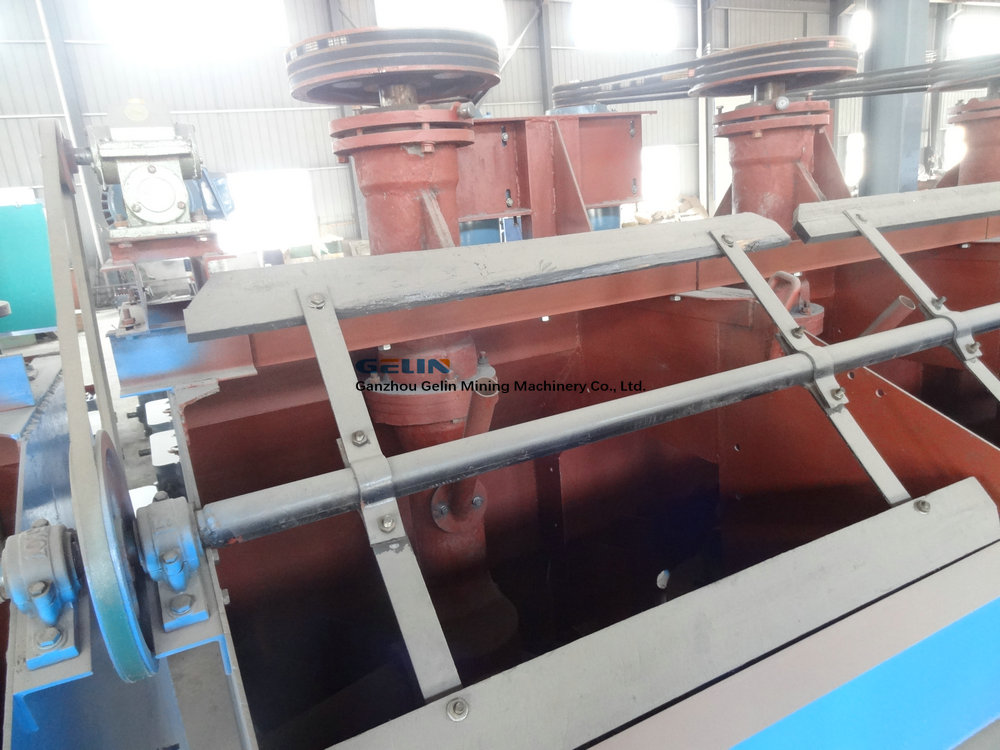

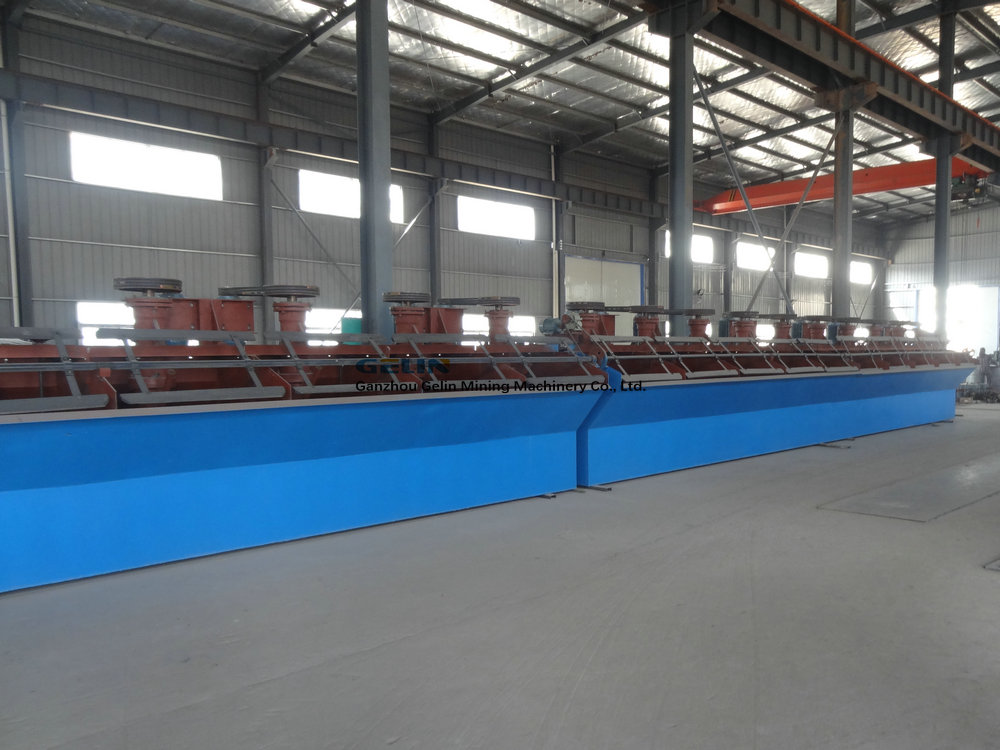

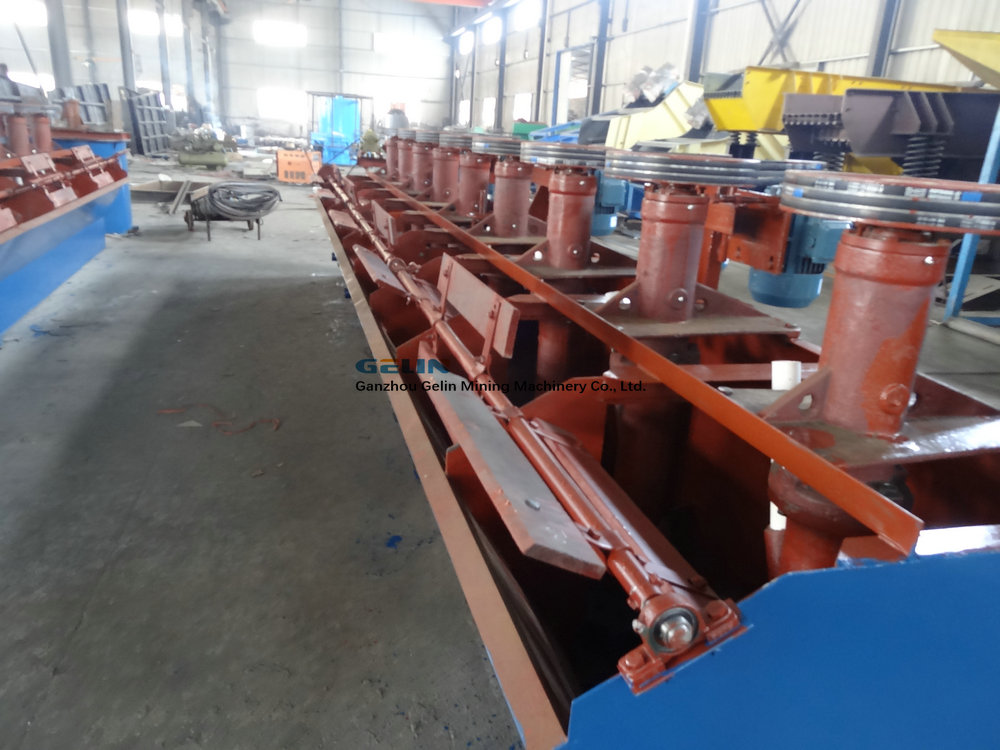

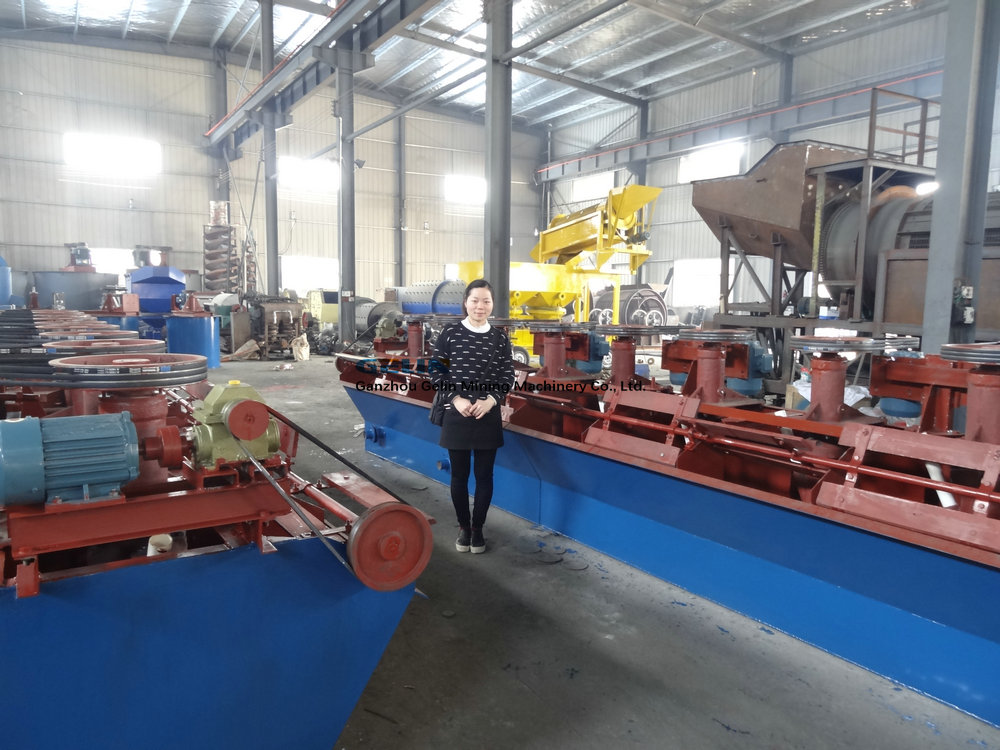

Pictures
