Features

-- Ideal equipment for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregate;
-- High capacity from 10-100tph;
-- Heavy duty conveying paddles;
-- Fabricated with heavy duty tubs;
-- Oversize bearings and gears;
-- Thick-walled shafts;
-- Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox;
-- The compound drive divides the operating load over an optimal combination of oversized helical and spur gears;
-- Continuous grinding and abrading log washer paddles;
-- Adjustable water discharge gates on both sides of lower end of the tub.

Working Principle

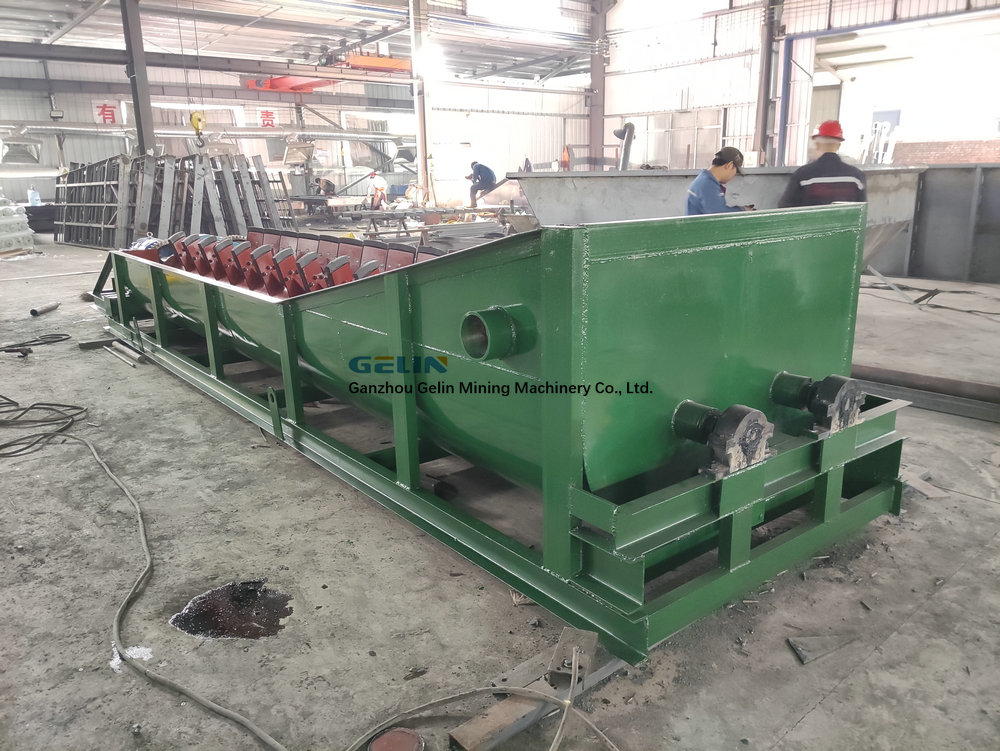

This machine drive the spiral stirring shaft depends on speed reducer and rotate in different directions, and the minerals which enter the tank were washed by water and stir strongly by blade. The sewage was overflowed at the end of tank, the cleaned minerals were lifted up along the blade and discharged at the beginning of tank.

Parameter

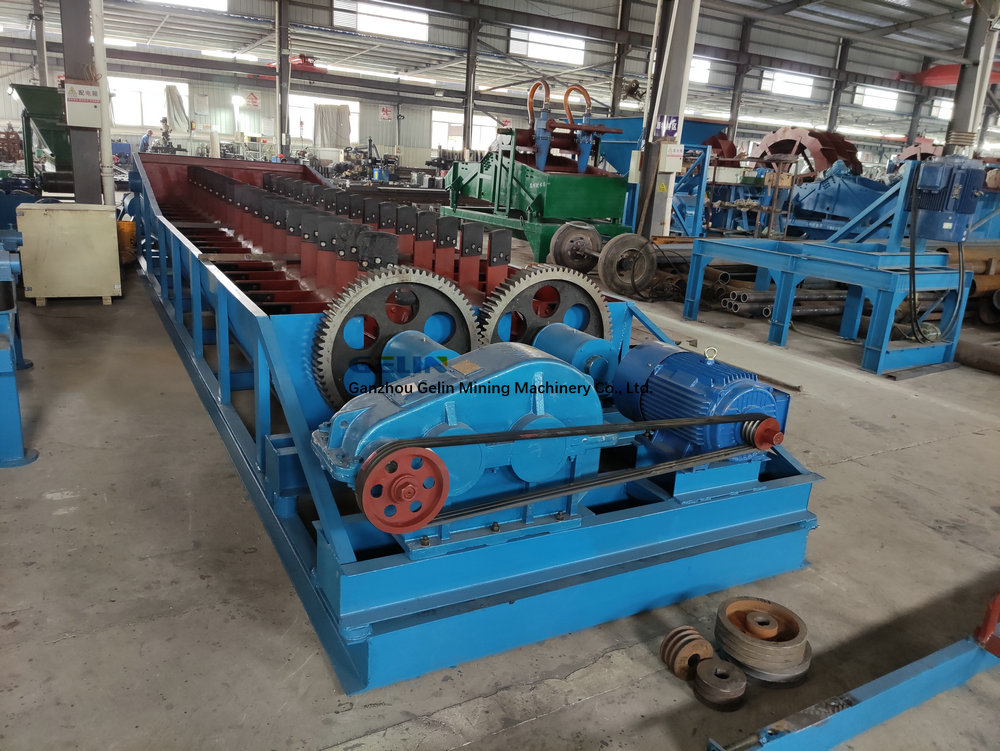

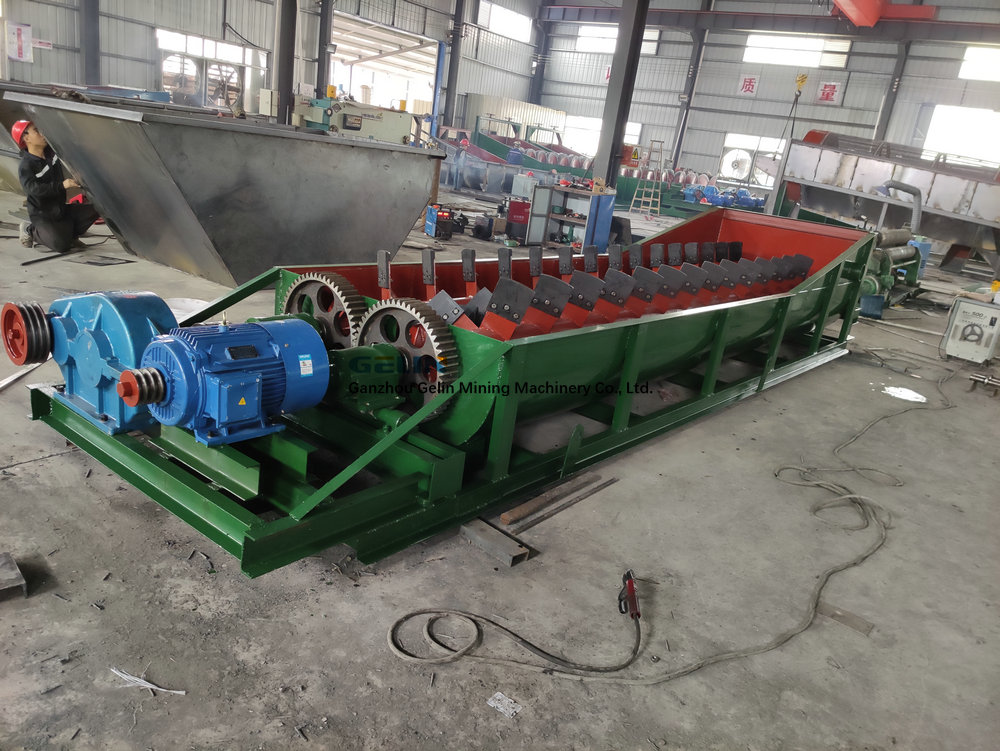

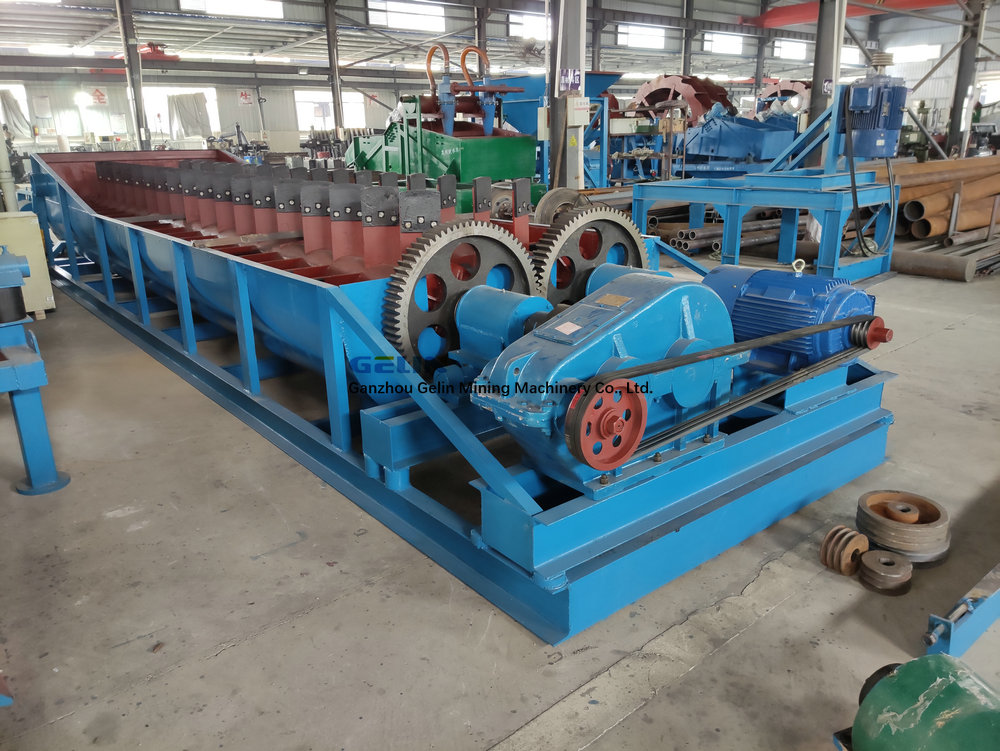

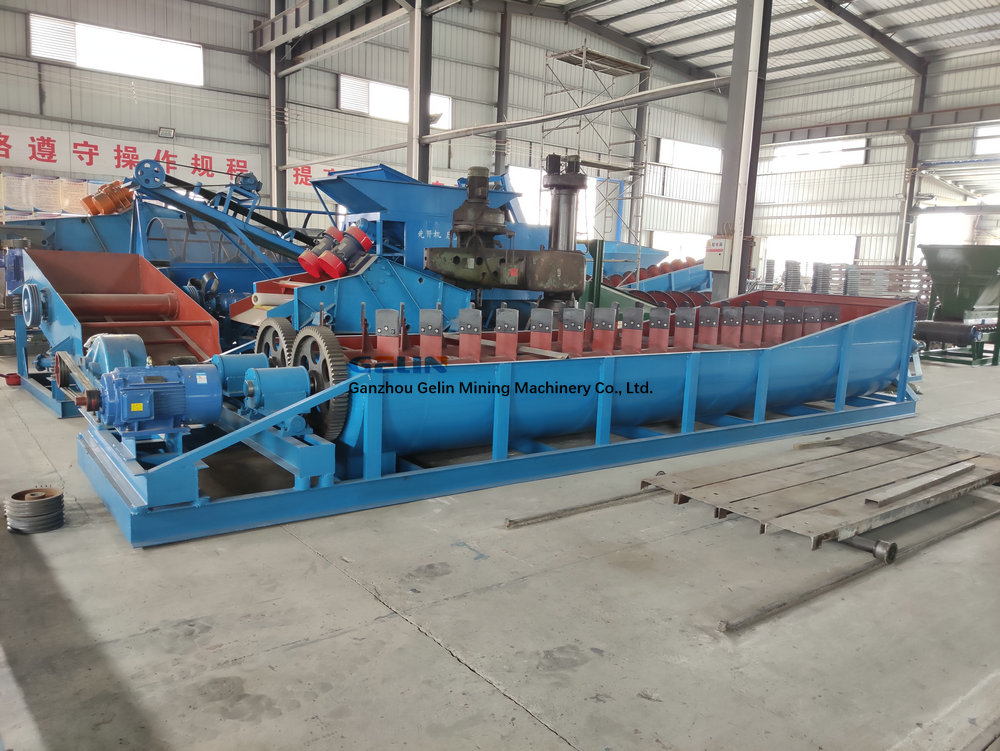

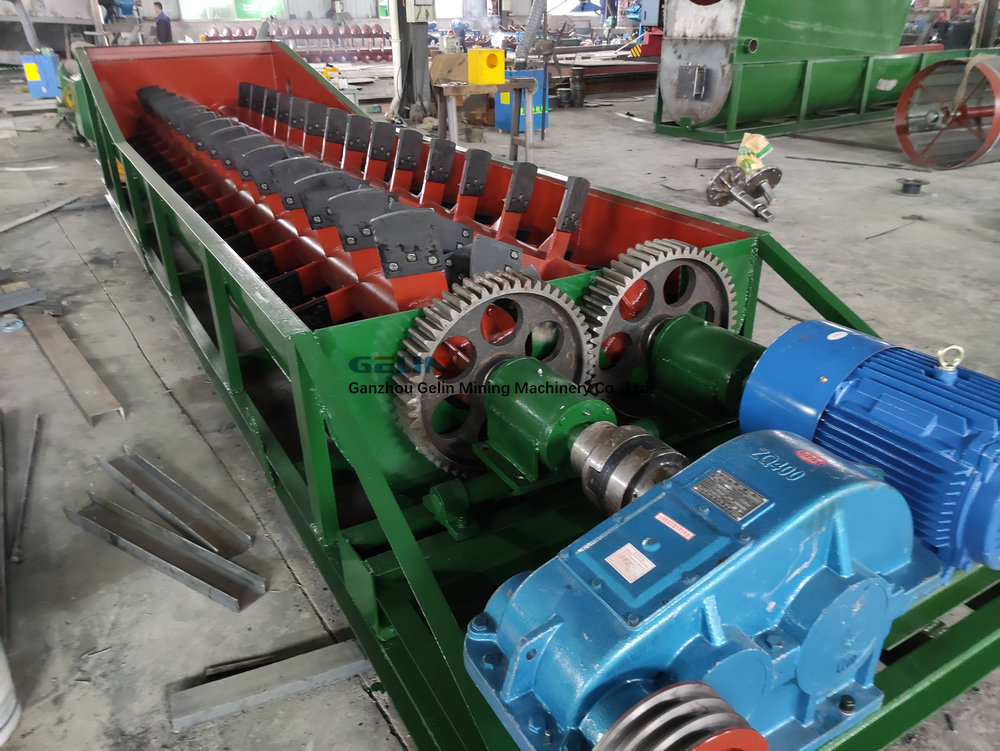

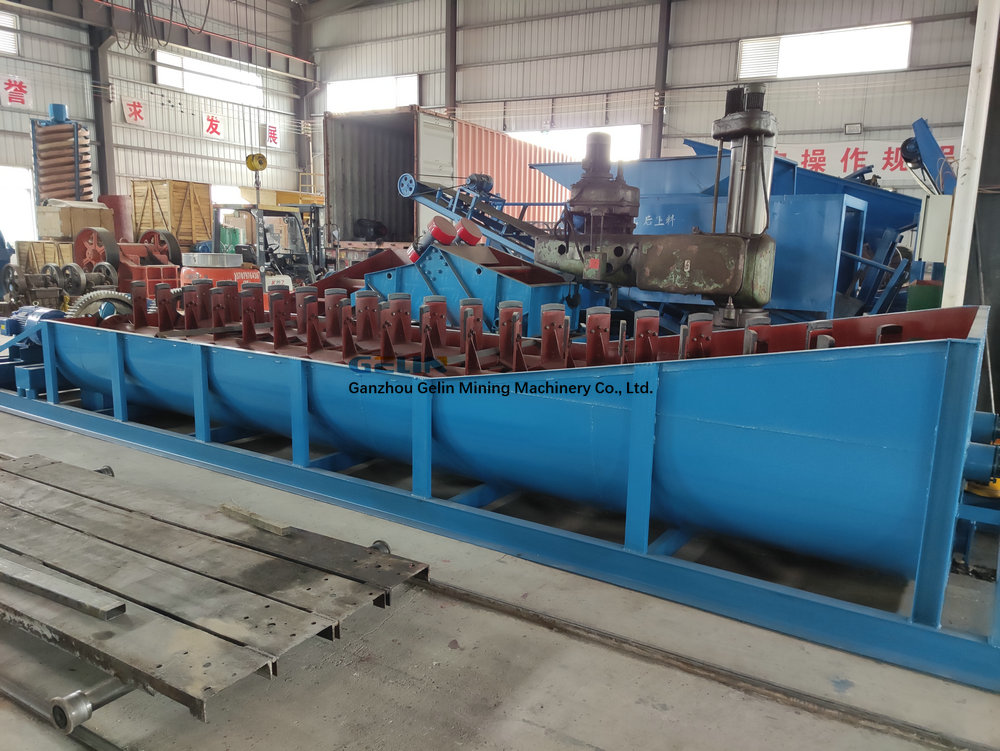

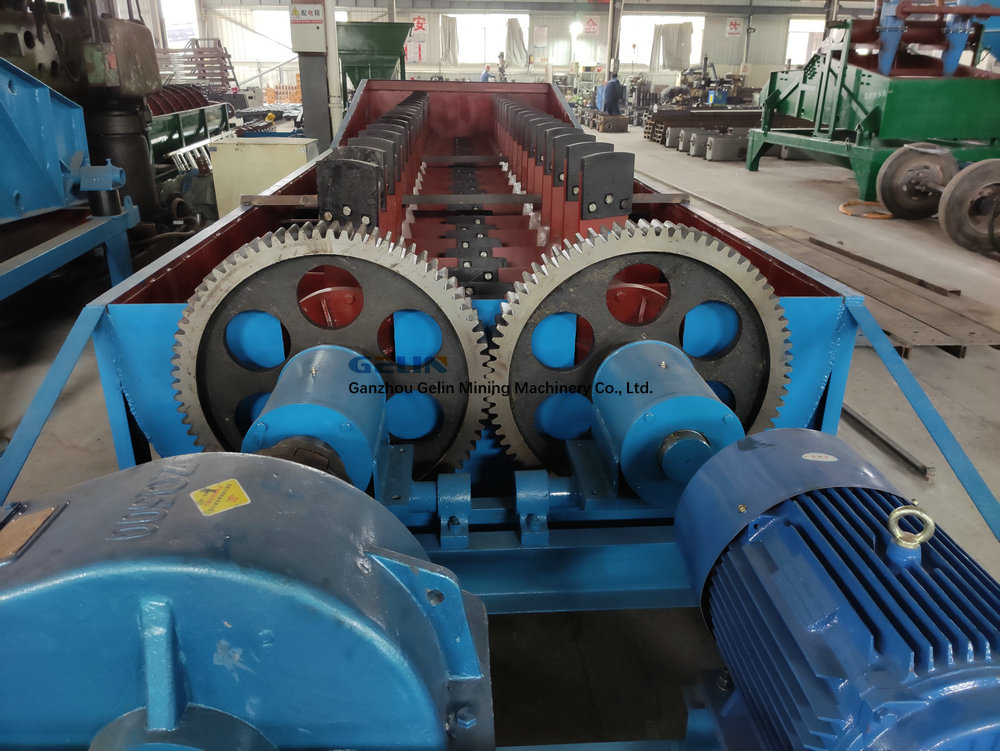

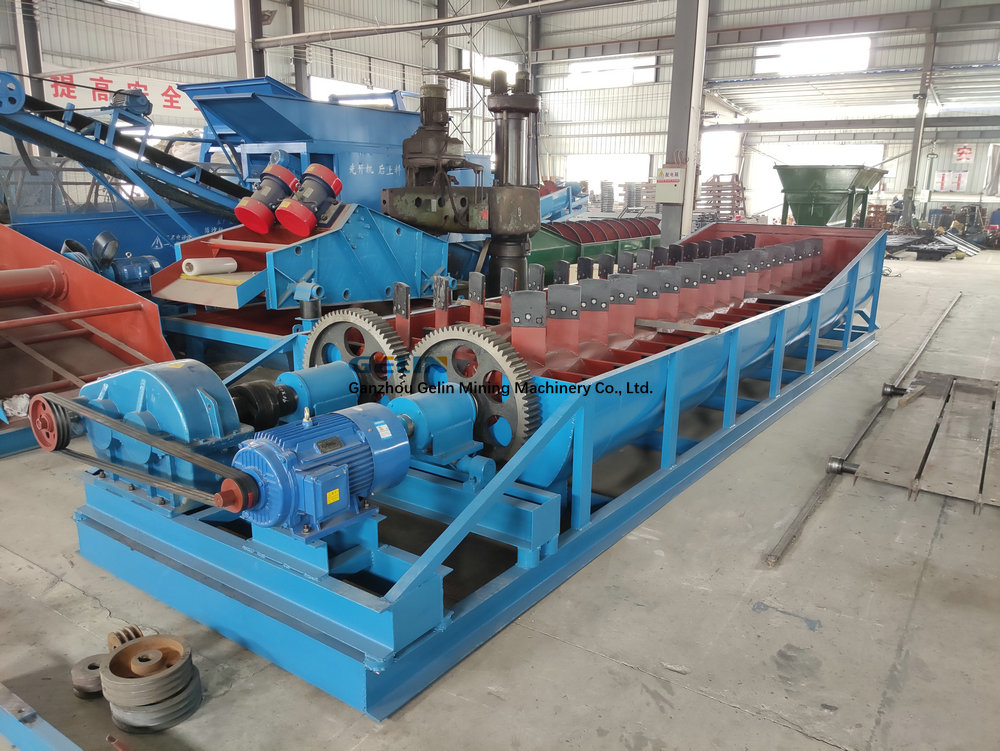

Pictures
