Dewatering Screens are specifically designed for dewatering material and sludge and produce bulk material which can be transported with standard means. They are also used to recover solid particles from liquids, muds or sludges. It can be used in coal preparation, mineral processing, power generation, sugar, salt and other industrial departments for dry-wet screening, dewatering, desliming and desliming of medium and fine-grained materials.
Features:
1.Effectively reduce the loss rate of fine sand and keep this rate at 5-10%.
2. Polyurethane Screen Mesh.longer service life than other types of screen meshes and a lower hole-blocking possibility.
3.Fine-particle material accounts for 85%-90% of the maximum discharge quantity that can be recoveredThe structure is reasonable, sturdy and durable.
4. Reduce the natural piling duration of fine materials since they can be transported directly to supply the market.
5. The solutions can be designed according to various requirements of customers.

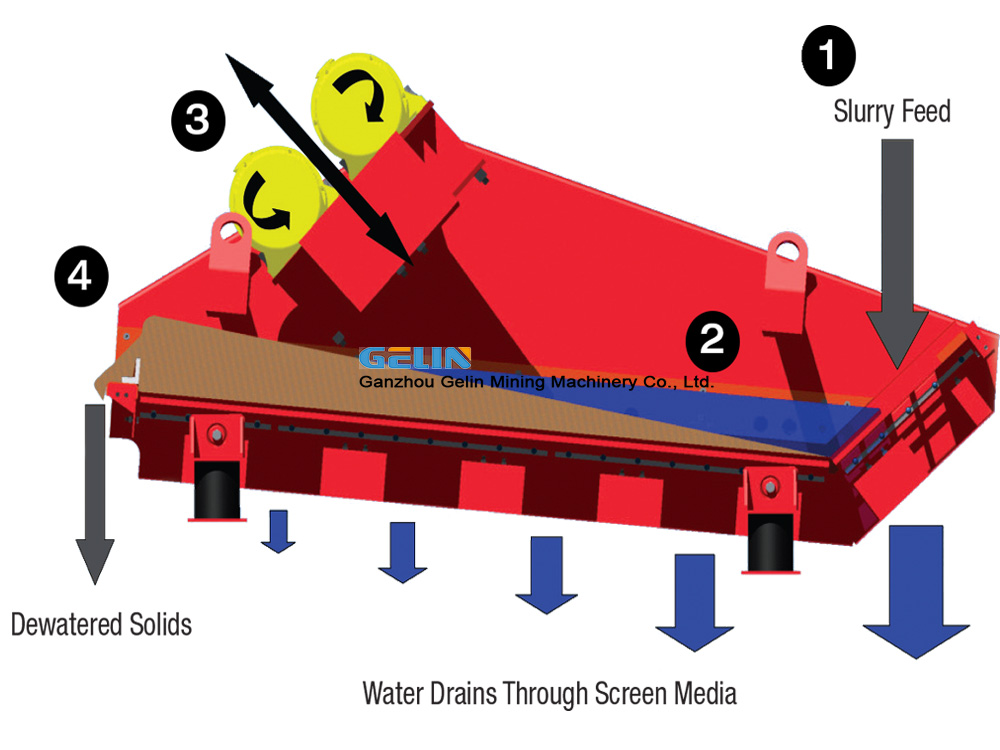

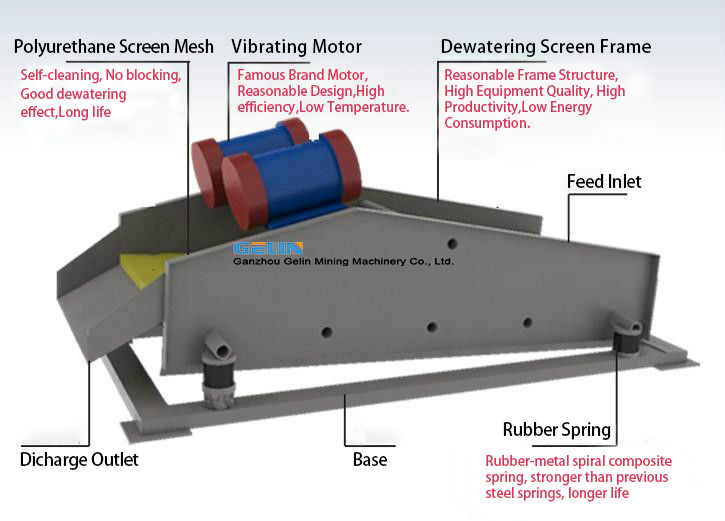

Structure & Working Principle:
Dewatering screen is driven by two vibrating motors, which makes the screen sieve move to-and-fro online to achieve the filtering purpose.With the vibration of the screen, the concentrated tailings materials are continuously thrown up and down on the screen, the materials are loosened and crashed to the sieve, the small size materials are filtered away from the sieve holes. Finally, it reaches the aim of classifying, dehydrating and desliming.
Parameter:
| Model | Layer | Mesh Size(mm) | Feeding Size(mm) | Capacity(t/h) | Double-Amplitude (mm) | Vibration Angle(°) | Motor Power(kw） |
| ZKB0936 | 1 | 0.5-13 | <100 | 4-40 | 6-8 | 45 | 3*2 |
| 2ZKB1020 | 2 | 0.5-25 | <100 | 5-60 | 6-8 | 45 | 3*2 |
| ZKB1025 | 1 | 0.5-25 | <100 | 5.5-60 | 6-8 | 45 | 3*2 |
| ZKB1236 | 1 | 0.5-25 | <100 | 9-100 | 6-8 | 45 | 5.5*2 |
| 2ZKB1236 | 2 | 0.5-50 | <100 | 16-150 | 6-8 | 45 | 5.5*2 |
| 2ZKB1437 | 2 | 0.5-50 | <100 | 24-200 | 6-8 | 45 | 5.5*2 |
| ZKB1756 | 1 | 0.5-50 | <300 | 16-300 | 6-8 | 45 | 11*2 |
| 2ZKB1756 | 2 | 0.5-50 | <300 | 25-400 | 6-8 | 45 | 11*2 |
| ZKB1836 | 1 | 0.5-50 | <300 | 18-400 | 6-8 | 45 | 11*2 |
| 2ZKB1848 | 2 | 0.5-80 | <300 | 27-600 | 6-8 | 45 | 11*2 |
| ZKB1856 | 1 | 0.5-80 | <300 | 30-500 | 6-8 | 45 | 11*2 |
| 2ZKB1856 | 2 | 0.5-80 | <300 | 45-600 | 6-8 | 45 | 15*2 |
| HFD1025 | 1 | 0.1-0.5 | <50 | 15 | 4-6 | 45 | 3*2 |
| HFD1230 | 1 | 0.1-0.5 | <50 | 20 | 4-6 | 45 | 3*2 |
| 2HFD1230 | 2 | 0.1-0.5 | <50 | 25 | 4-6 | 45 | 3*2 |
| HFD1236 | 1 | 0.1-0.5 | <50 | 25 | 4-6 | 45 | 5.5*2 |
| HFD1431 | 1 | 0.1-0.5 | <50 | 30 | 4-6 | 45 | 5.5*2 |
| HFD1531 | 1 | 0.1-0.5 | <50 | 35 | 4-6 | 45 | 5.5*2 |
| HFD1830 | 1 | 0.1-0.5 | <50 | 45 | 4-6 | 45 | 5.5*2 |

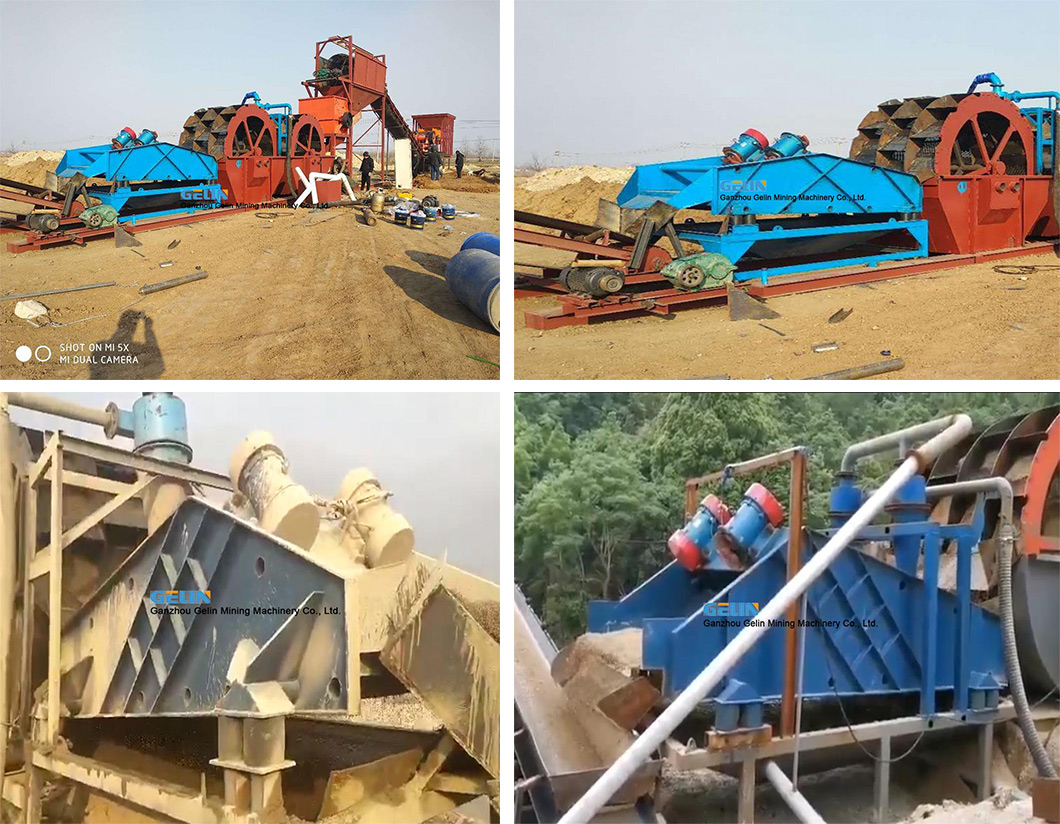

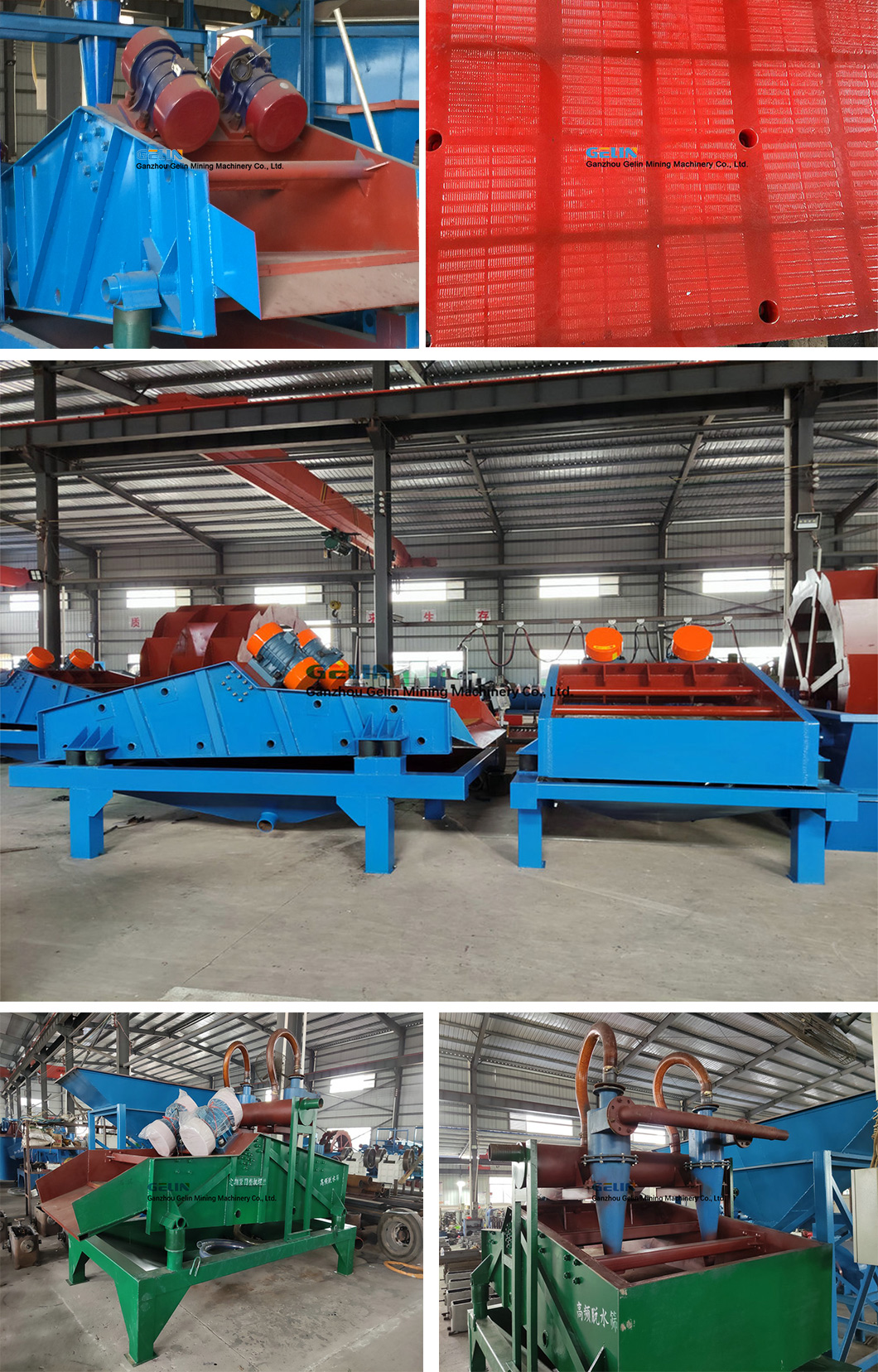

Pictures:
