Sand Making Machine is also called Compound sand crusher ,it is a new product optimized and designed by our company combining fine crushing technology. It is used to crush various medium-hard ores like fine-crush dolomite, coke precious stones, lead-zinc, serpentine, blast furnace slag, coal gangue , phosphate rock materials,clinkers and can be widely used in mining, metallurgy, refractories, cement, coal, Glass, ceramics, electric power and other industries.
Features
1.Large crushing ratio, discharging particle size can be adjusted arbitrarily.
Parameter
| Model | SC-800 | SC-1000 | SC-1250 | SC-1500 | SC-1750 |
| Rotor Diameter (mm) | 650 | 800 | 100 | 1250 | 1560 |
| Drum Length(mm) | 800 | 850 | 850 | 100 | 1410 |
| Mainshaft Speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
| Feeding Size(mm) | 50 | 70 | 100 | 100 | 100 |
| Output Size(mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
| Motor Power(kw) | 30 | 55 | 75 | 110 | 132 |
| Motor Speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
| Dimension(L*W*H)(mm) | 2200×860×1980 | 2700*1160*2000 | 2800×1400×2730 | 3100×1900×2300 | 3350×2100×2800 |
| Weight(t) | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |

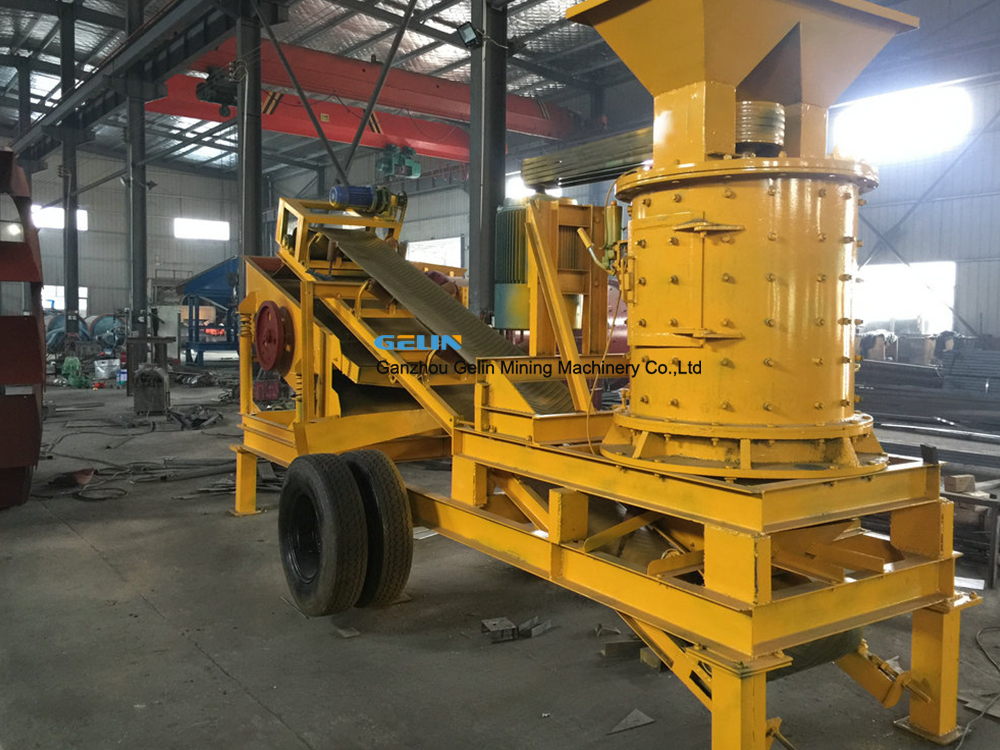

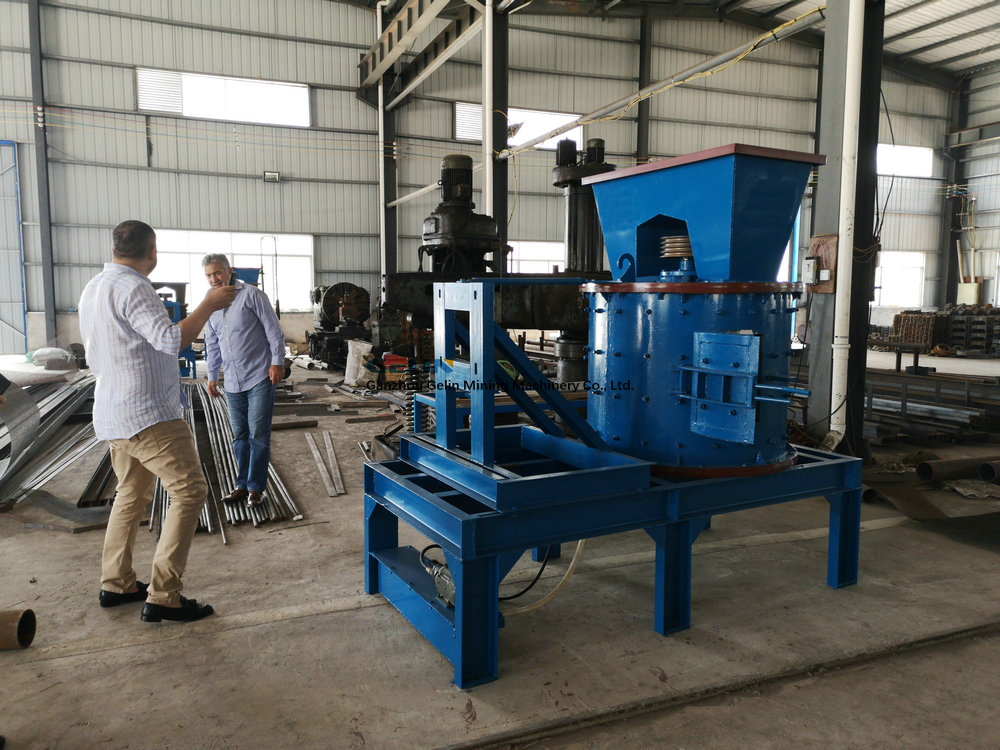

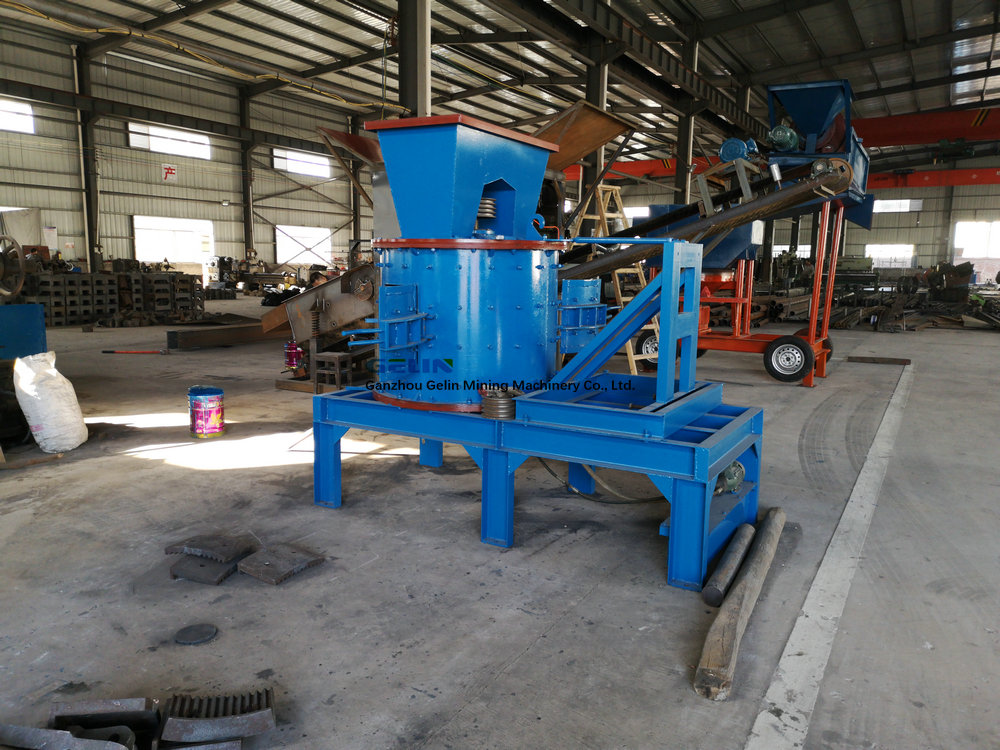

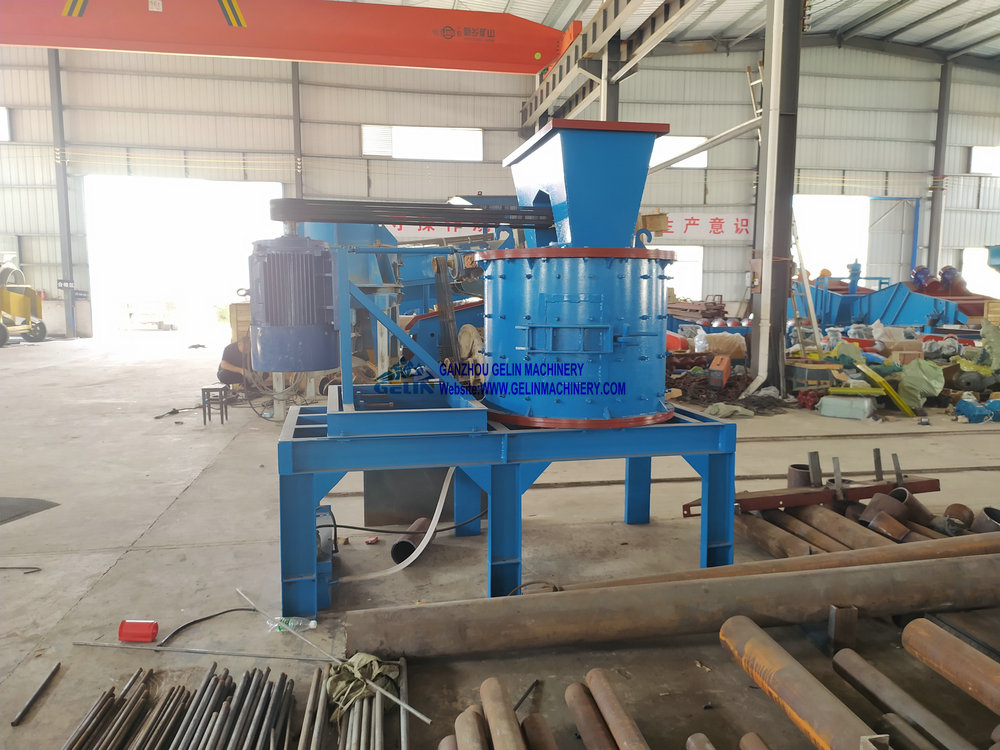

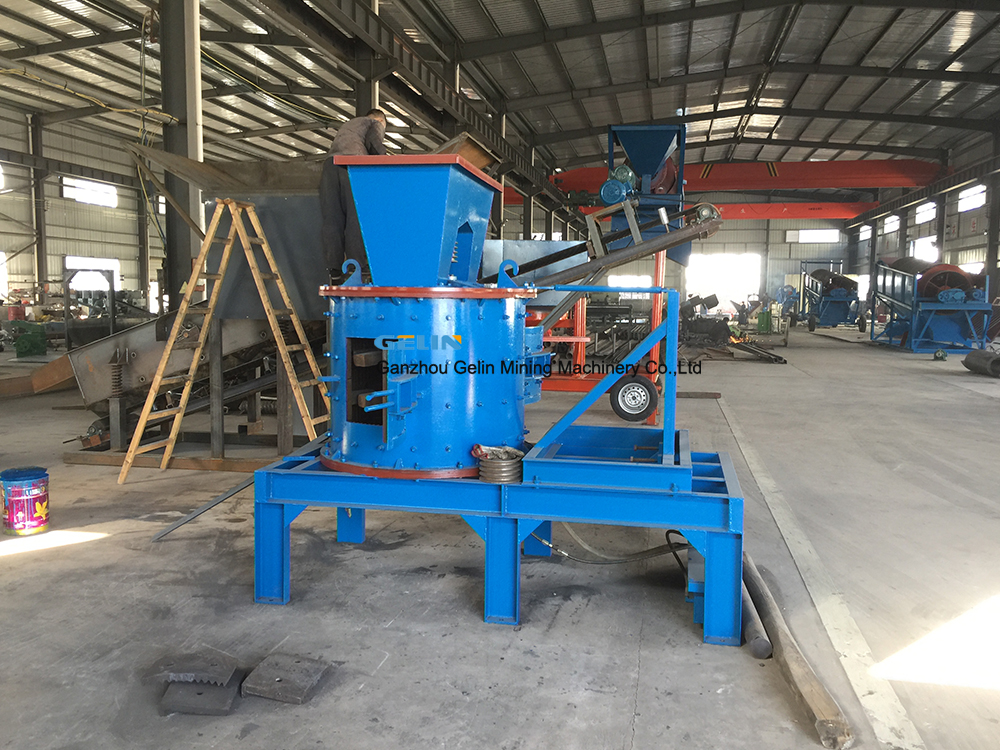

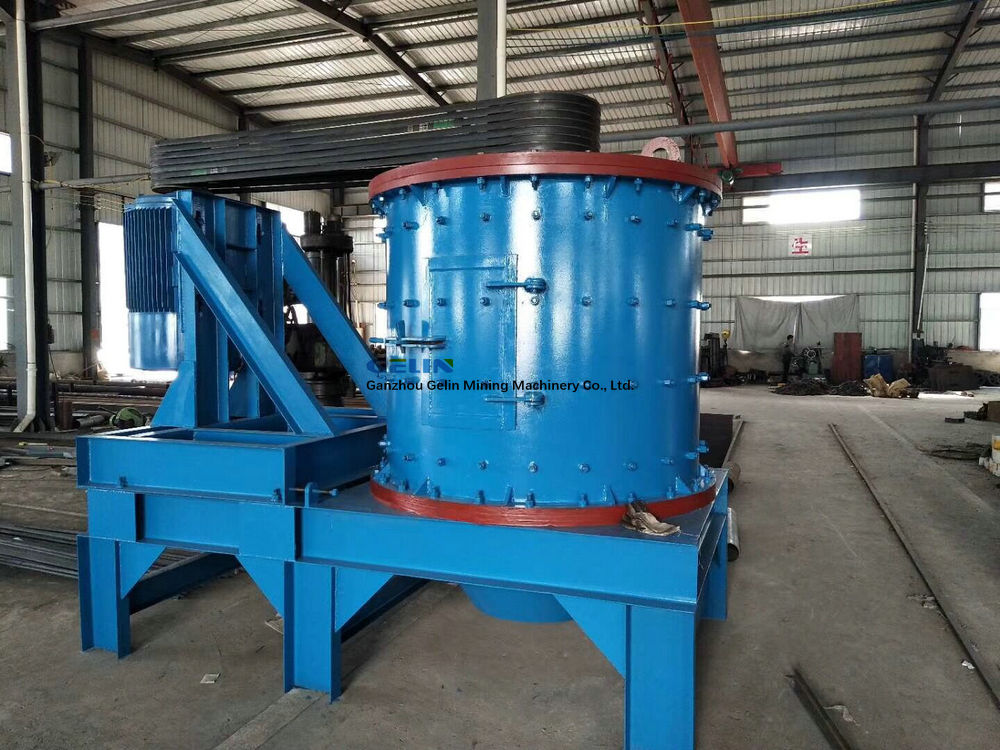

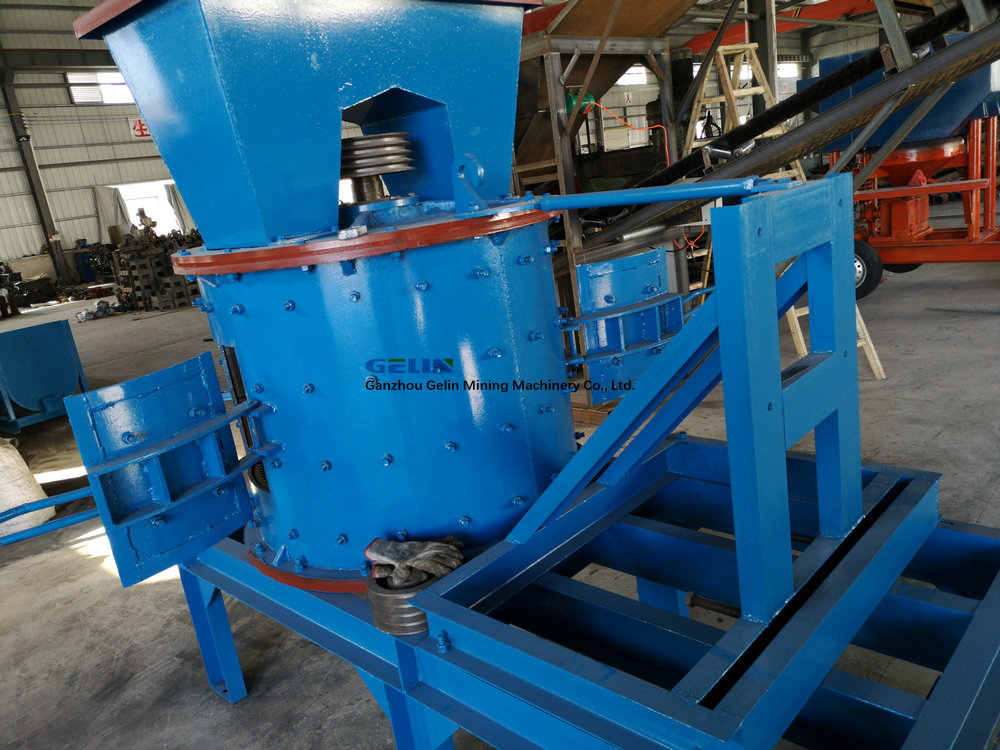

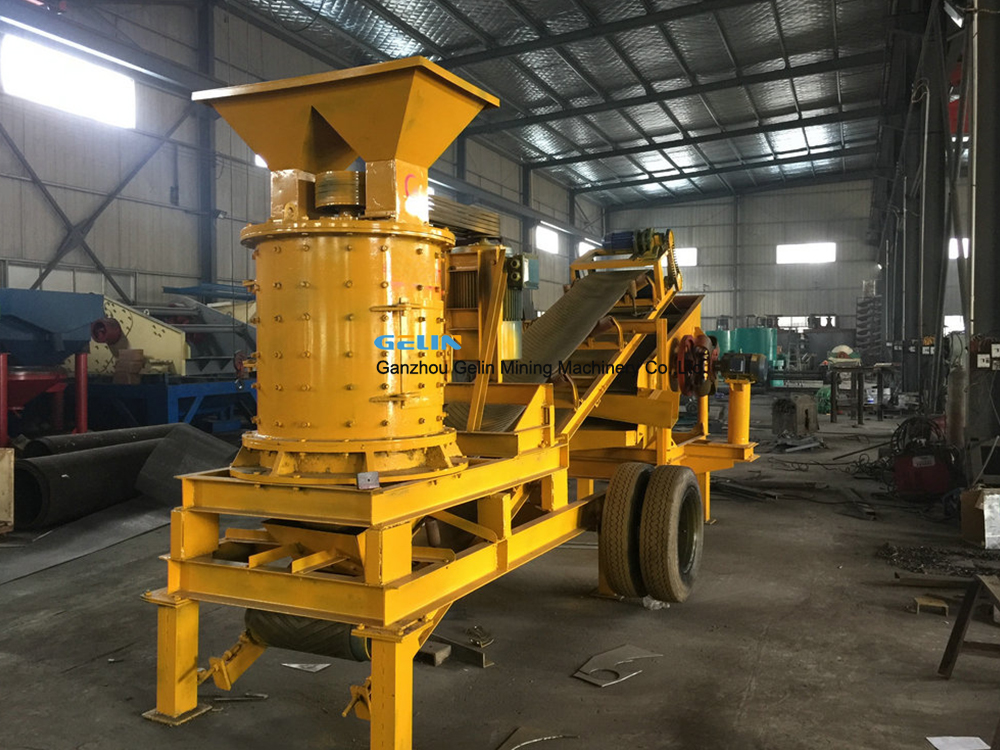

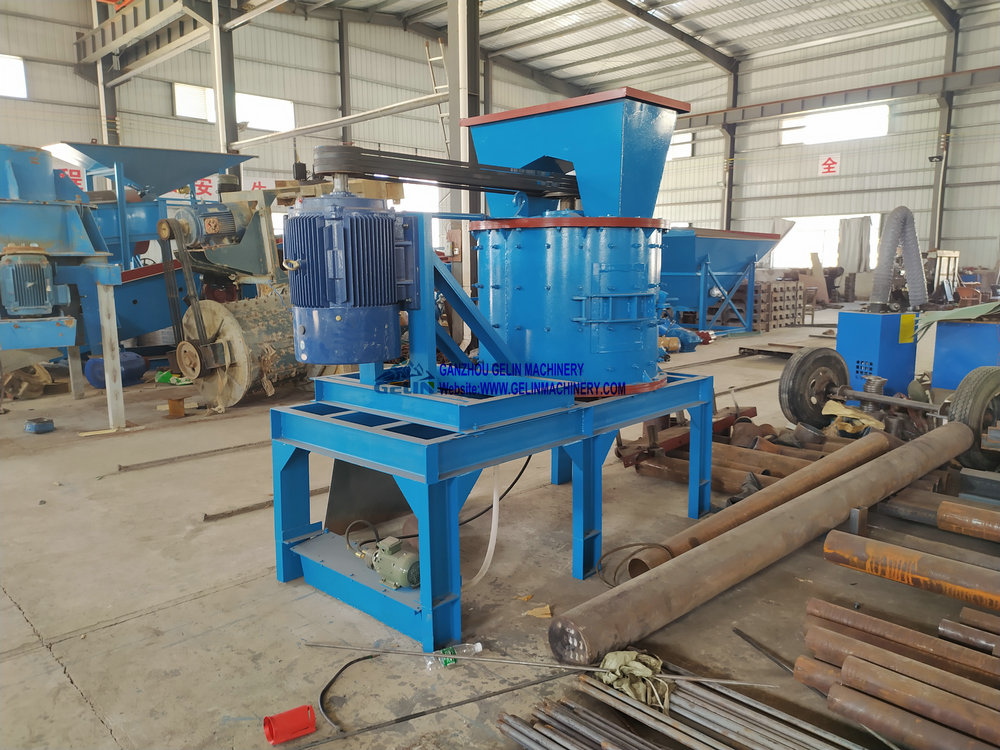

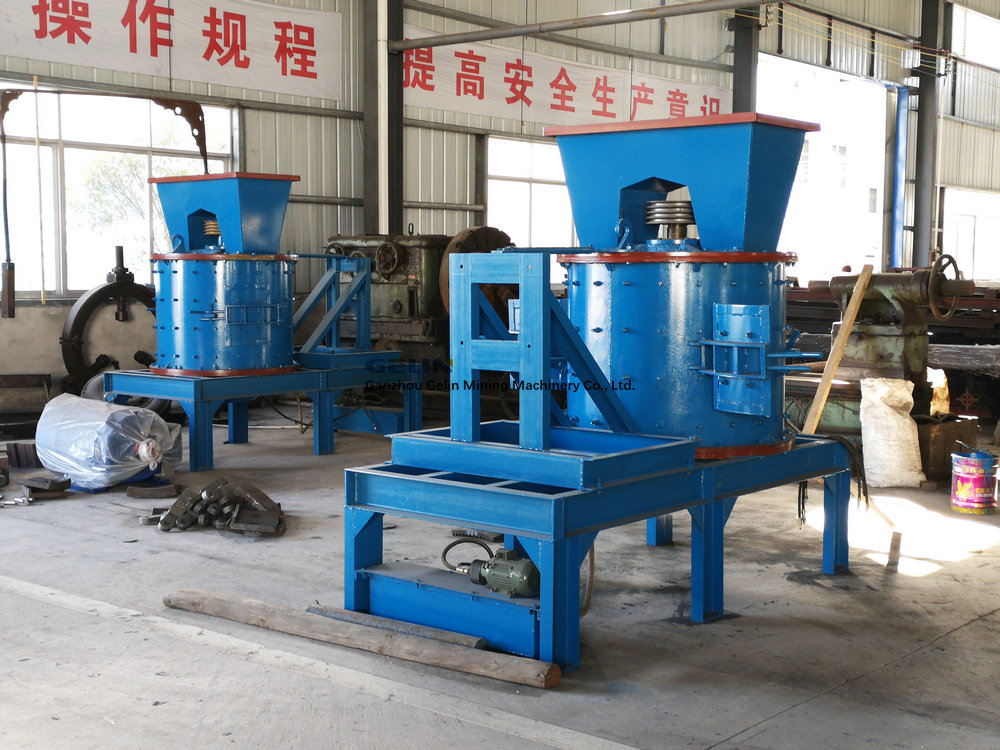

Pictures
